Barometric Pressure Sensor: Locations

Powertrain Component Views

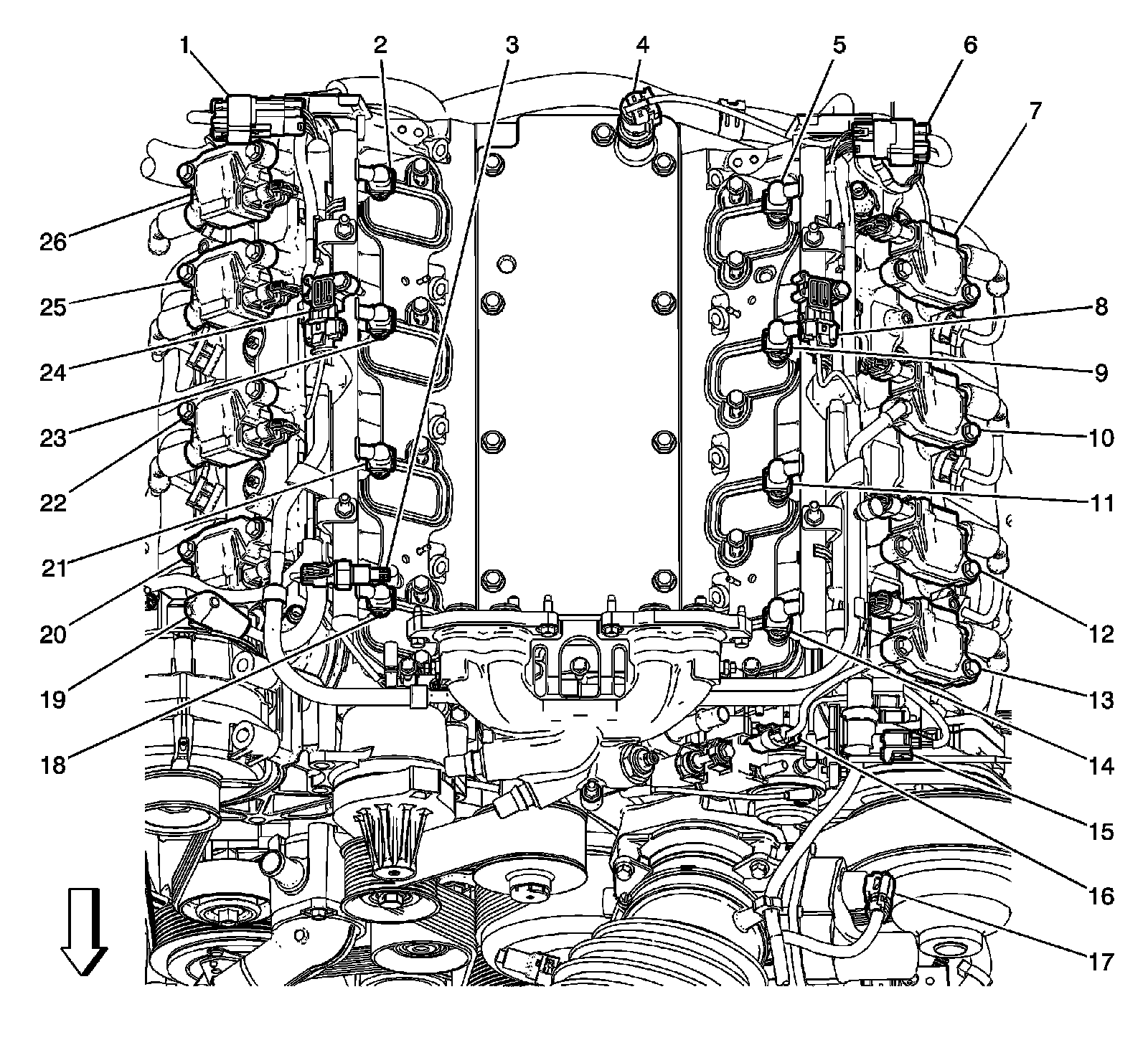

Top of Engine Components (LS9)




1 - X149
2 - Fuel Injector 8
3 - Intake Air Temperature (IAT) Sensor 2
4 - Engine Oil Pressure (EOP) Sensor
5 - Fuel Injector 7
6 - X150
7 - Ignition Coil 7
8 - Manifold Absolute Pressure (MAP) Sensor
9 - Fuel Injector 5
10 - Ignition Coil 5
11 - Fuel Injector 3
12 - Ignition Coil 3
13 - Ignition Coil 1
14 - Fuel Injector 1
15 - Supercharger Bypass Valve Solenoid (JL9)
16 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
17 - Throttle Body
18 - Fuel Injector 2
19 - Generator X2
20 - Ignition Coil 2
21 - Fuel Injector 4
22 - Ignition Coil 4
23 - Fuel Injector 6
24 - Barometric Pressure (BARO) Sensor
25 - Ignition Coil 6
26 - Ignition Coil 8
