Oxygen Sensor: Diagrams




Component Connector End Views

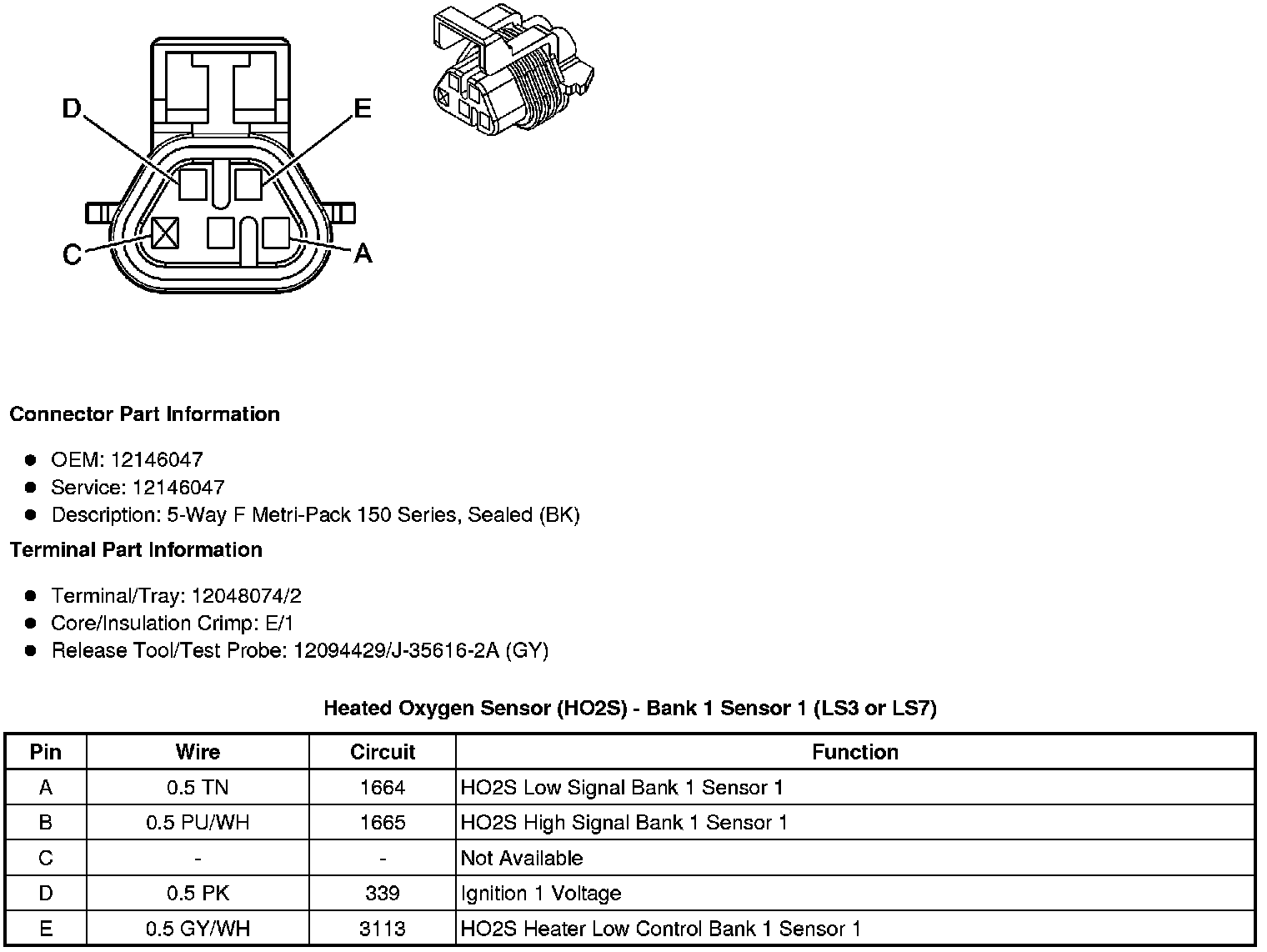

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LS3 or LS7)

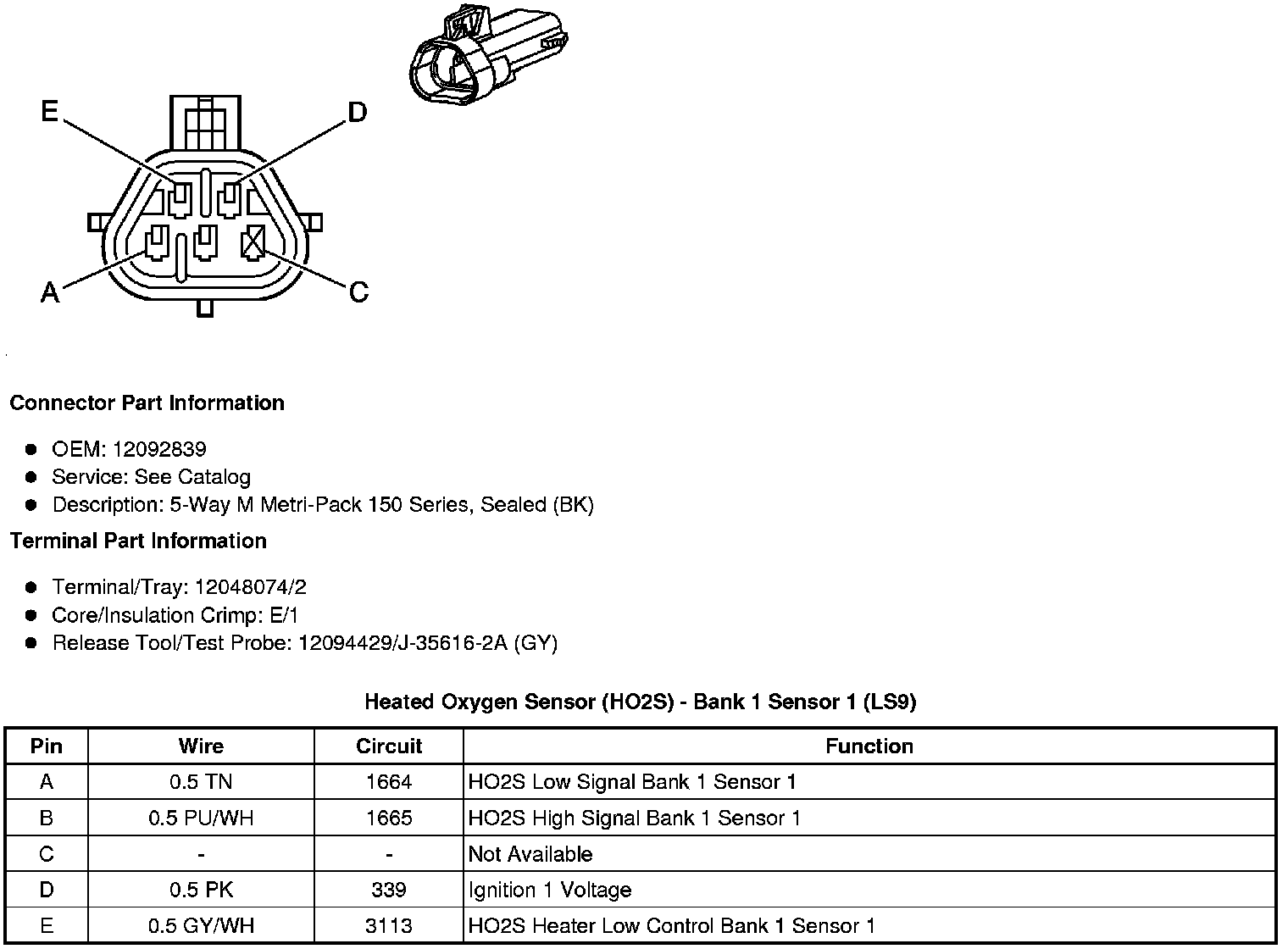

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LS9)





Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2

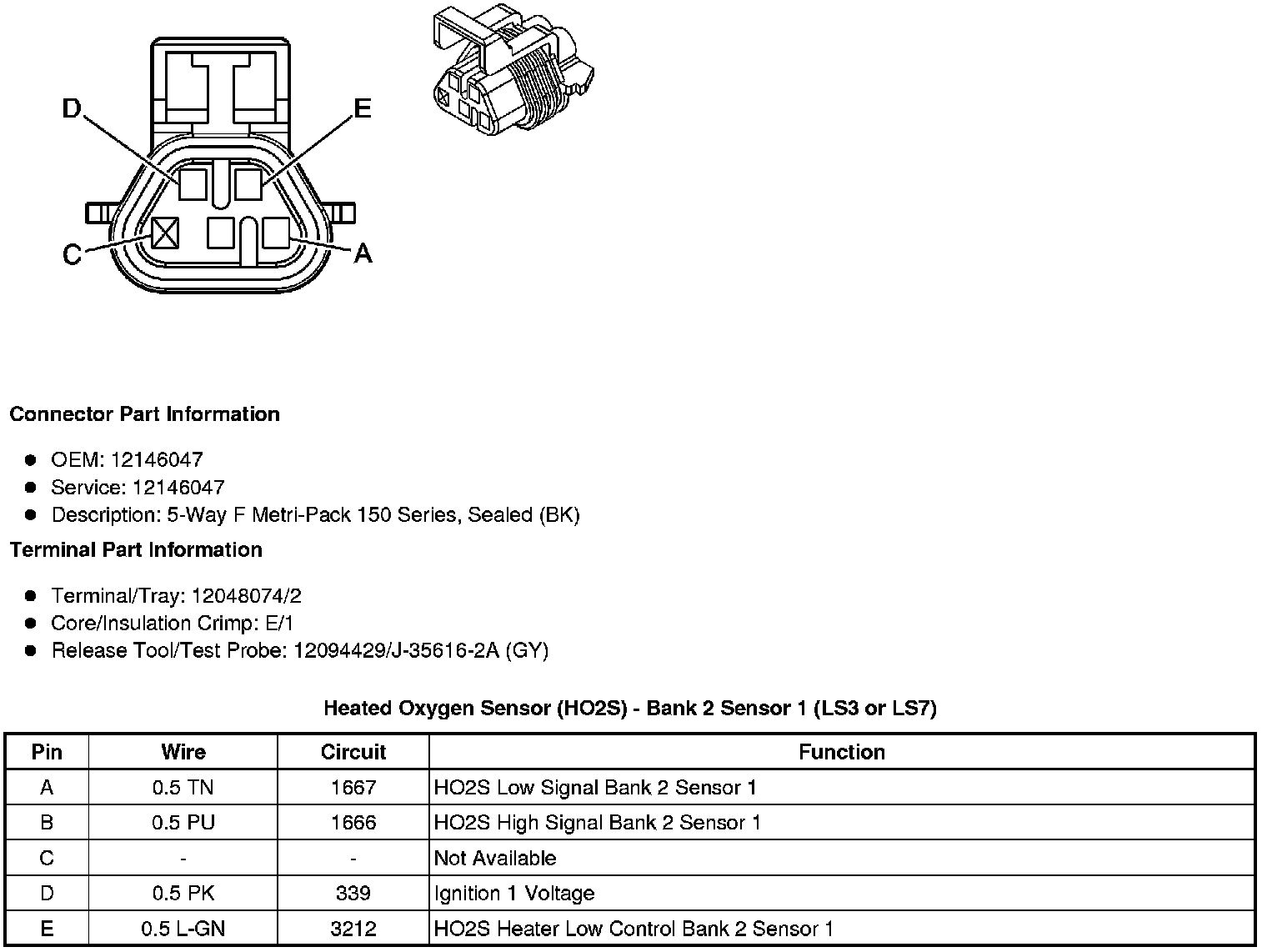

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LS3 or LS7)

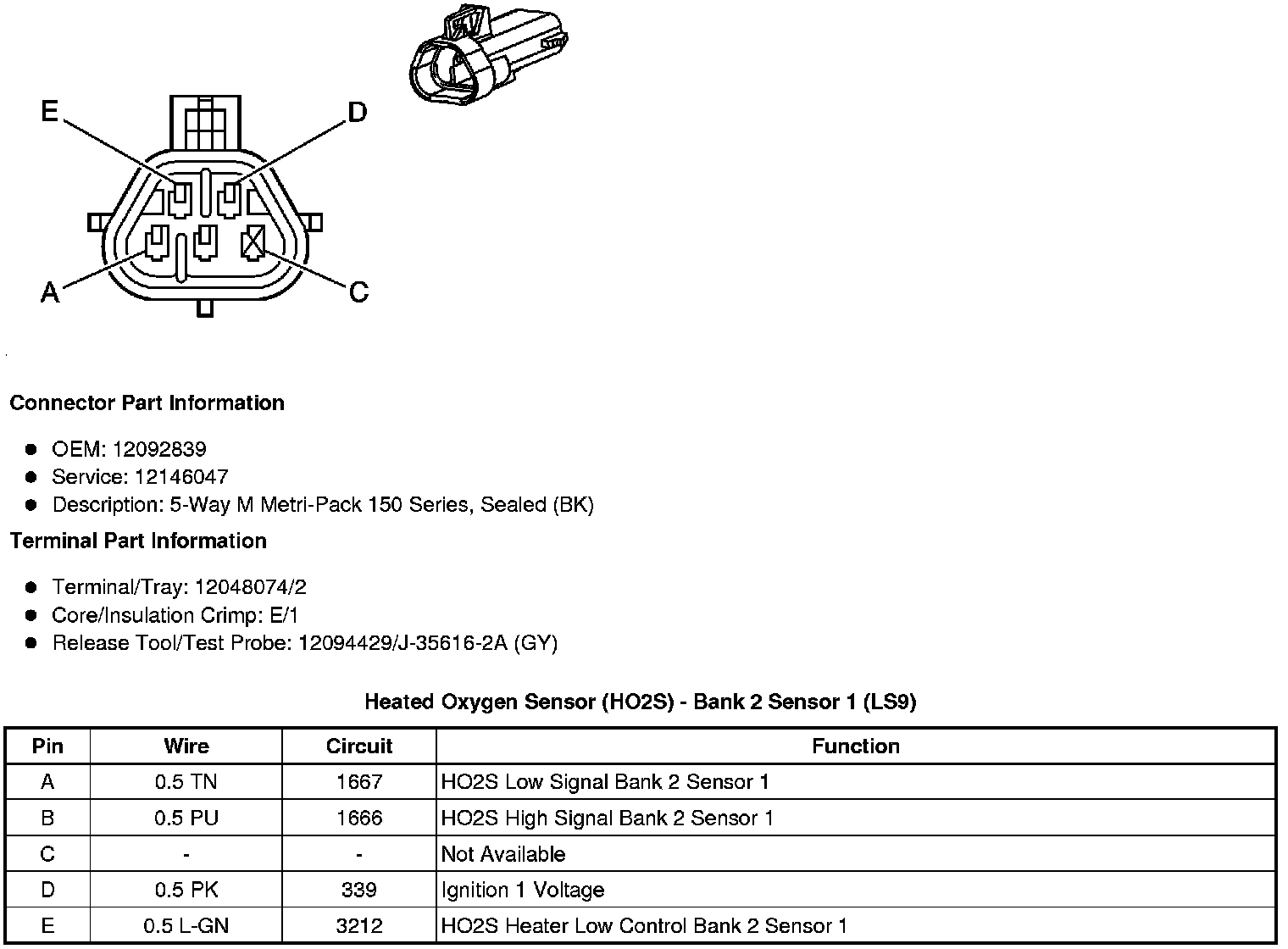

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LS9)

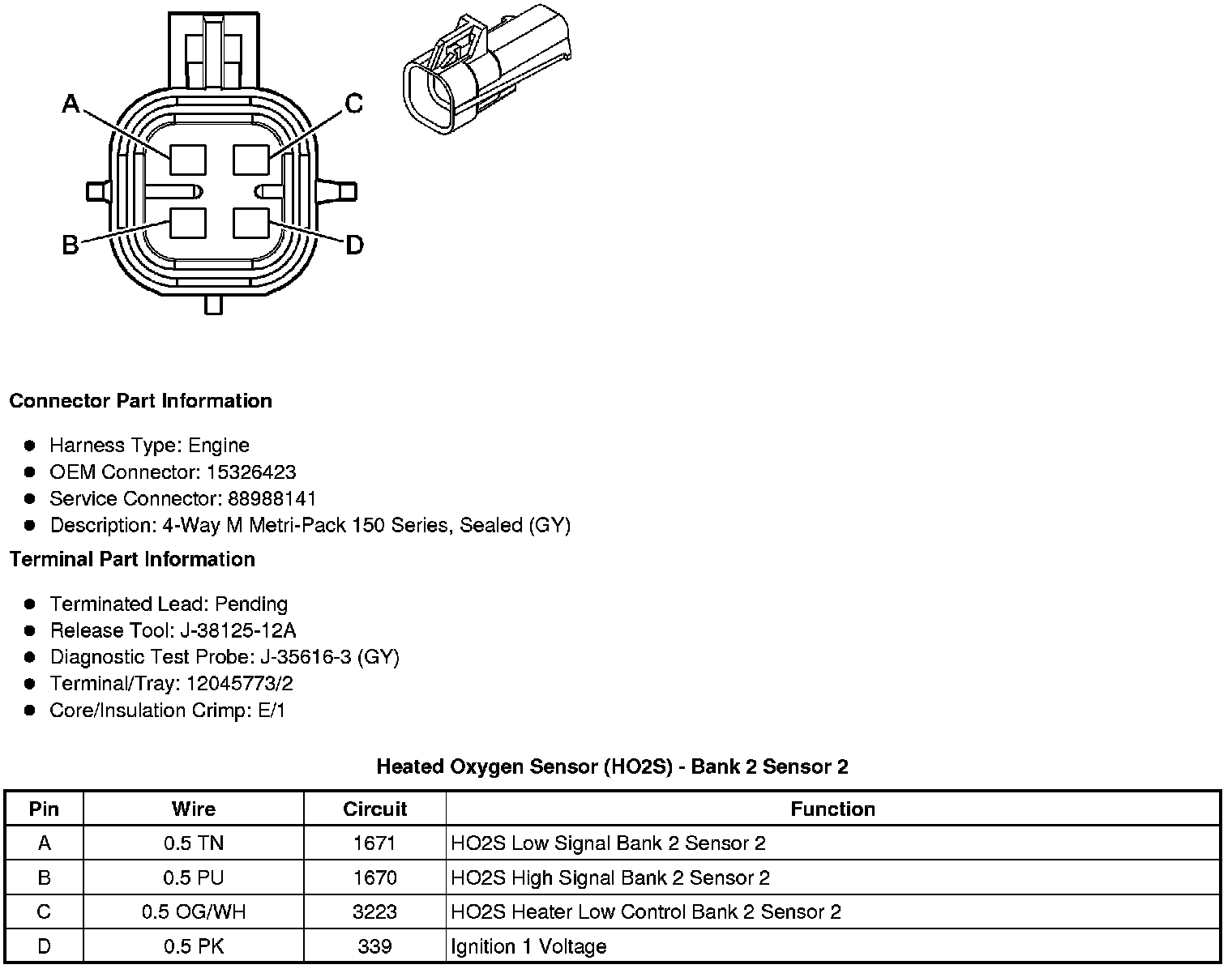

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
