Memory Positioning Module: Locations

Passenger Compartment/Roof Component Views

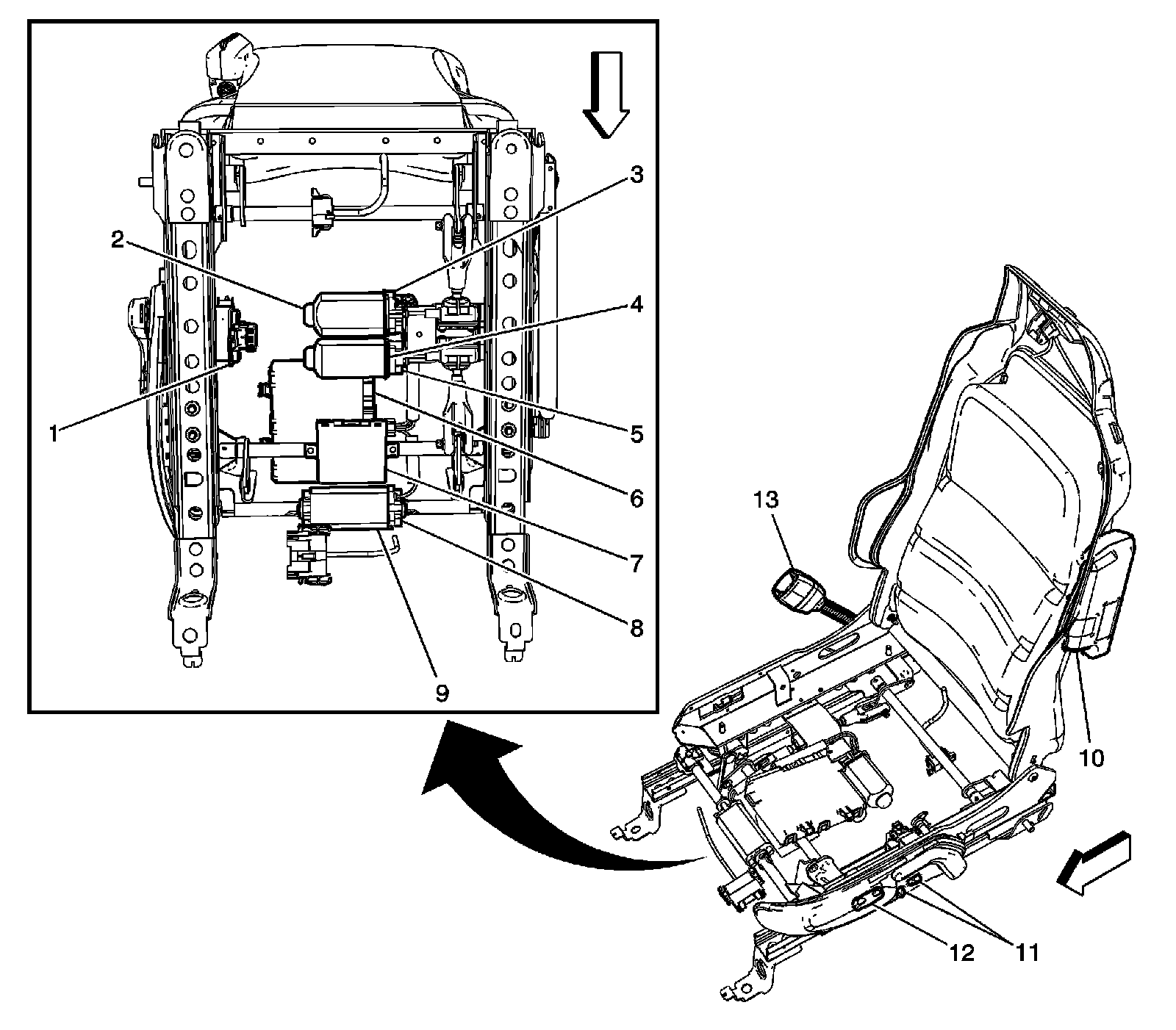

Driver Seat Components




1 - Inflatable Restraint Seat Position Sensor - Driver
2 - Seat Rear Vertical Motor - Driver
3 - Seat Rear Vertical Motor Position Sensor - Driver (AAB)
4 - Seat Front Vertical Motor - Driver (AAB)
5 - Seat Front Vertical Motor Position Sensor - Driver (AAB)
6 - Memory Seat Module - Driver (AAB)
7 - Heated Seat Control Module - Driver (KA1)
8 - Seat Horizontal Motor Position Sensor - Driver (AAB)
9 - Seat Horizontal Motor - Driver
10 - Inflatable Restraint Side Impact Module - Left
11 - Seat Lumbar Adjuster Switch - Driver
12 - Seat Adjuster Switch - Driver
13 - Seat Belt Pretensioner - Driver
