Active Exhaust System Control Module
Component Connector End Views
Exhaust Tail Pipe Flow Valve Control Module X1 (LS7, LS9 or LS3 with NPP)
Exhaust Tail Pipe Flow Valve Control Module X2 (LS7, LS9 or LS3 with NPP)
Component Connector End Views

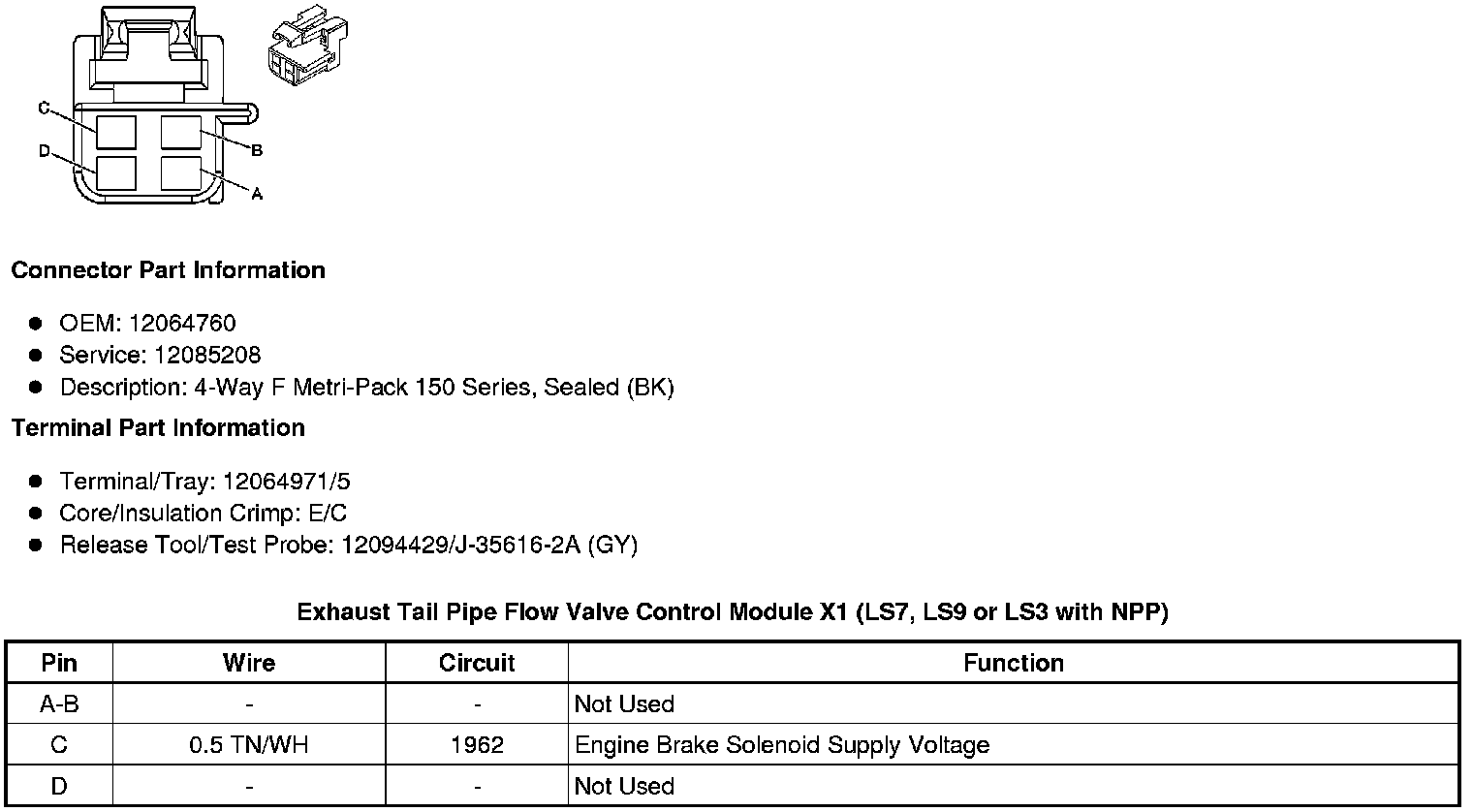

Exhaust Tail Pipe Flow Valve Control Module X1 (LS7, LS9 or LS3 with NPP)

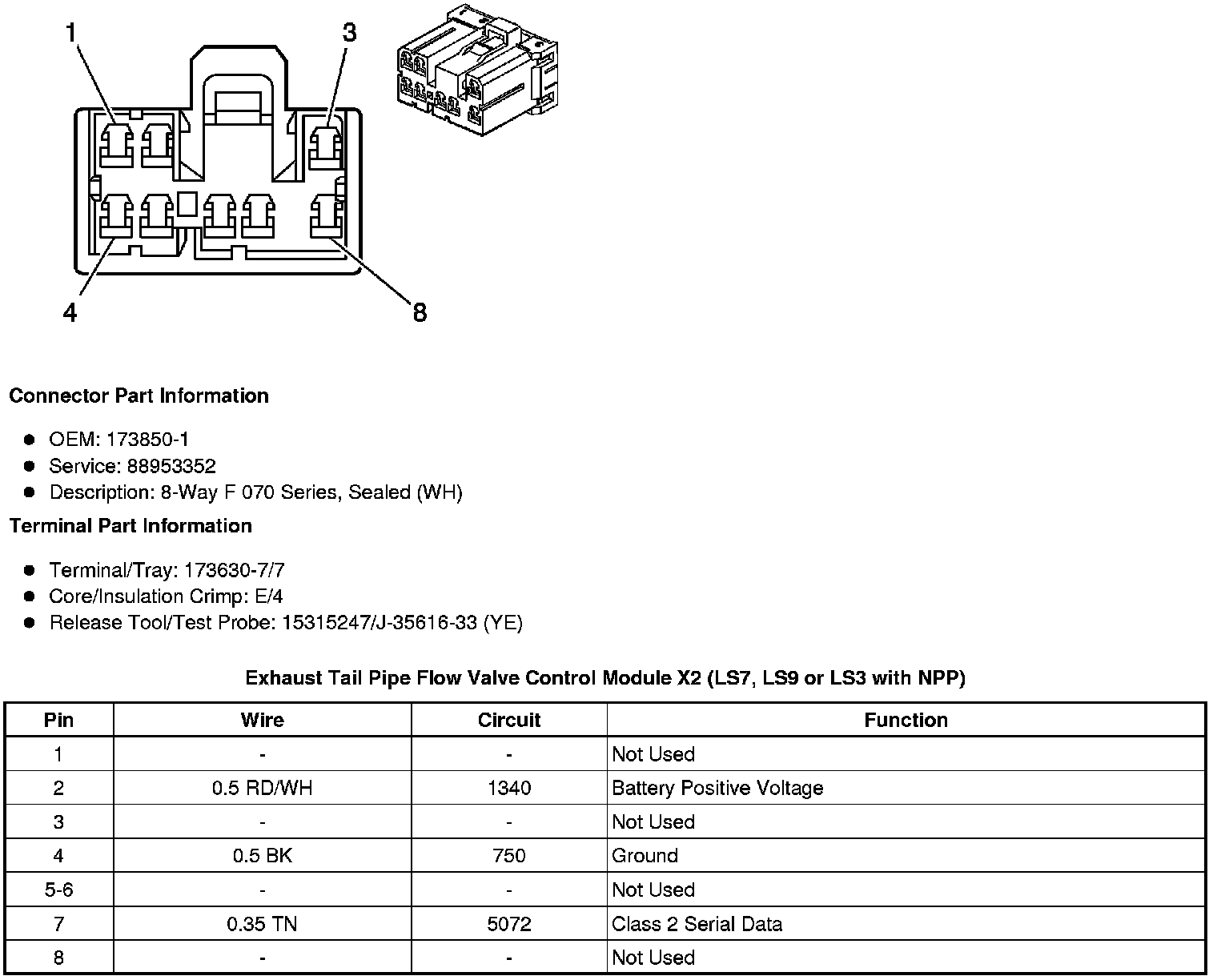

Exhaust Tail Pipe Flow Valve Control Module X2 (LS7, LS9 or LS3 with NPP)
