Antenna Control Module




Component Connector End Views

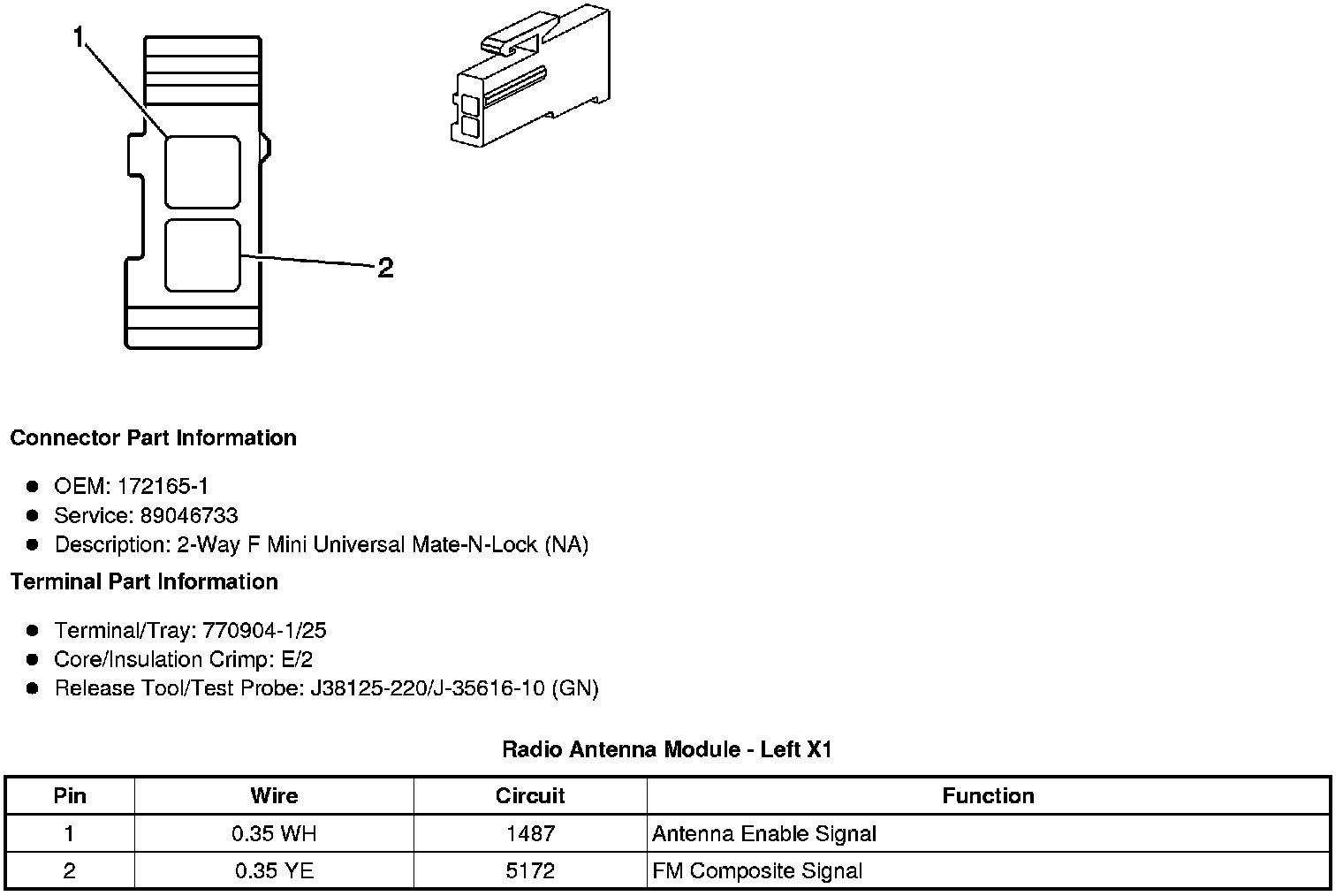

Radio Antenna Module - Left X1

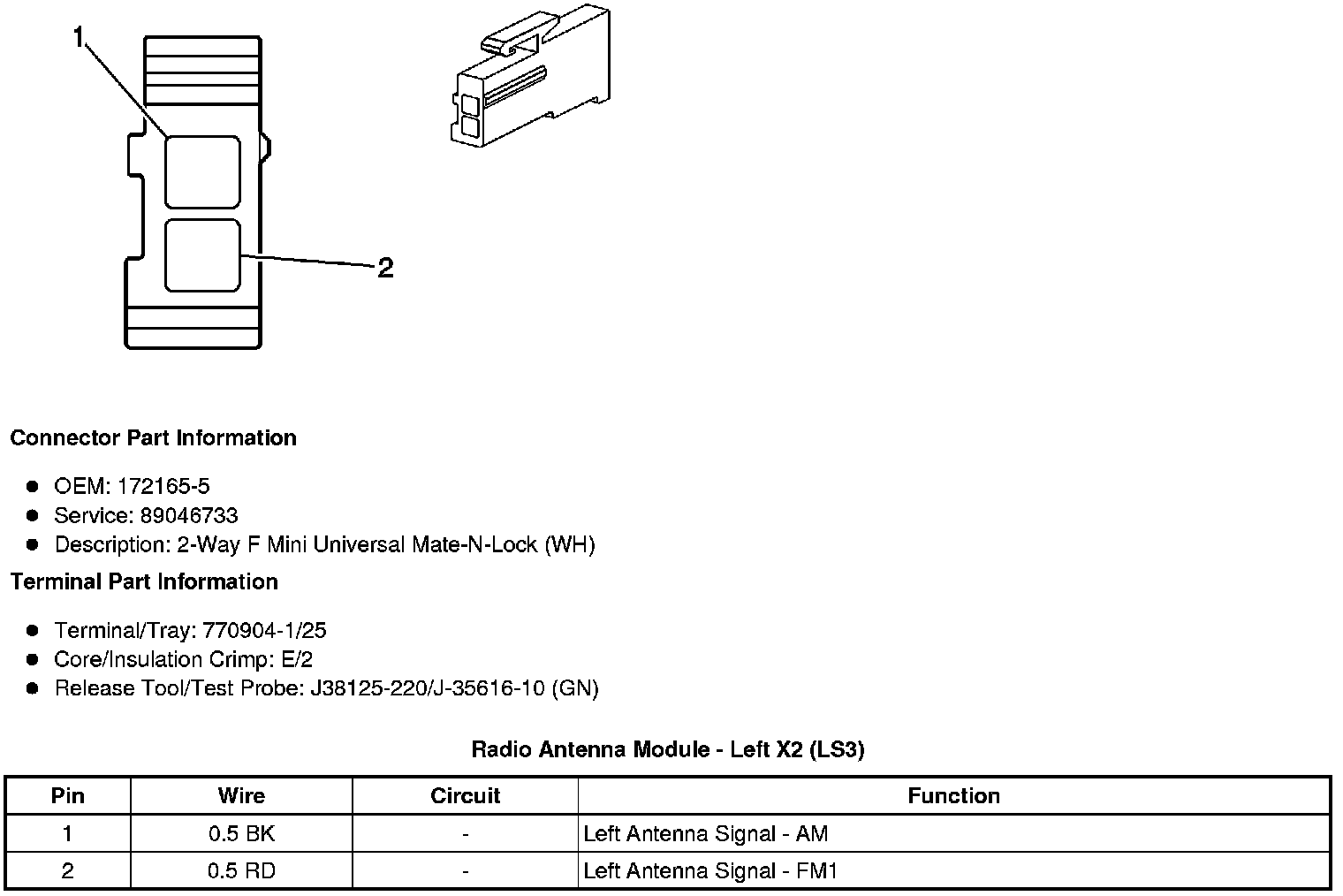

Radio Antenna Module - Left X2 (LS3)

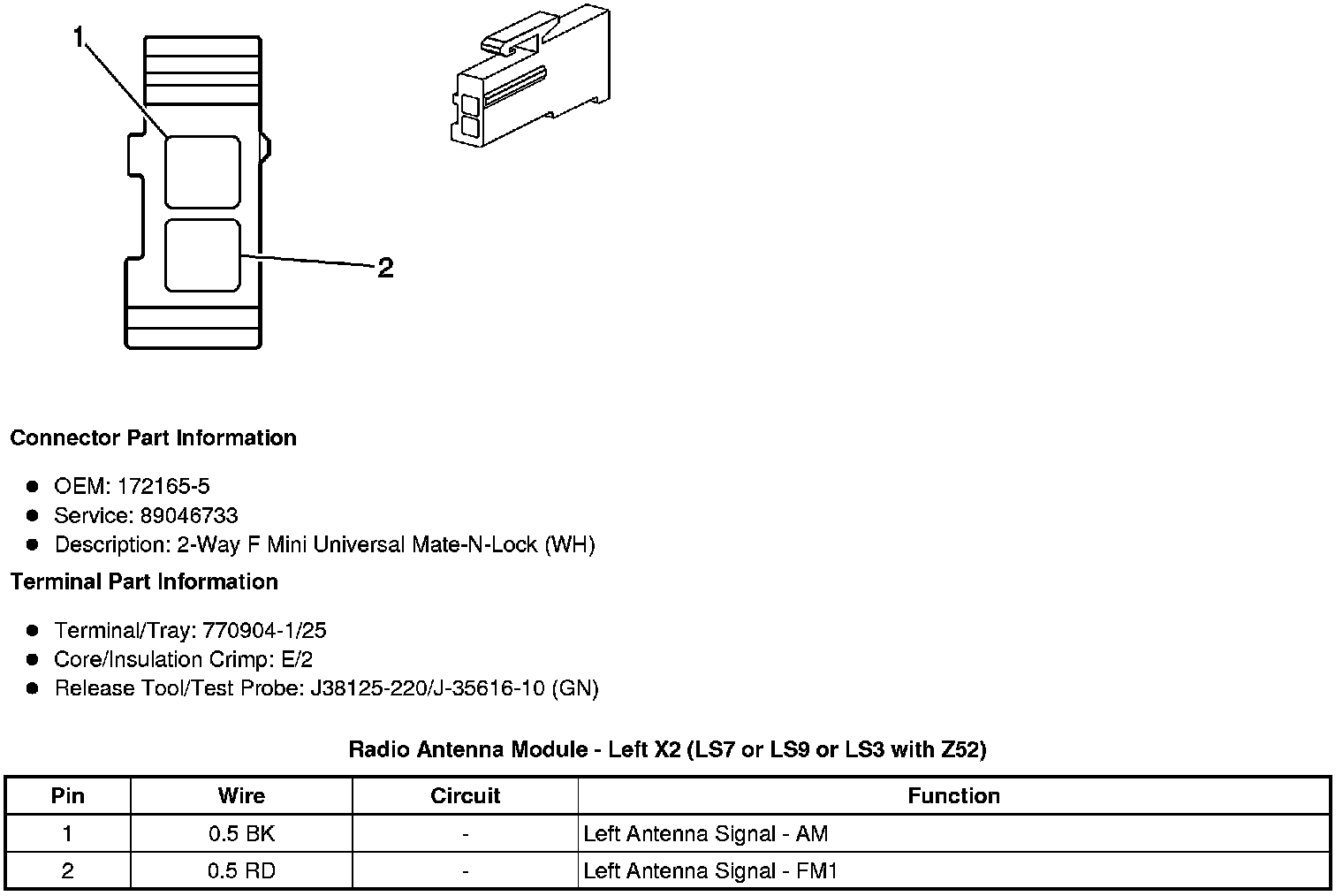

Radio Antenna Module - Left X2 (LS7 or LS9 or LS3 with Z52)

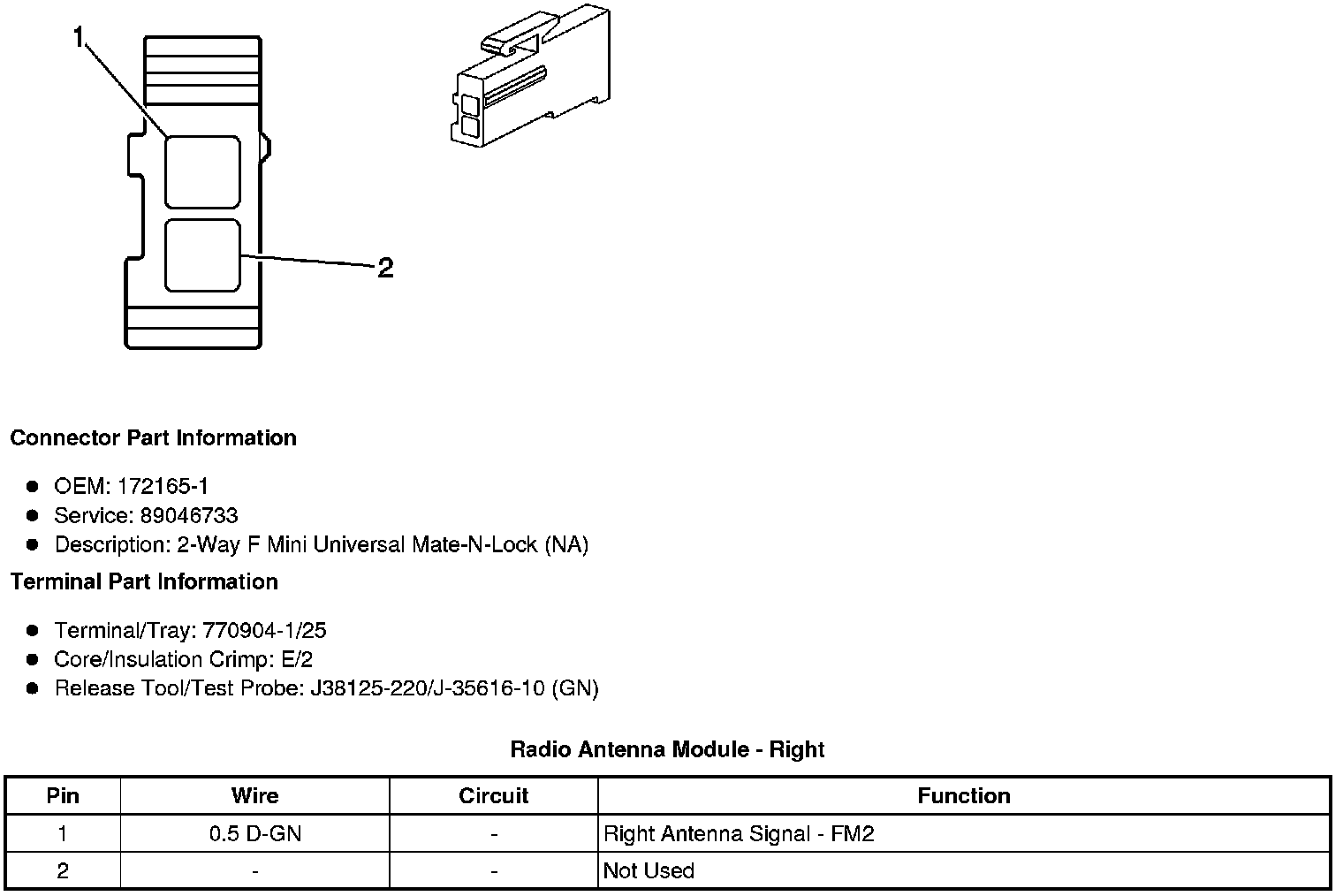

Radio Antenna Module - Right
