Fuel Injector




Component Connector End Views

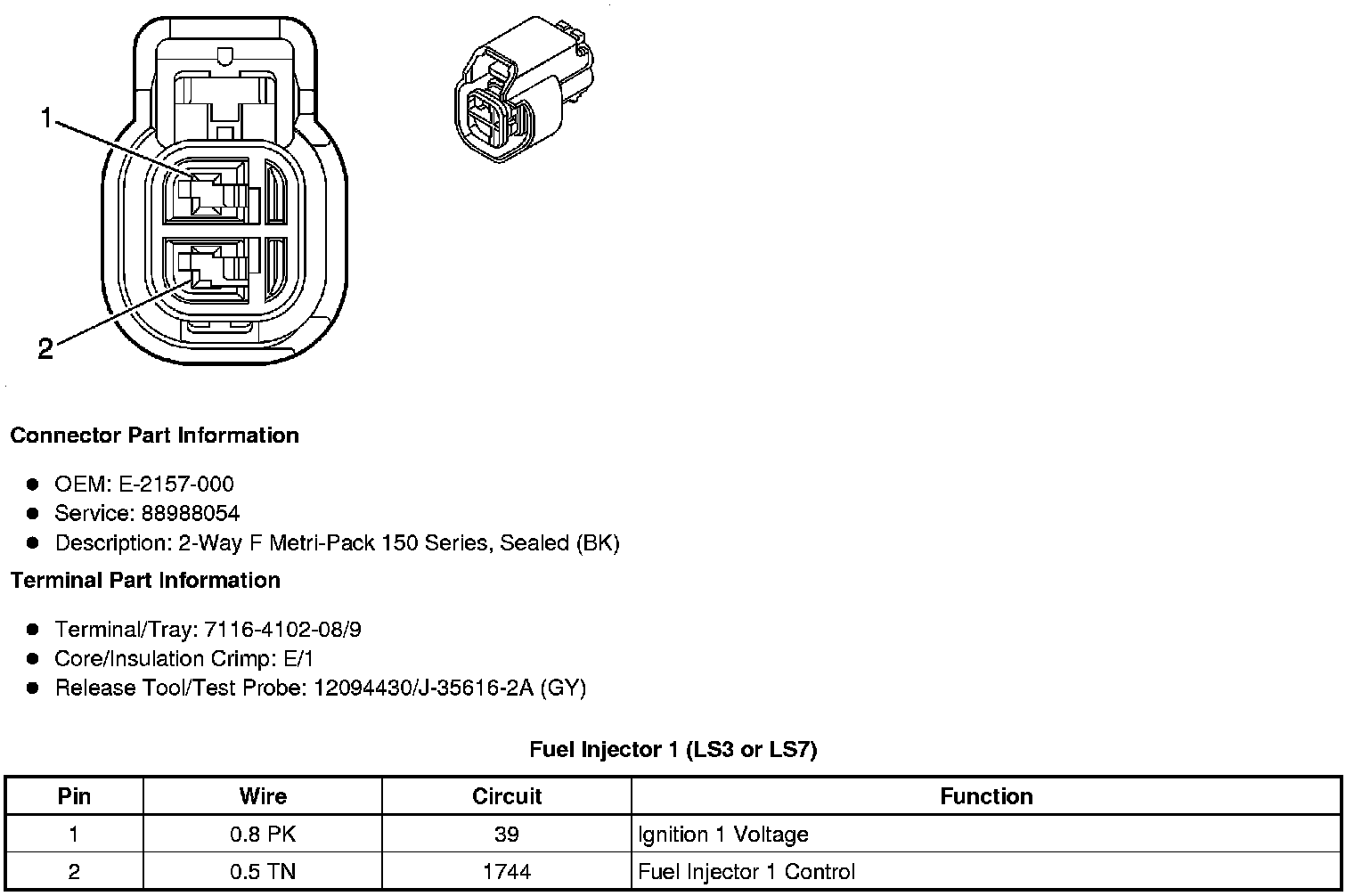

Fuel Injector 1 (LS3 or LS7)

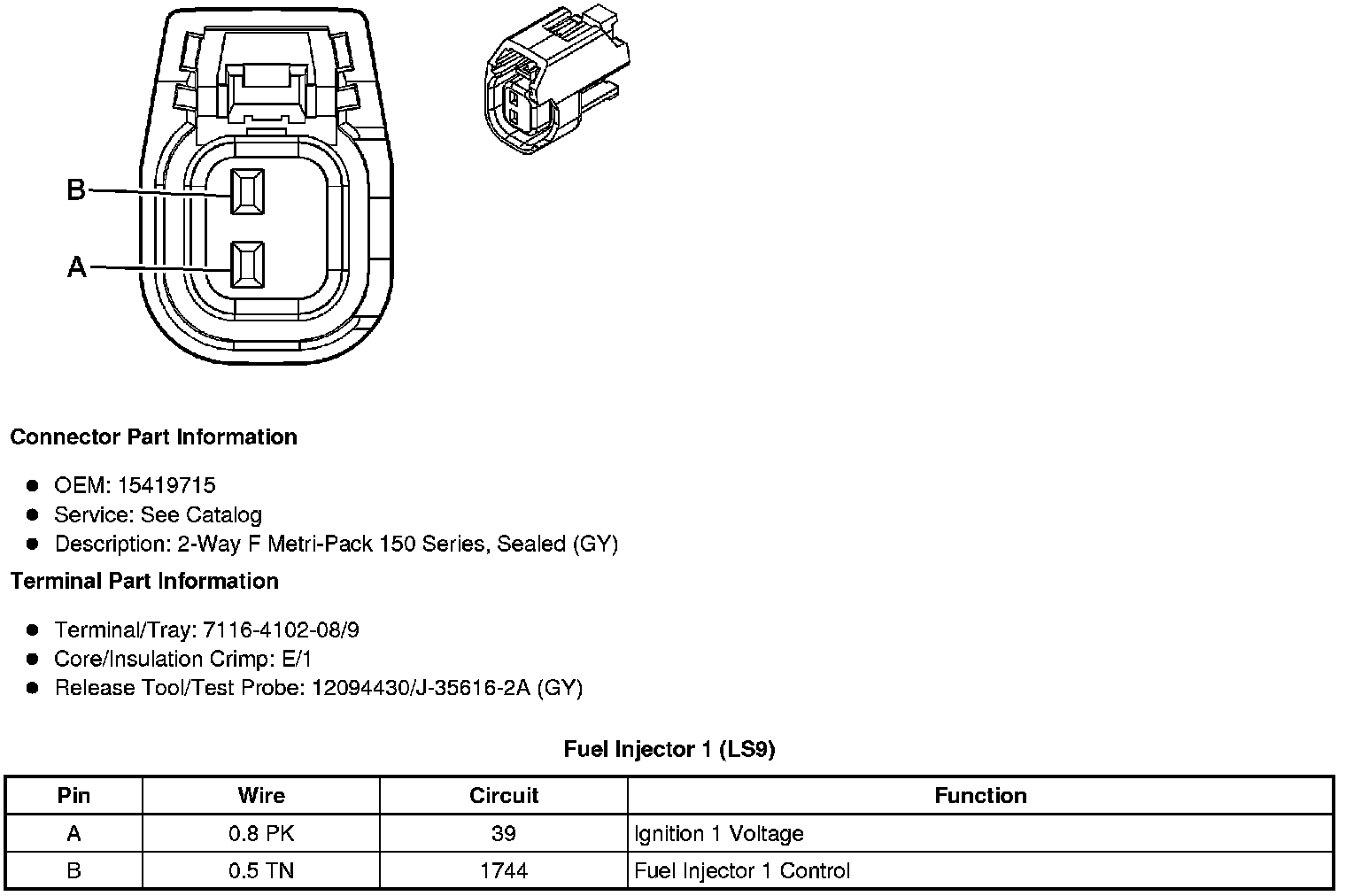

Fuel Injector 1 (LS9)





Fuel Injector 2 (LS3 or LS7)





Fuel Injector 2 (LS9)

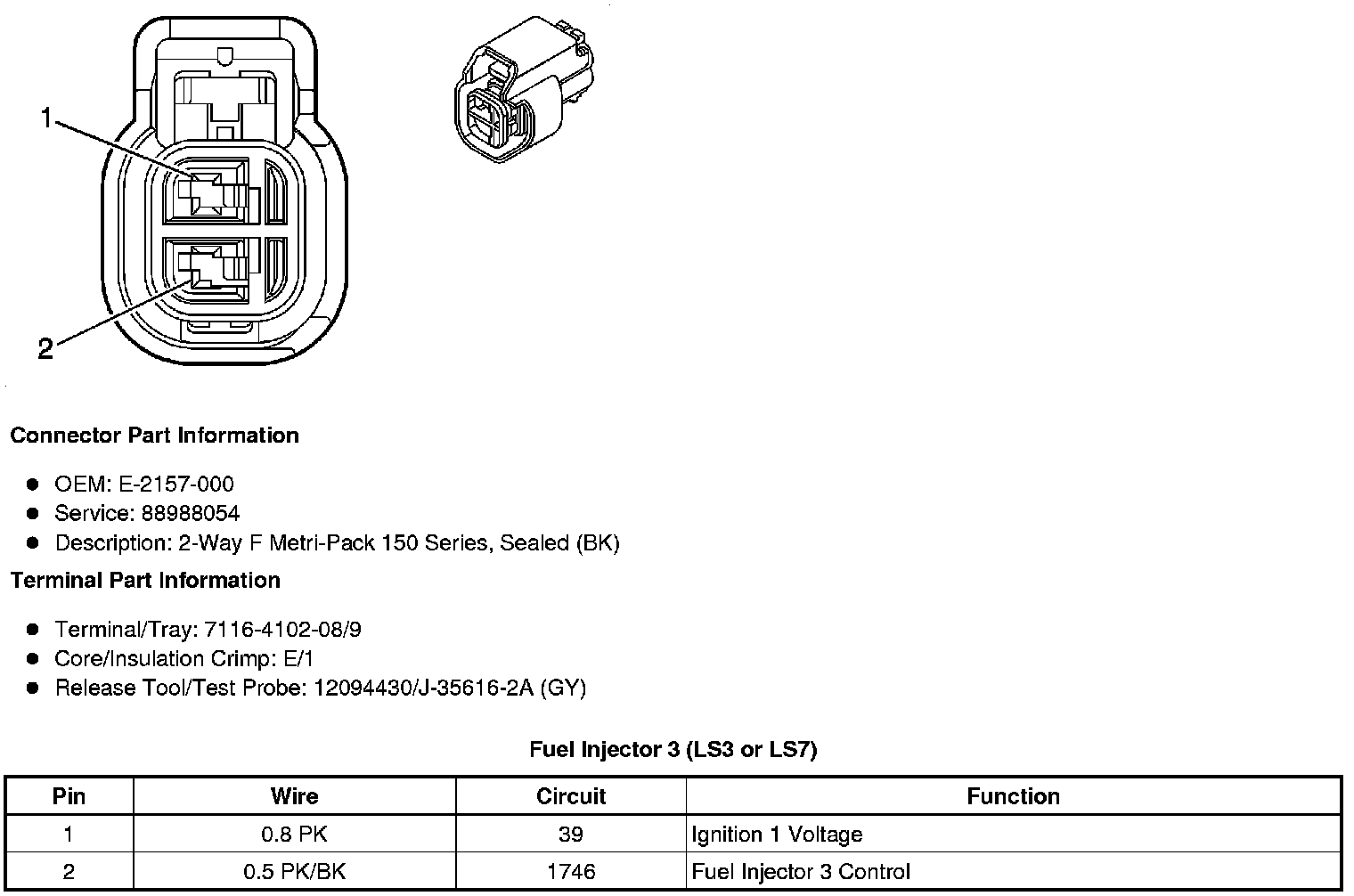

Fuel Injector 3 (LS3 or LS7)

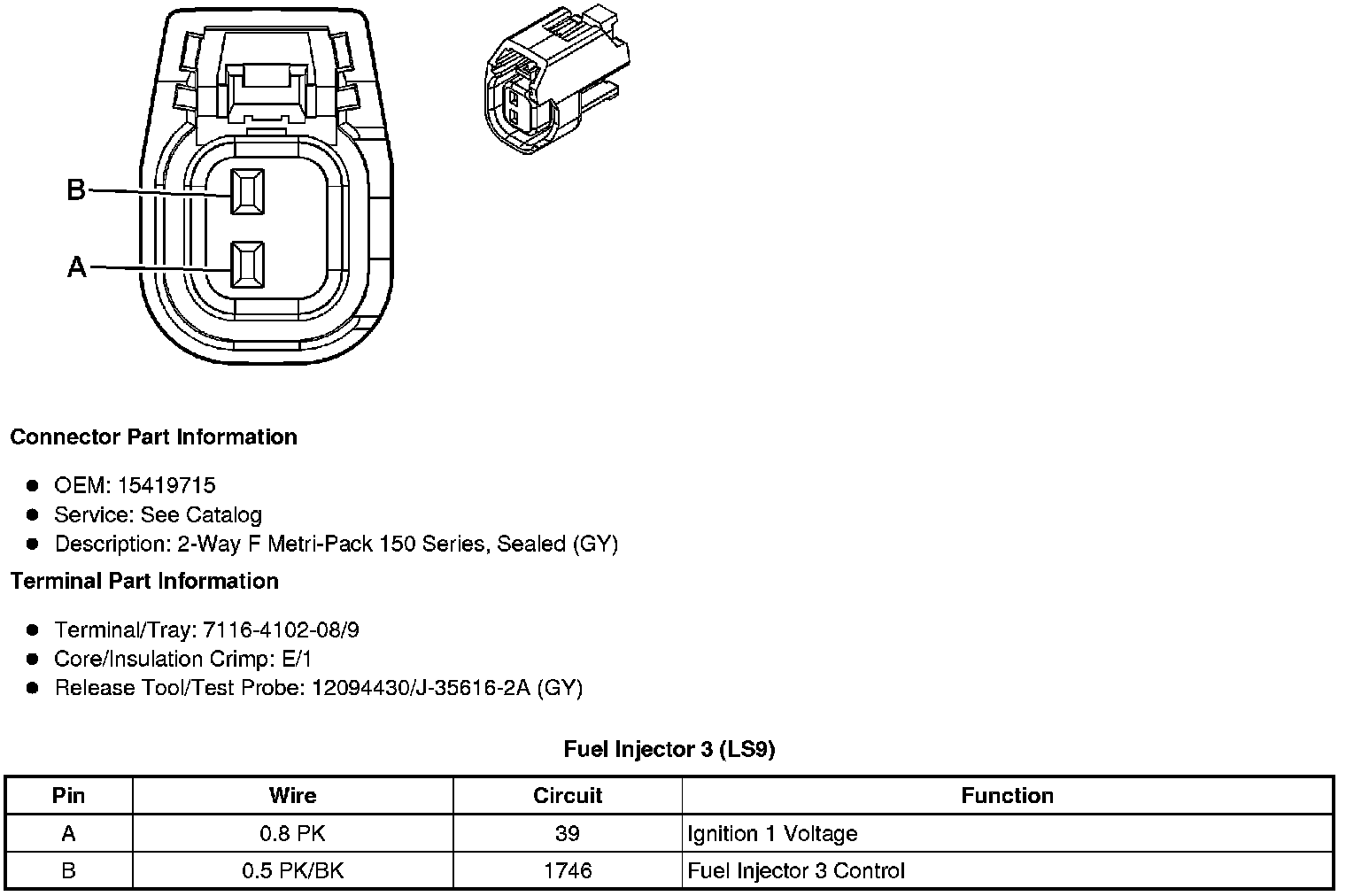

Fuel Injector 3 (LS9)

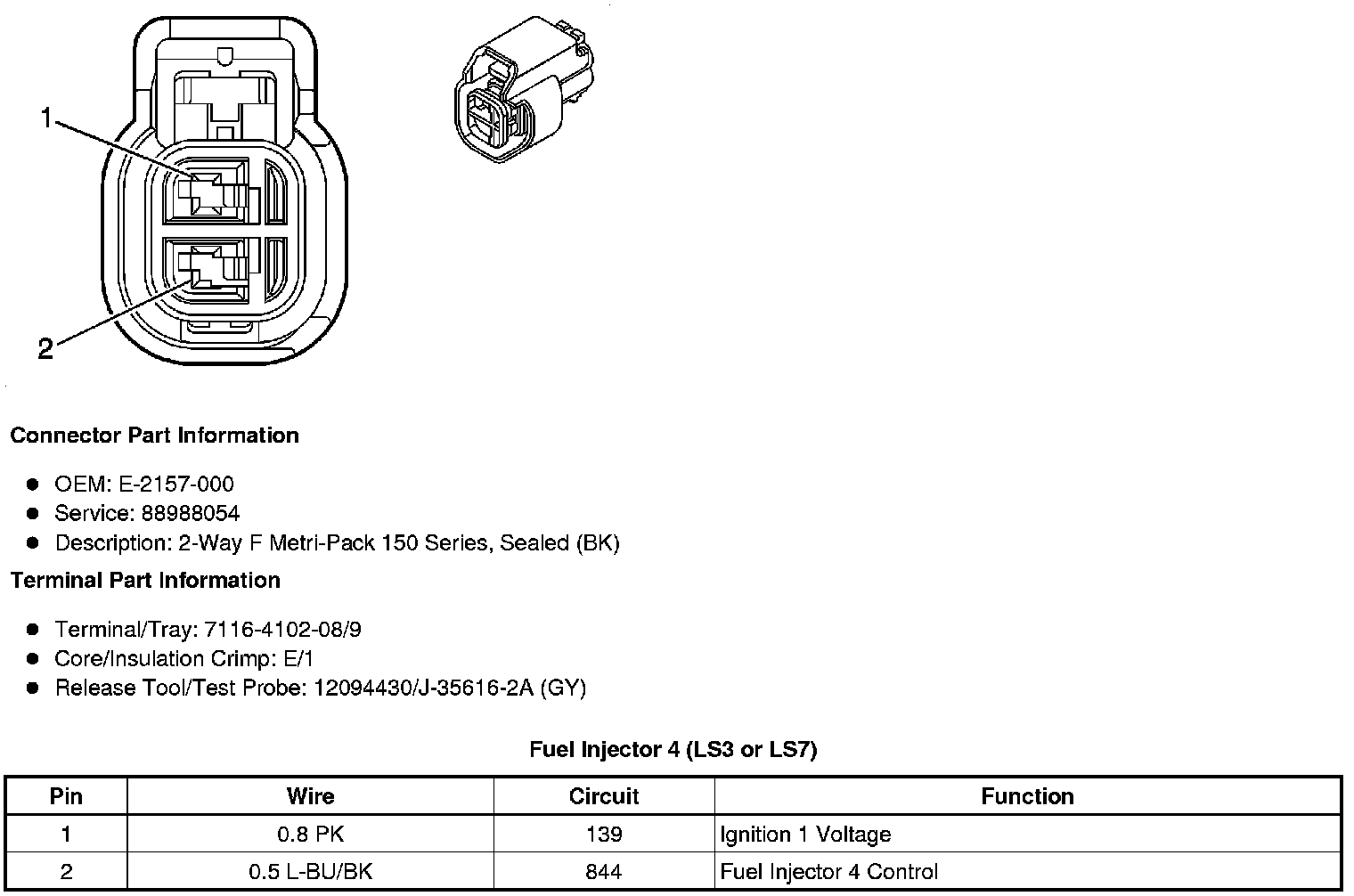

Fuel Injector 4 (LS3 or LS7)

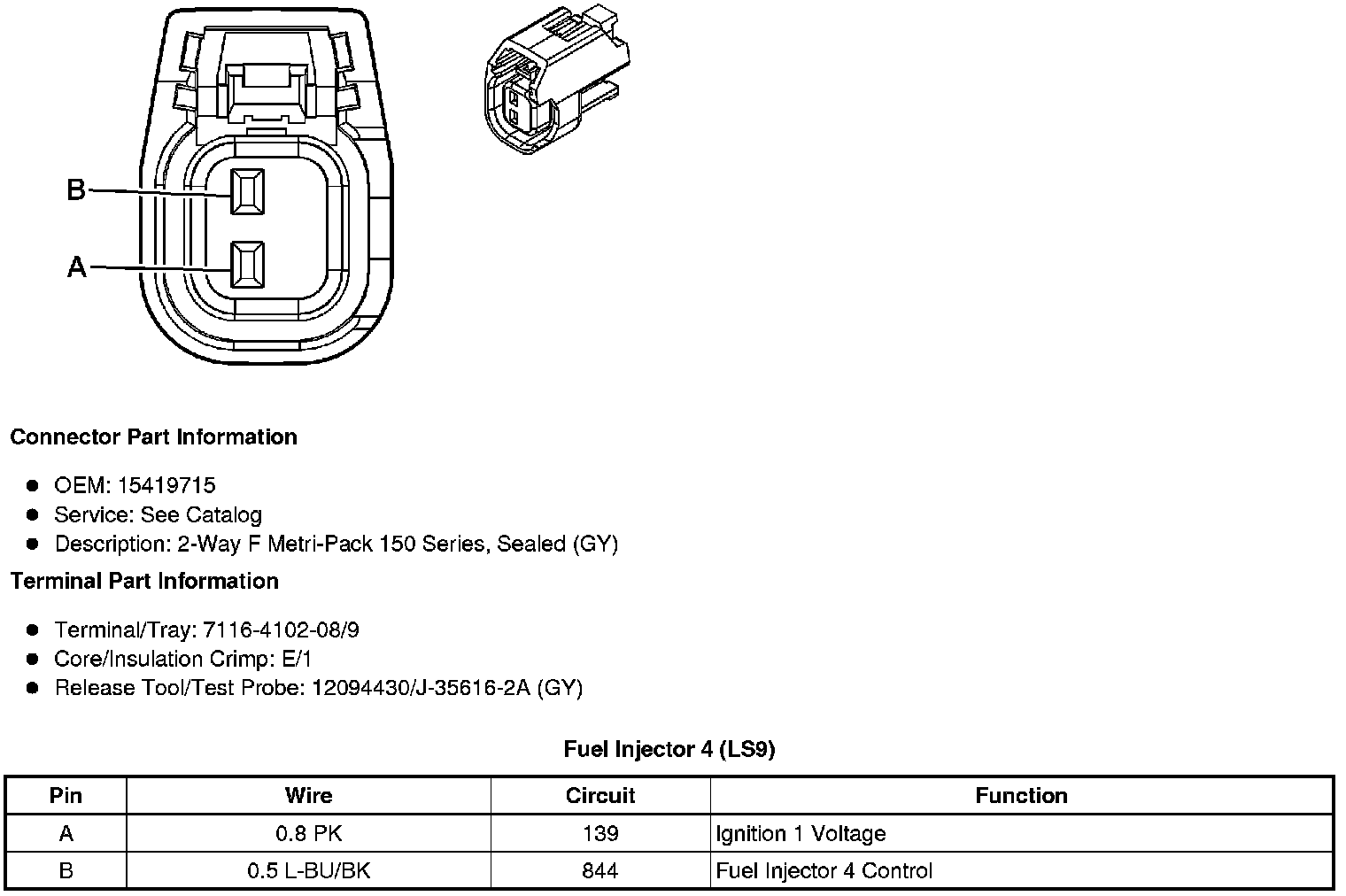

Fuel Injector 4 (LS9)

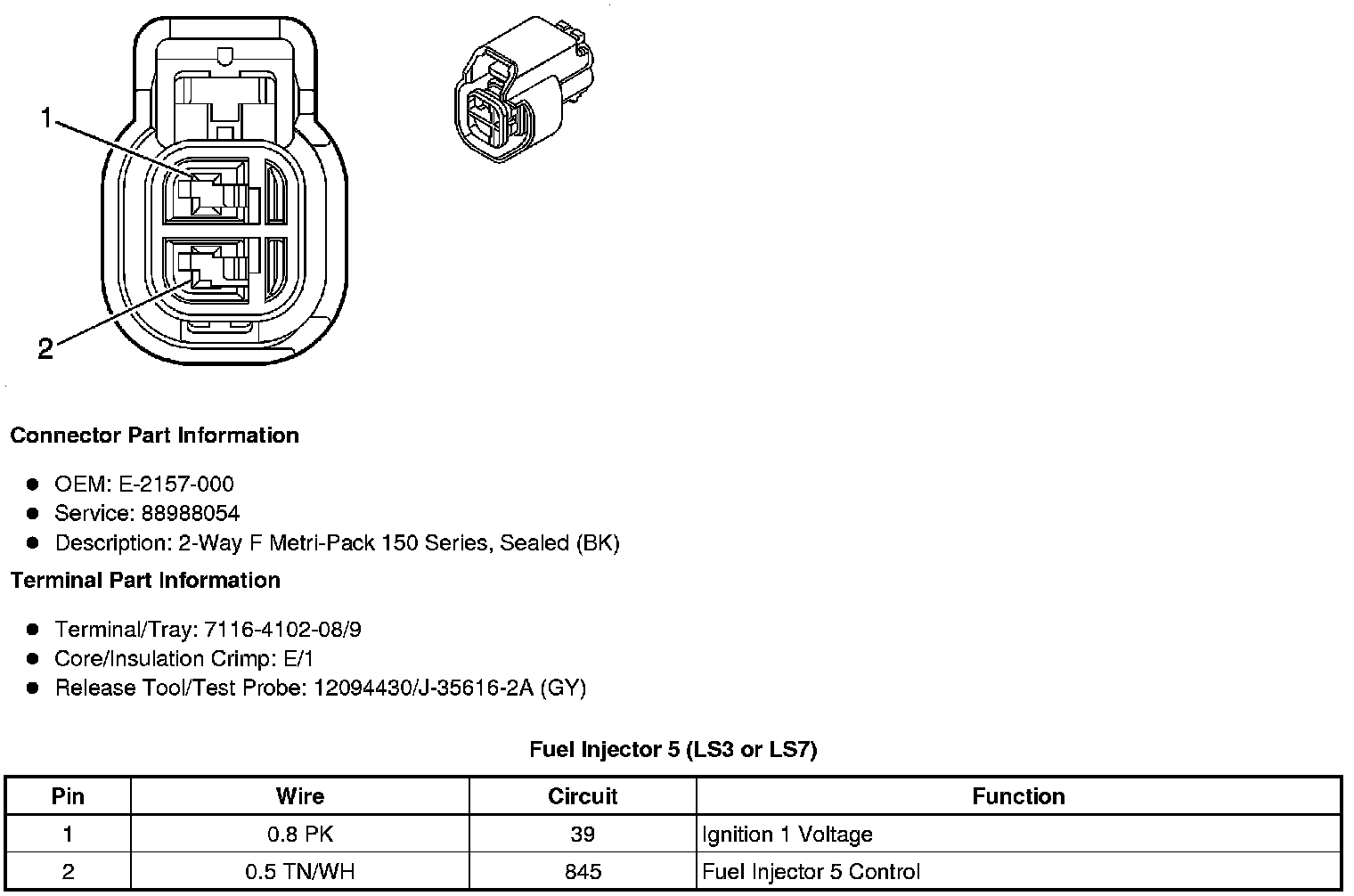

Fuel Injector 5 (LS3 or LS7)





Fuel Injector 5 (LS9)





Fuel Injector 6 (LS3 or LS7)





Fuel Injector 6 (LS9)





Fuel Injector 7 (LS3 or LS7)





Fuel Injector 7 (LS9)

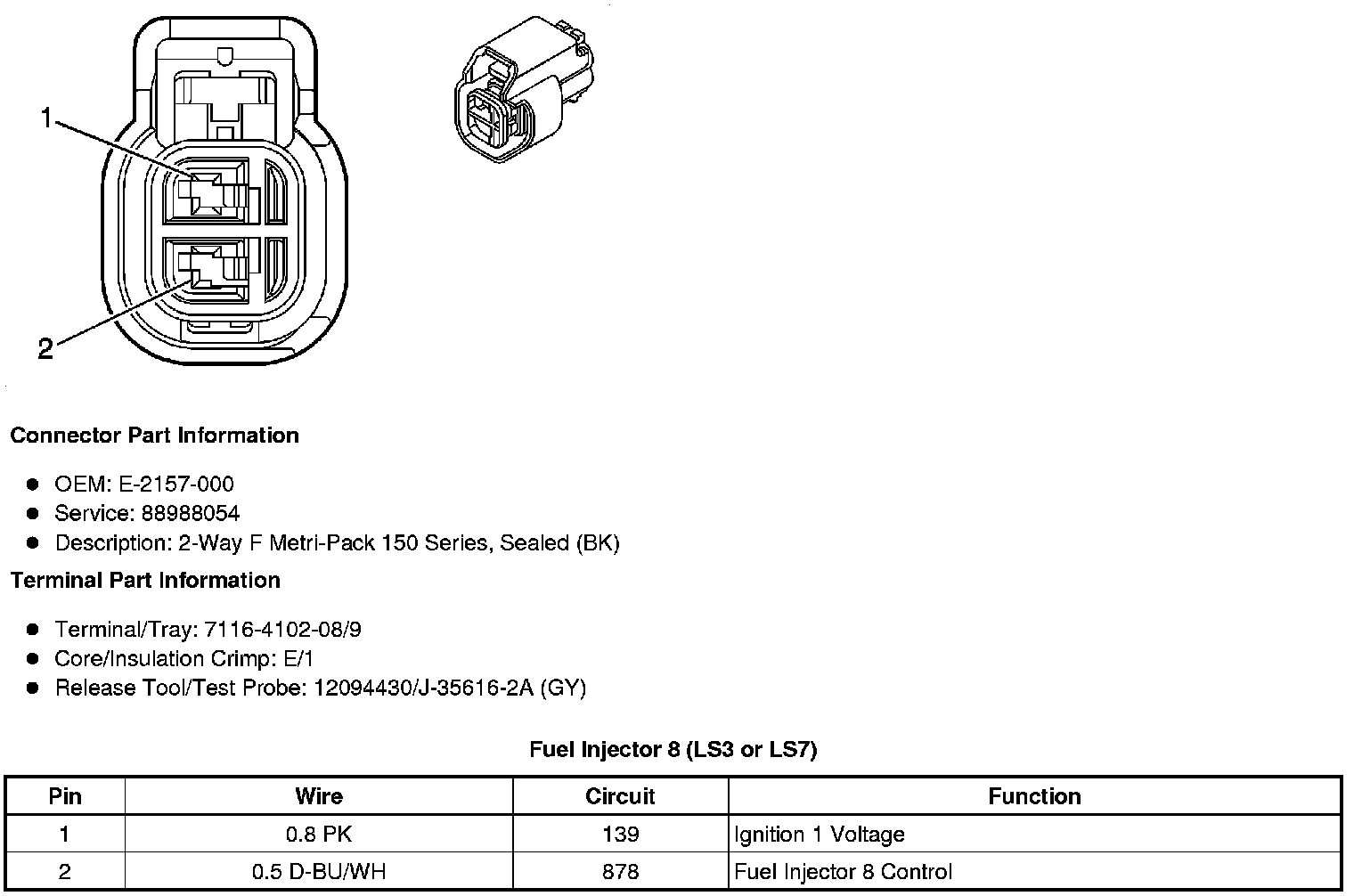

Fuel Injector 8 (LS3 or LS7)

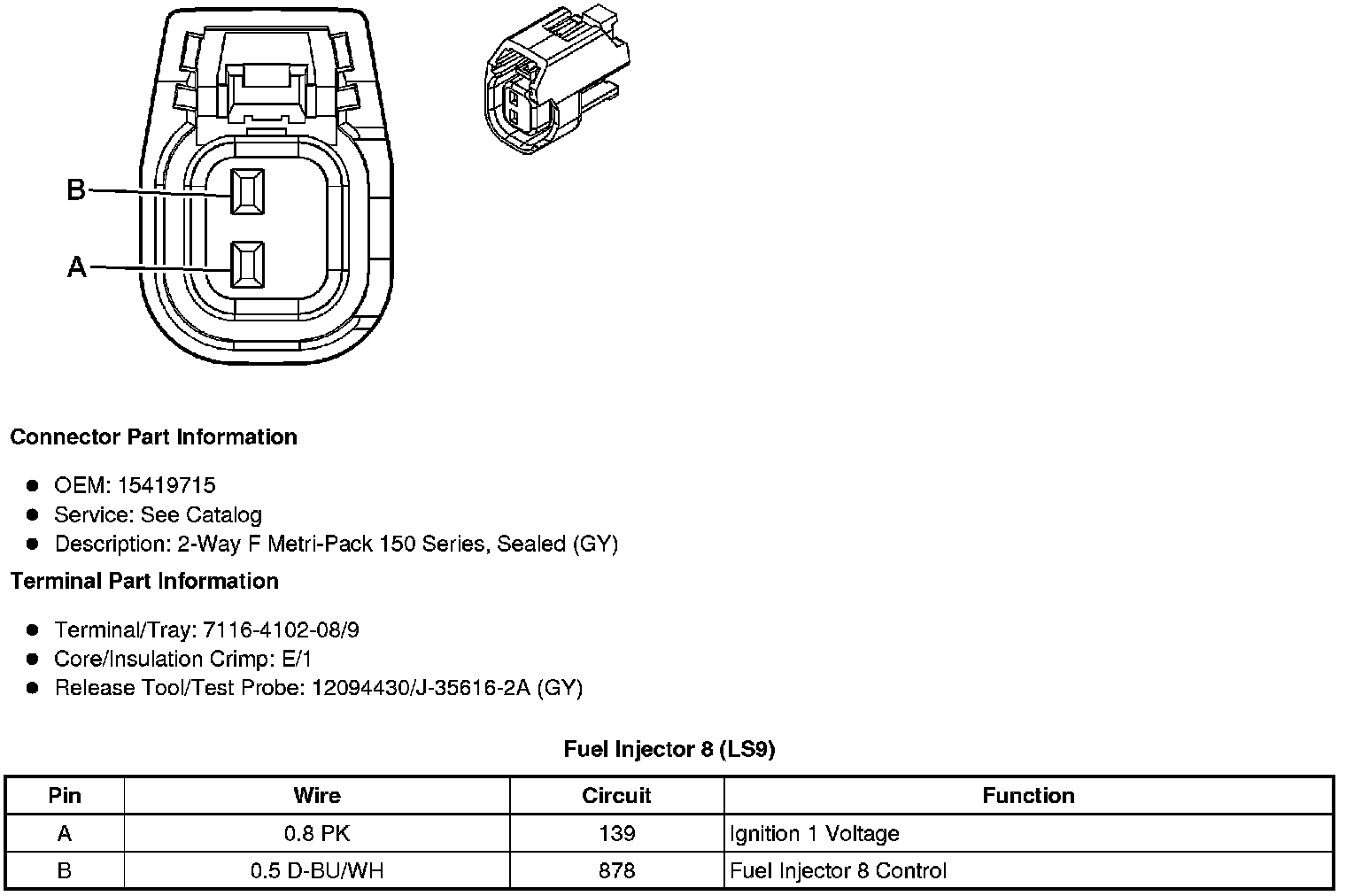

Fuel Injector 8 (LS9)
