Oil Temperature Sensor/Switch, Engine




Component Connector End Views

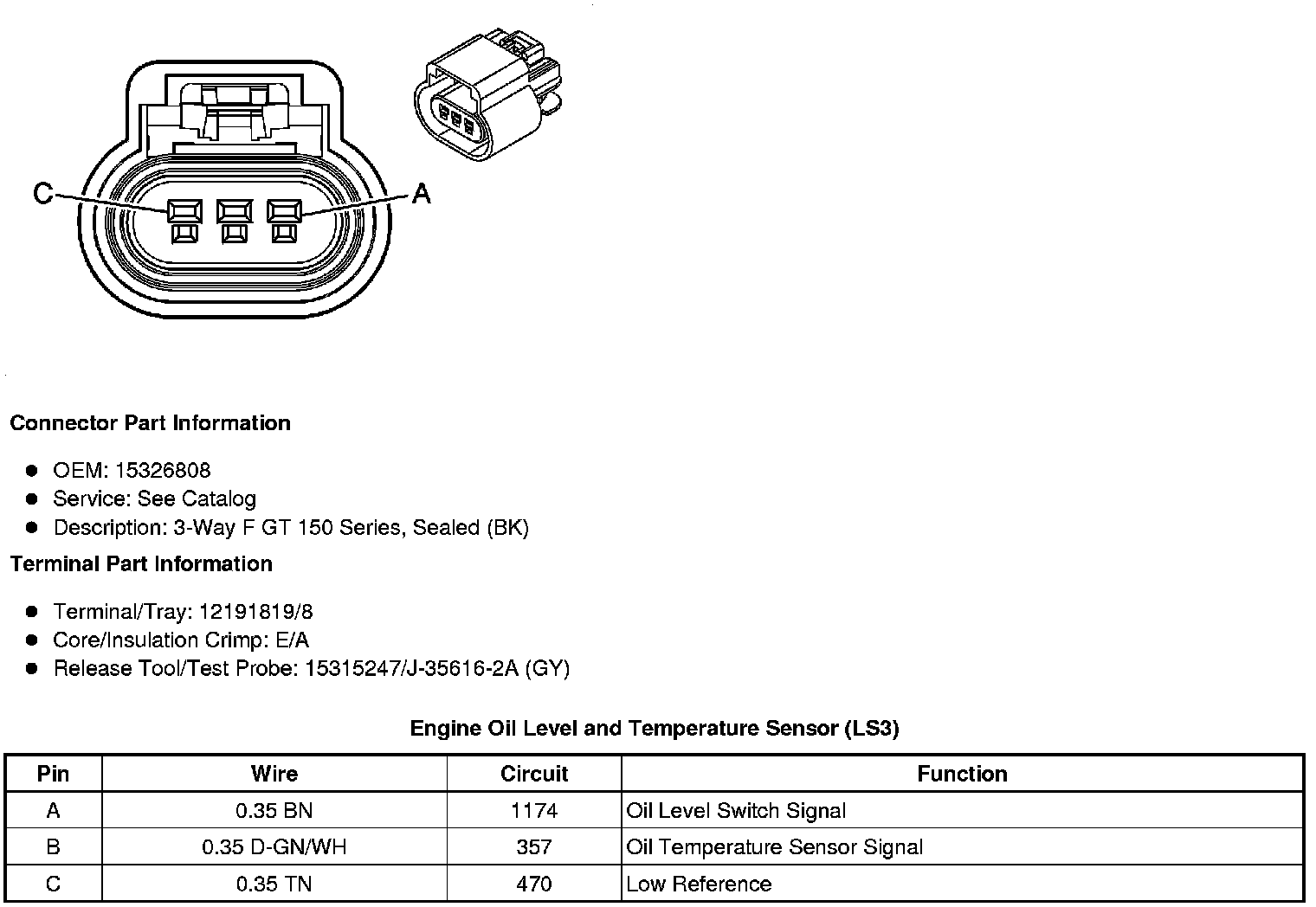

Engine Oil Level and Temperature Sensor (LS3)

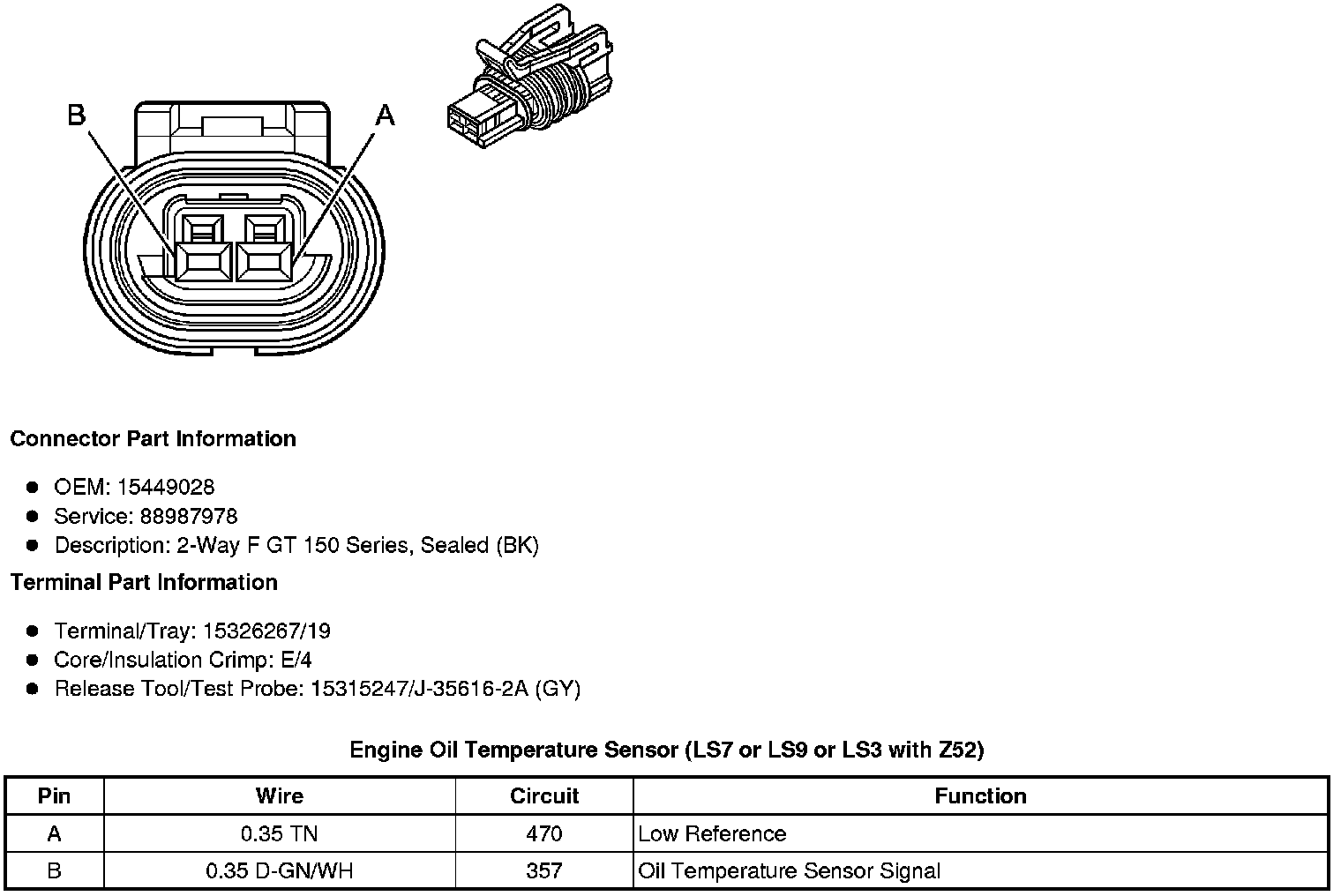

Engine Oil Temperature Sensor (LS7 or LS9 or LS3 with Z52)
