Steering Column Control Module




Component Connector End Views

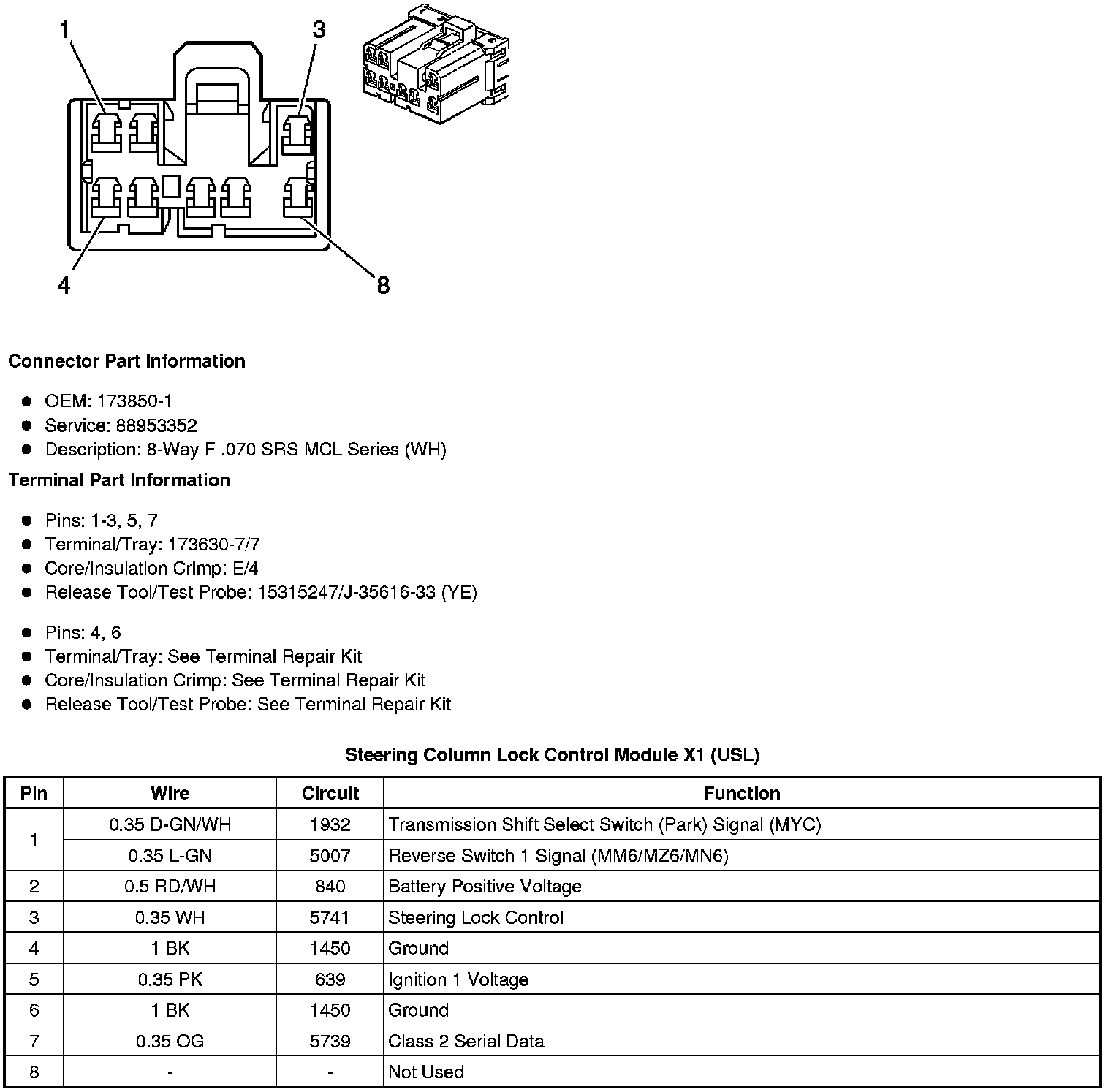

Steering Column Lock Control Module X1 (USL)

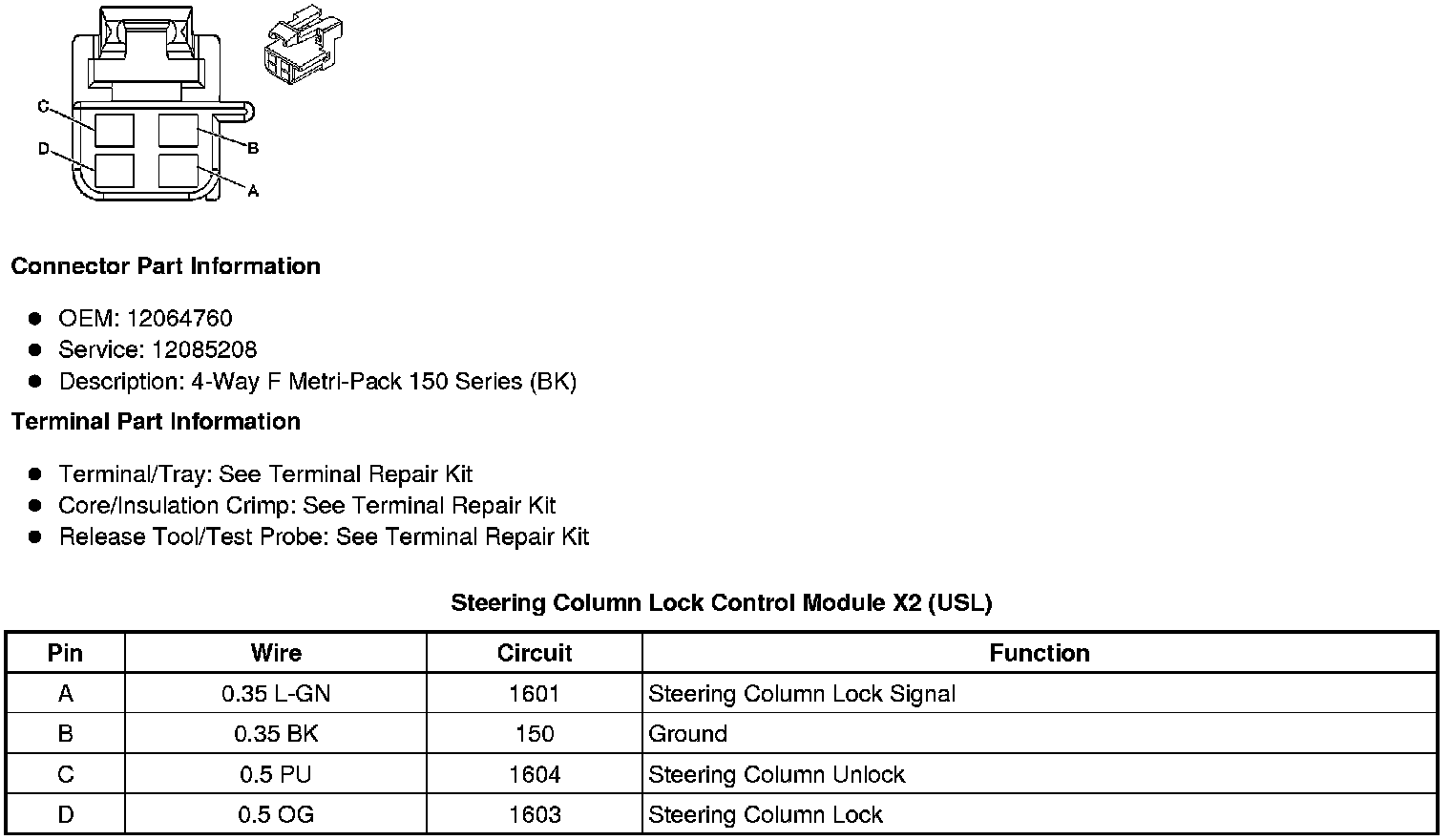

Steering Column Lock Control Module X2 (USL)
