Engine Compartment Electrical Components

Powertrain Component Views

Engine Compartment Electrical Components

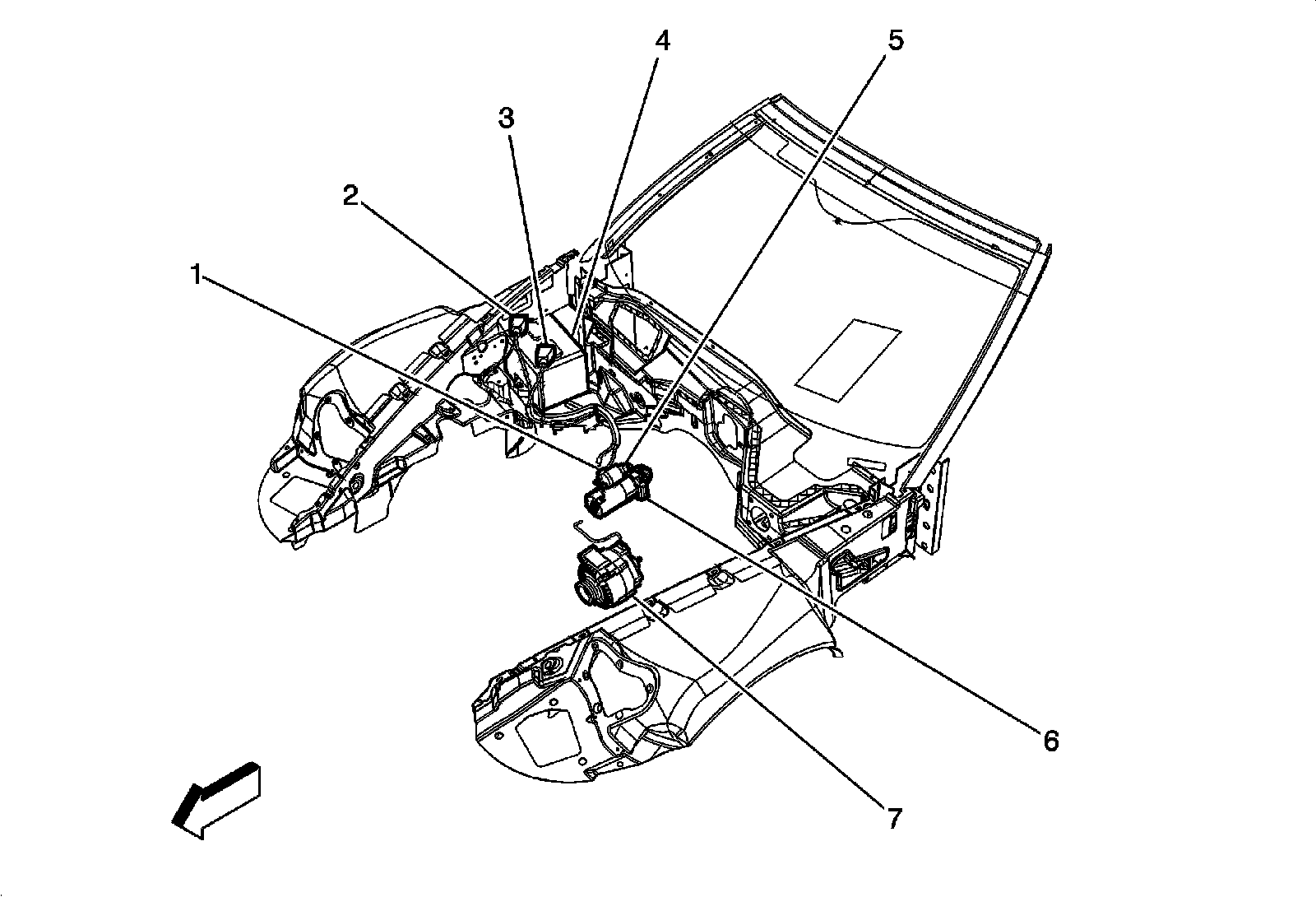

1 - G106
2 - Battery Positive Cable
3 - Battery Negative Cable
4 - Battery (LS3 without Z52)
5 - Starter Solenoid
6 - Starter Motor
7 - Generator (LS3 or LS7)
