Data Link Connector: Locations

Instrument Panel/Center Console Component Views

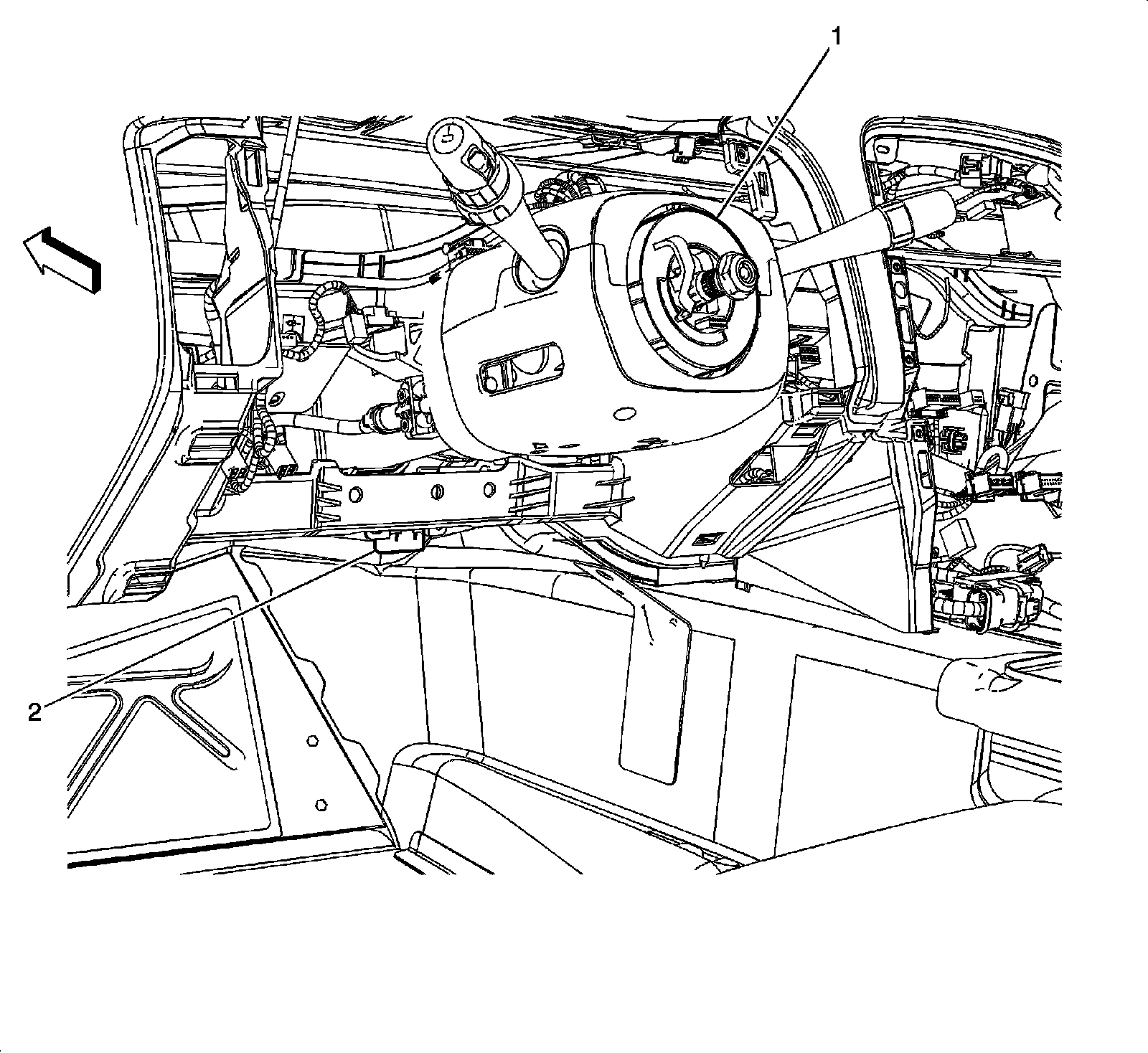

Lower Left of Instrument Panel Components




1 - Inflatable Restraint Steering Wheel Module Coil
2 - Data Link Connector (DLC)
