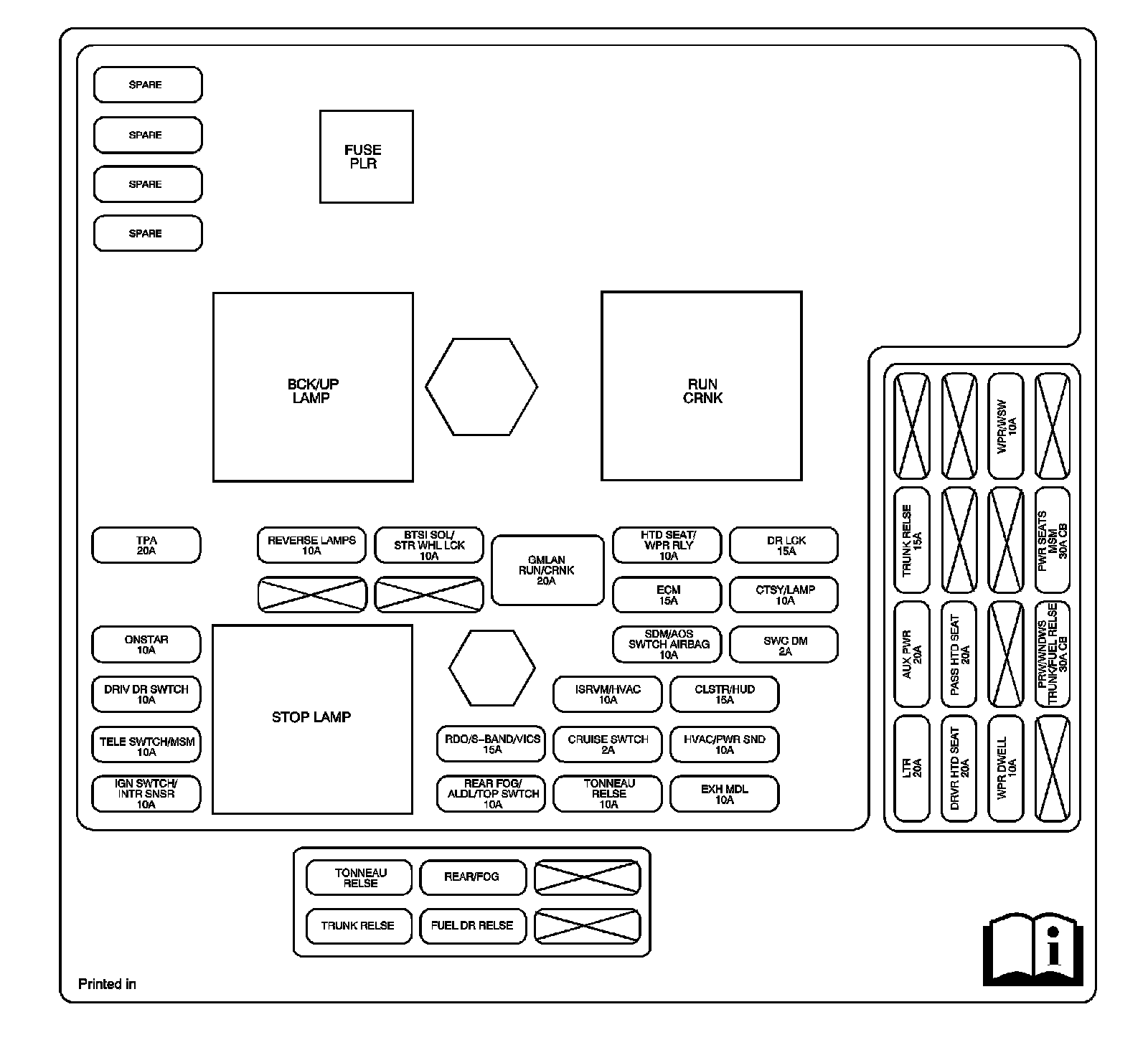

Electrical Center Identification Views
Electrical Center Identification Views

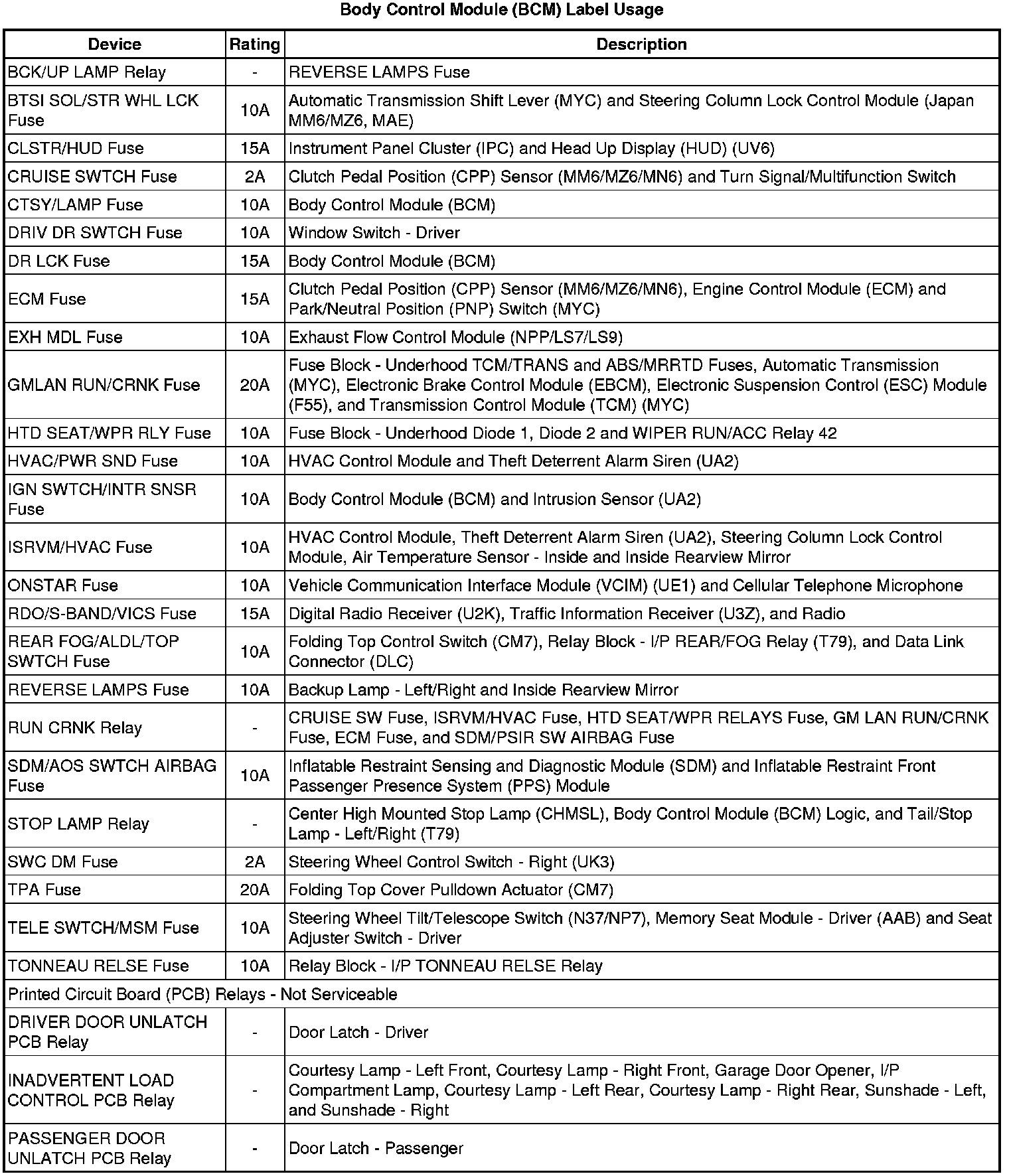

Body Control Module (BCM) Label
