Knock Sensor: Locations

Powertrain Component Views

Left Side of Engine Components (LS7)




1 - Manifold Intake Check Valve
2 - Engine Oil Pressure (EOP) Sensor
3 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
4 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
5 - Knock Sensor (KS) 1
6 - Engine Coolant Temperature (ECT) Sensor

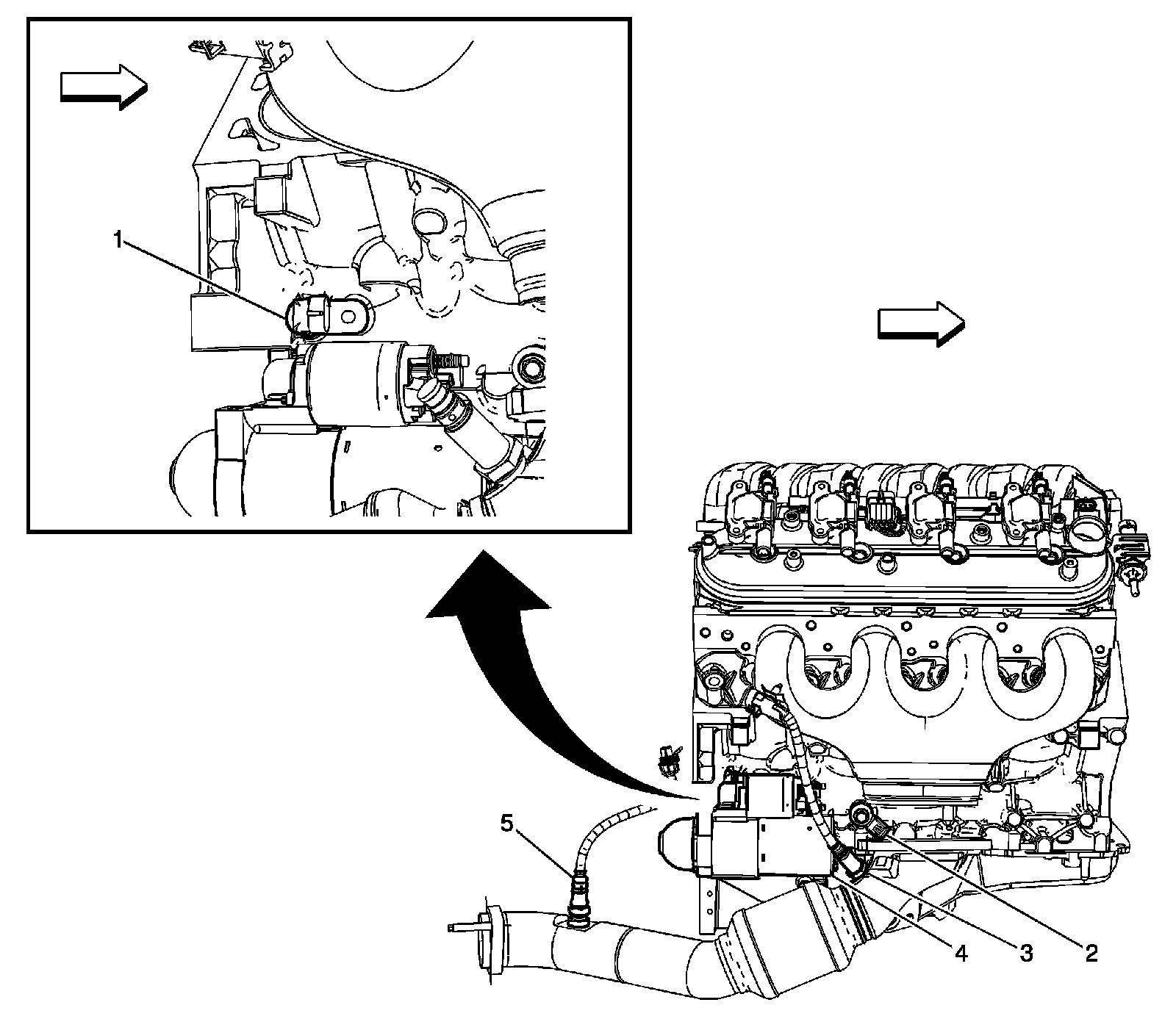

Right Side of Engine Components (LS7)




1 - Crankshaft Position (CKP) Sensor
2 - Knock Sensor (KS) 2
3 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
4 - Starter Motor
5 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
