Body Control Module




Component Connector End Views

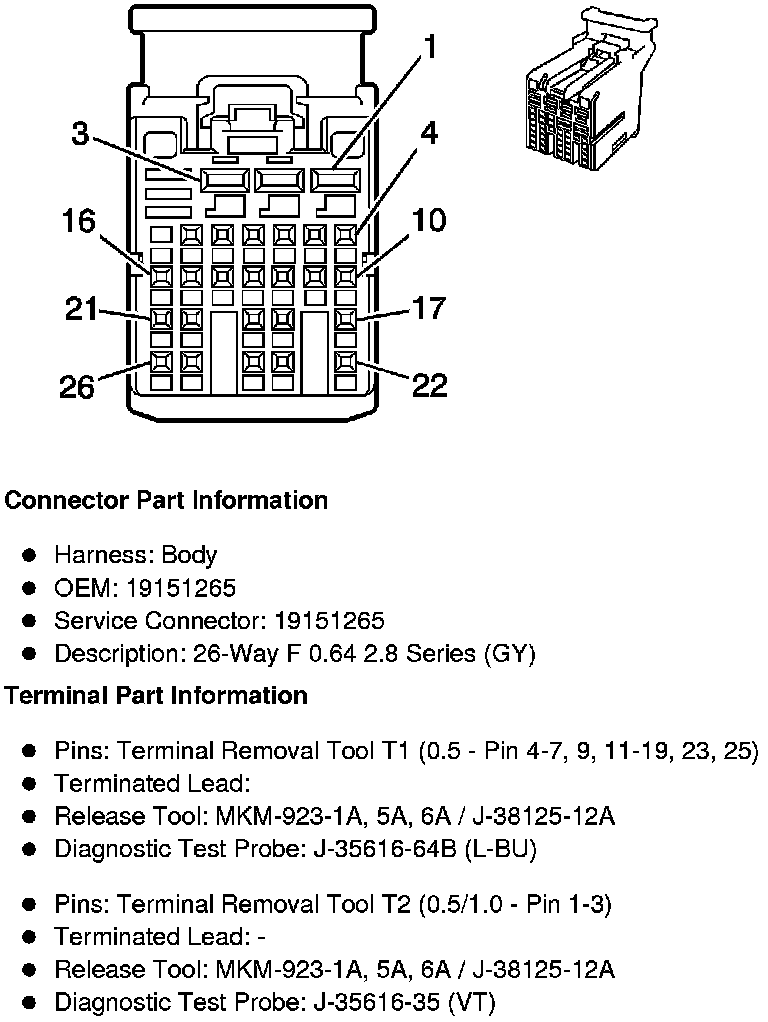

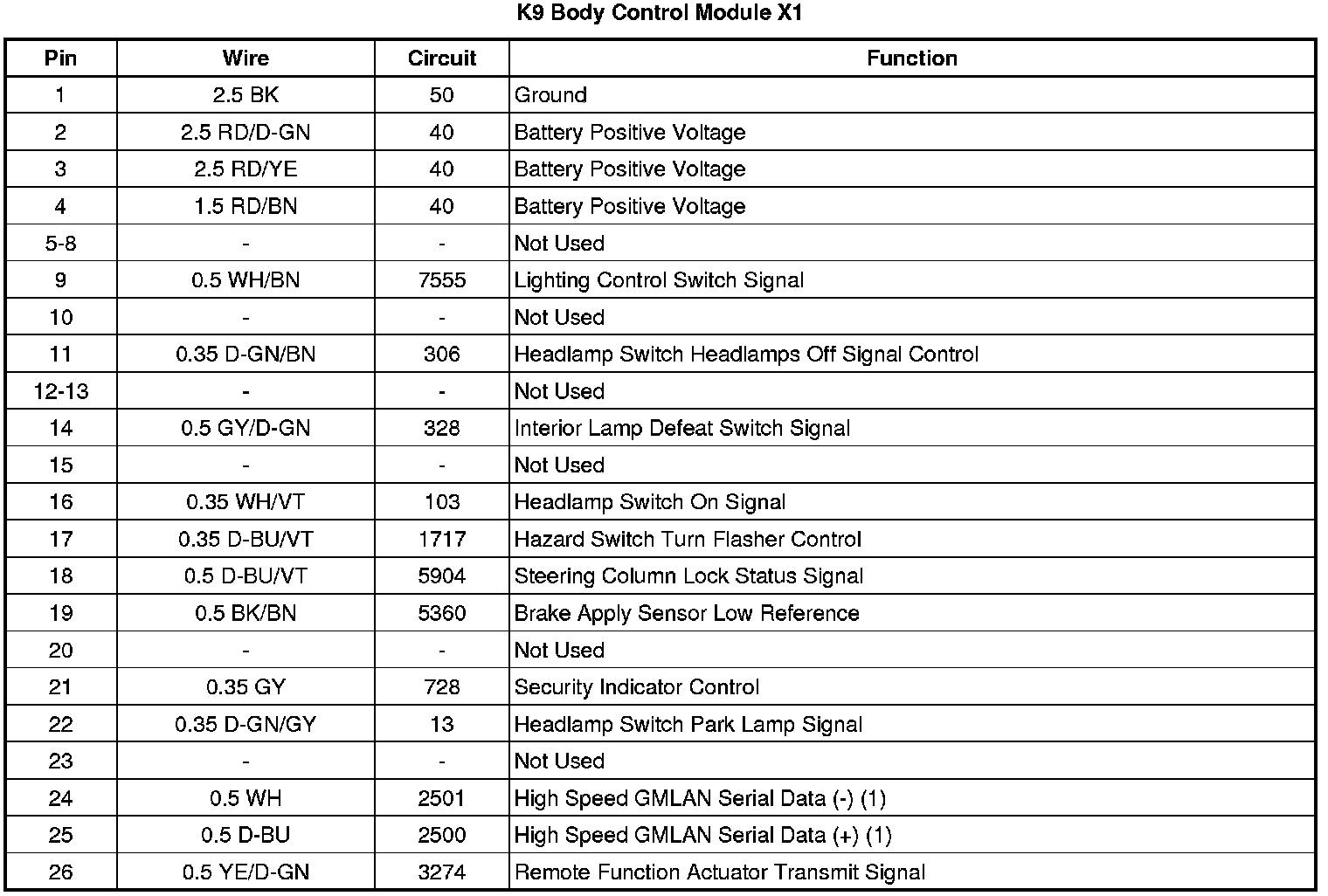

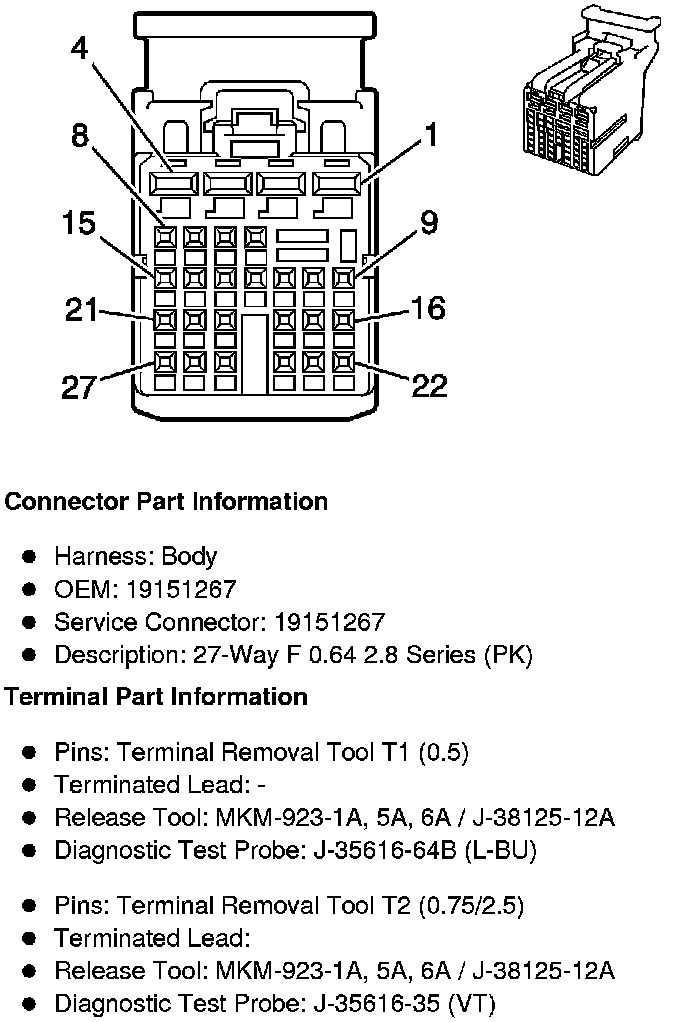

K9 Body Control Module X1

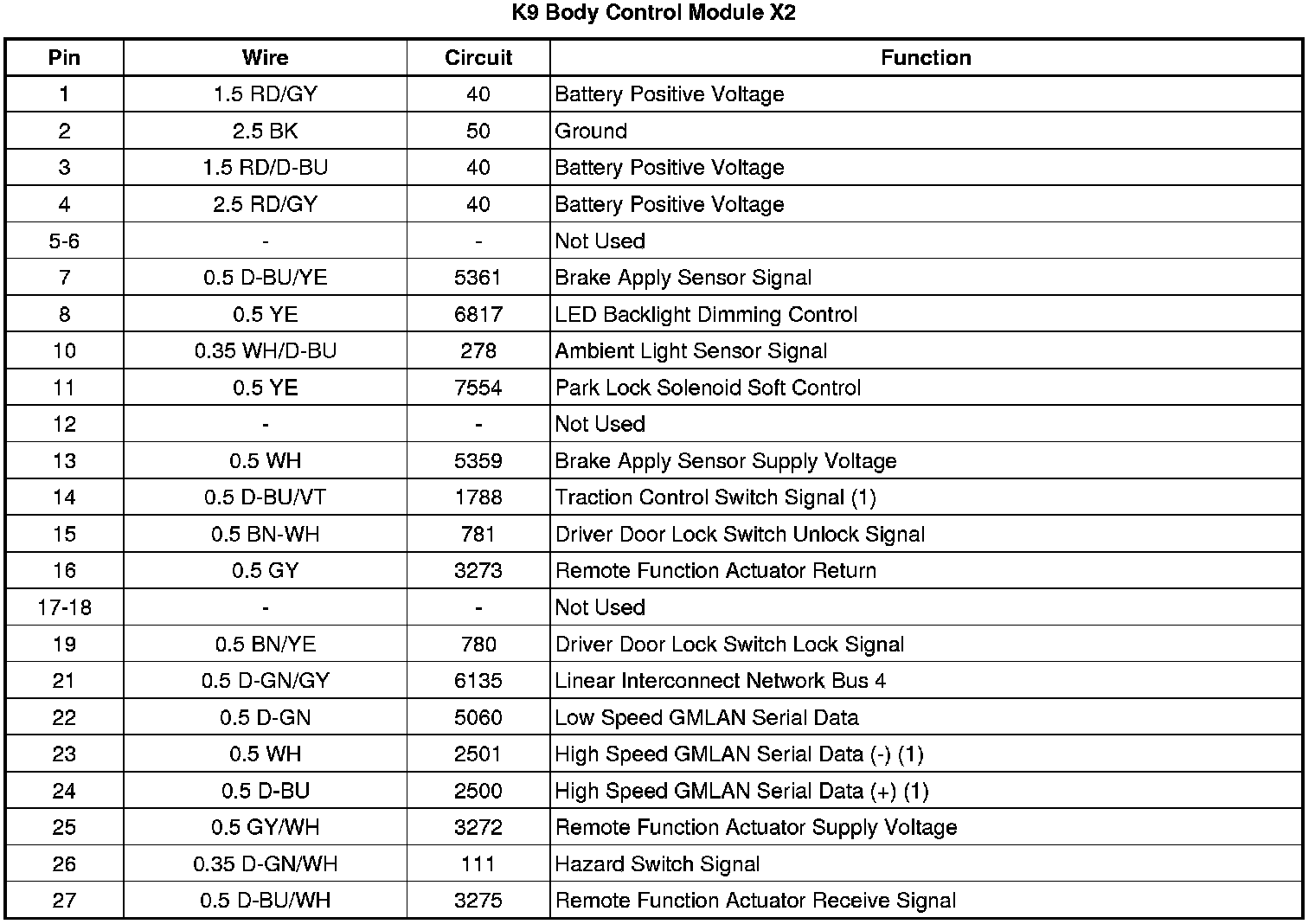

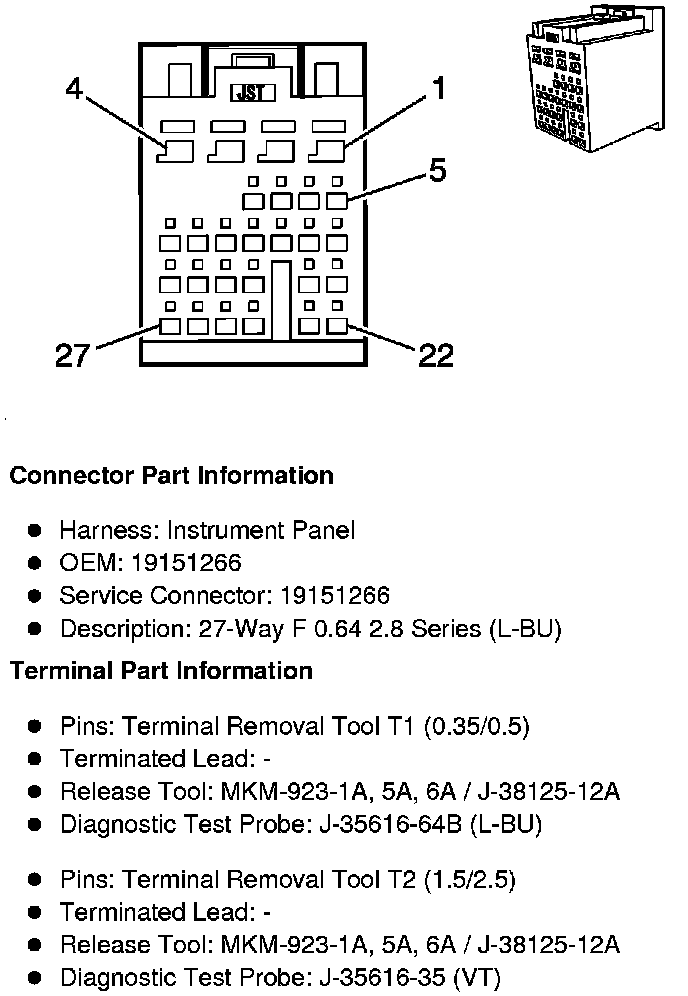

K9 Body Control Module X2

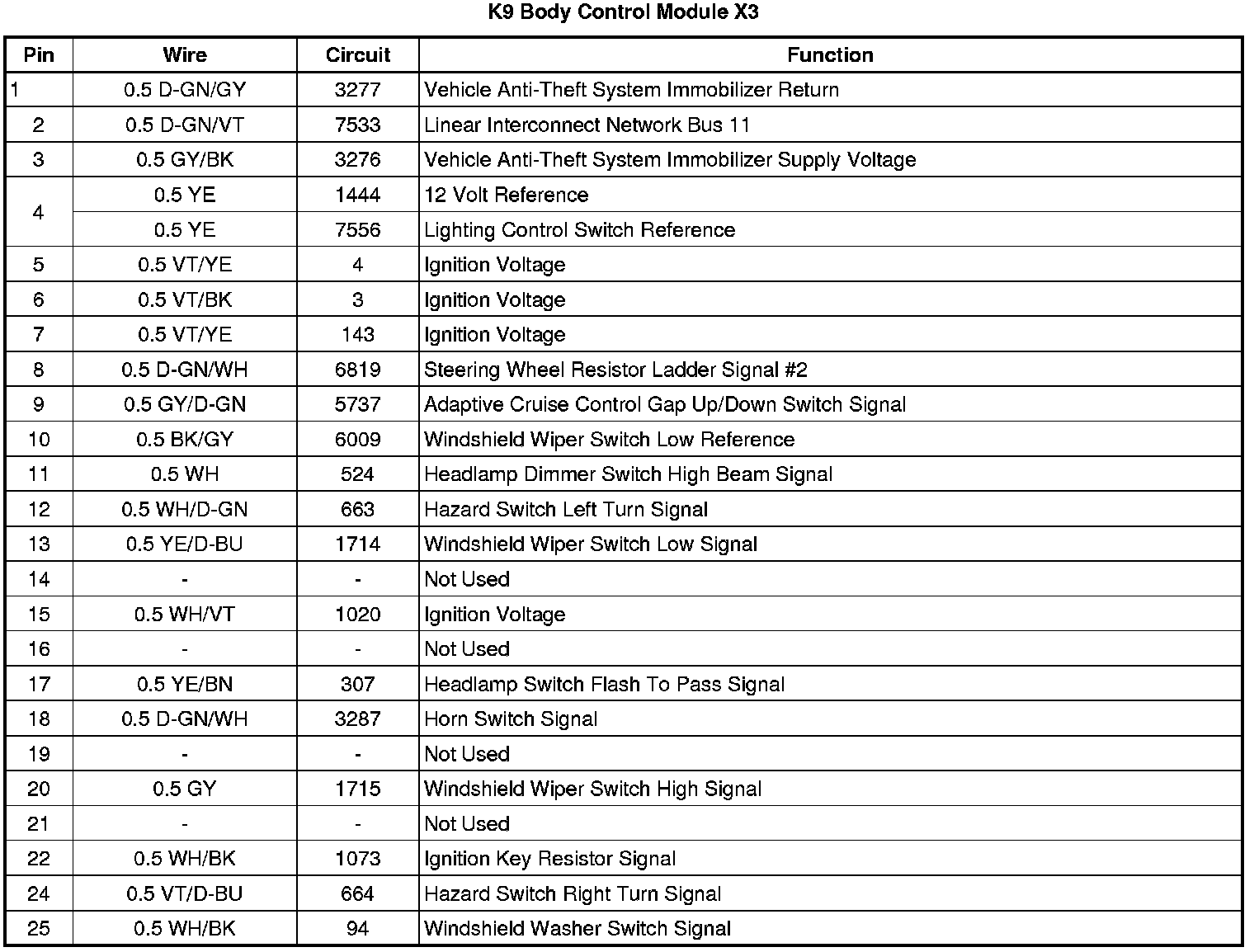

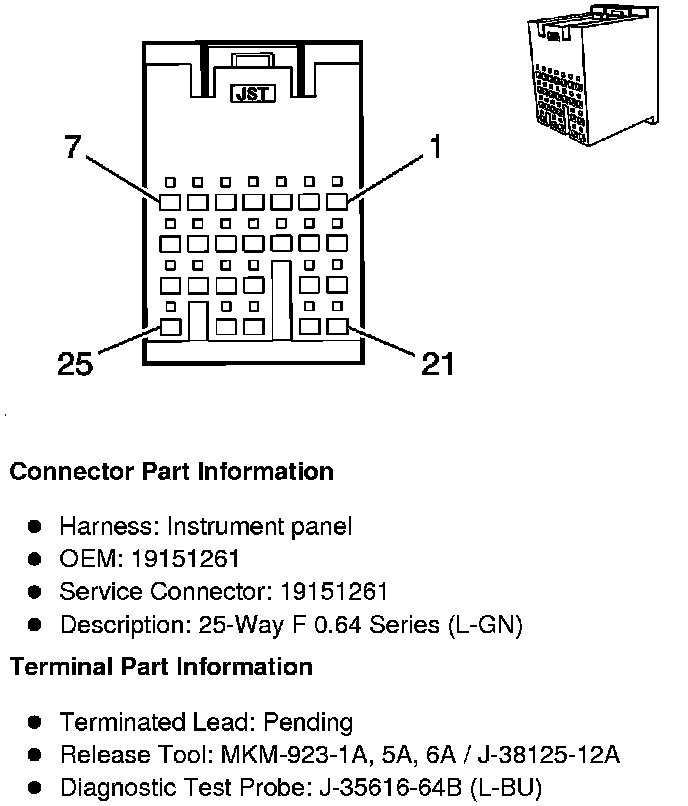

K9 Body Control Module X3

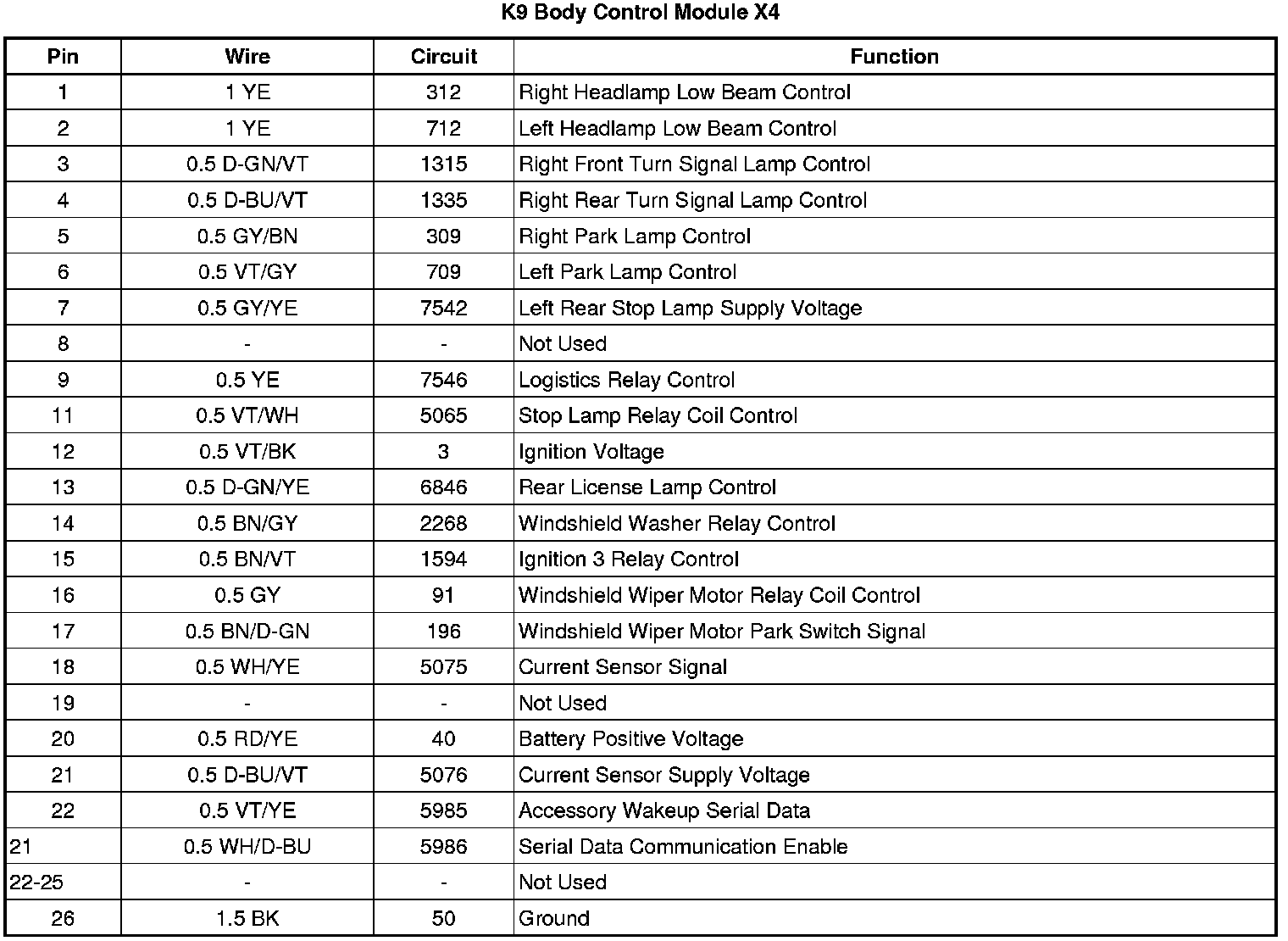

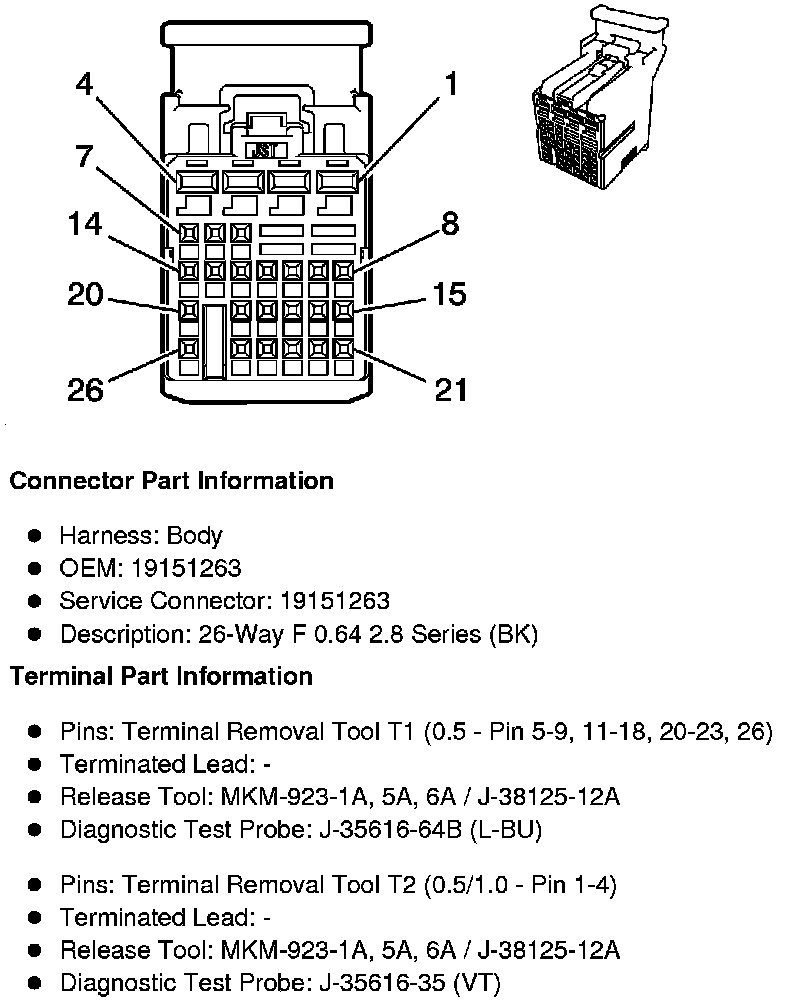

K9 Body Control Module X4

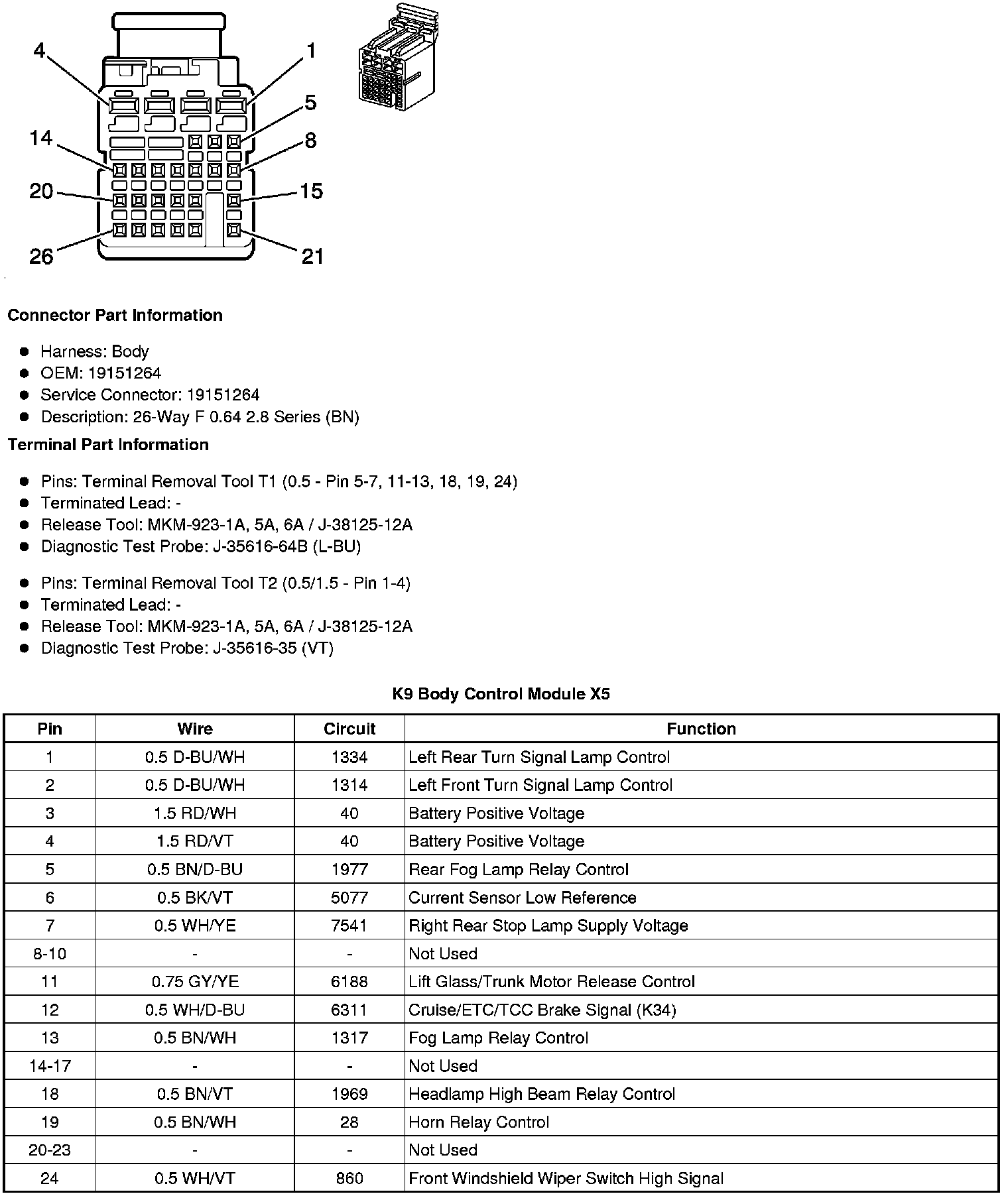

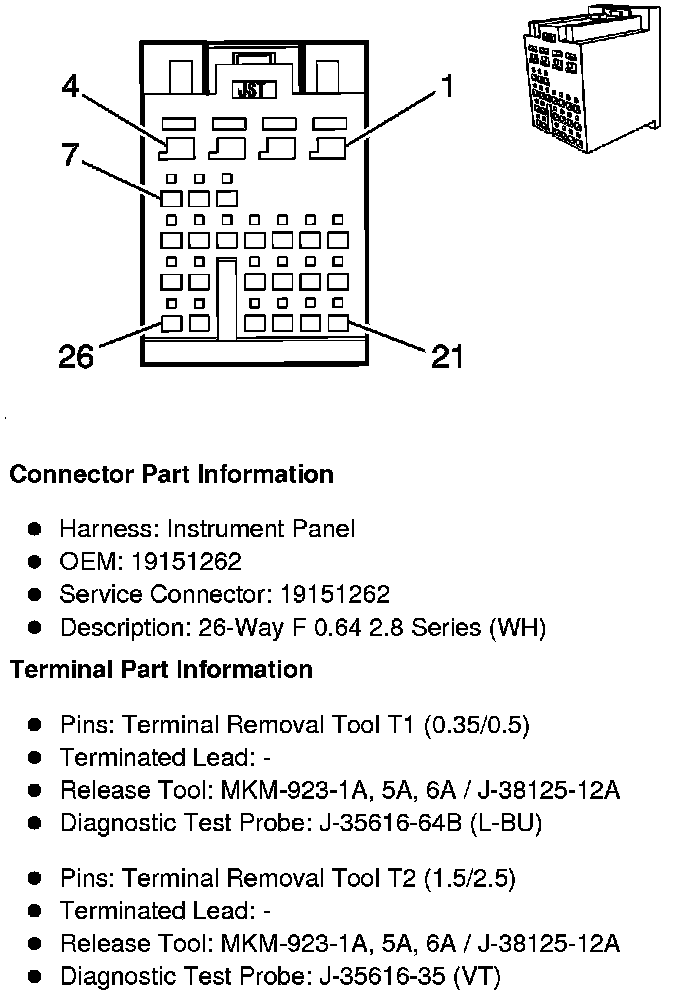

K9 Body Control Module X5

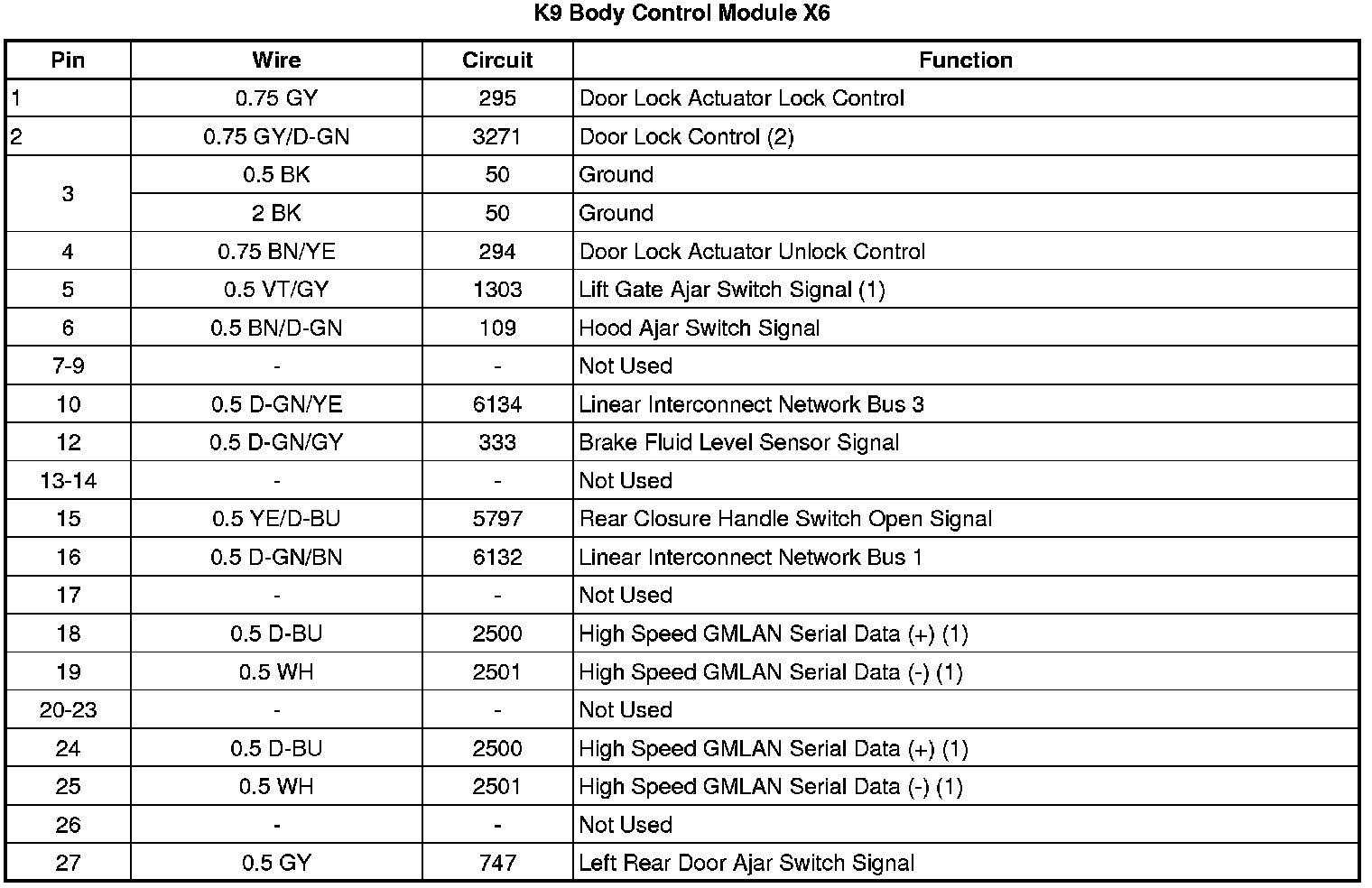

K9 Body Control Module X6

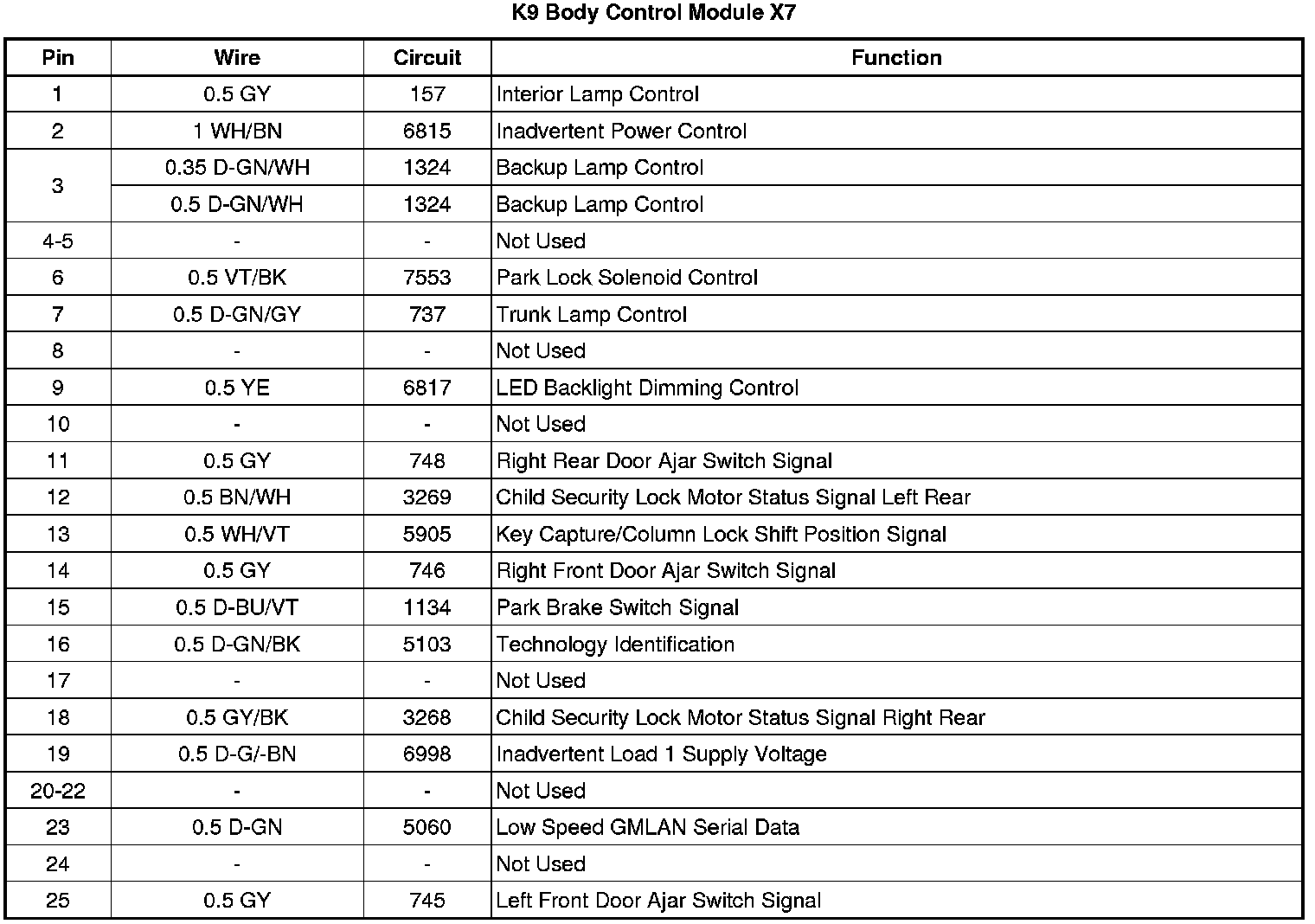

K9 Body Control Module X7
