System Diagram




Component Connector End Views

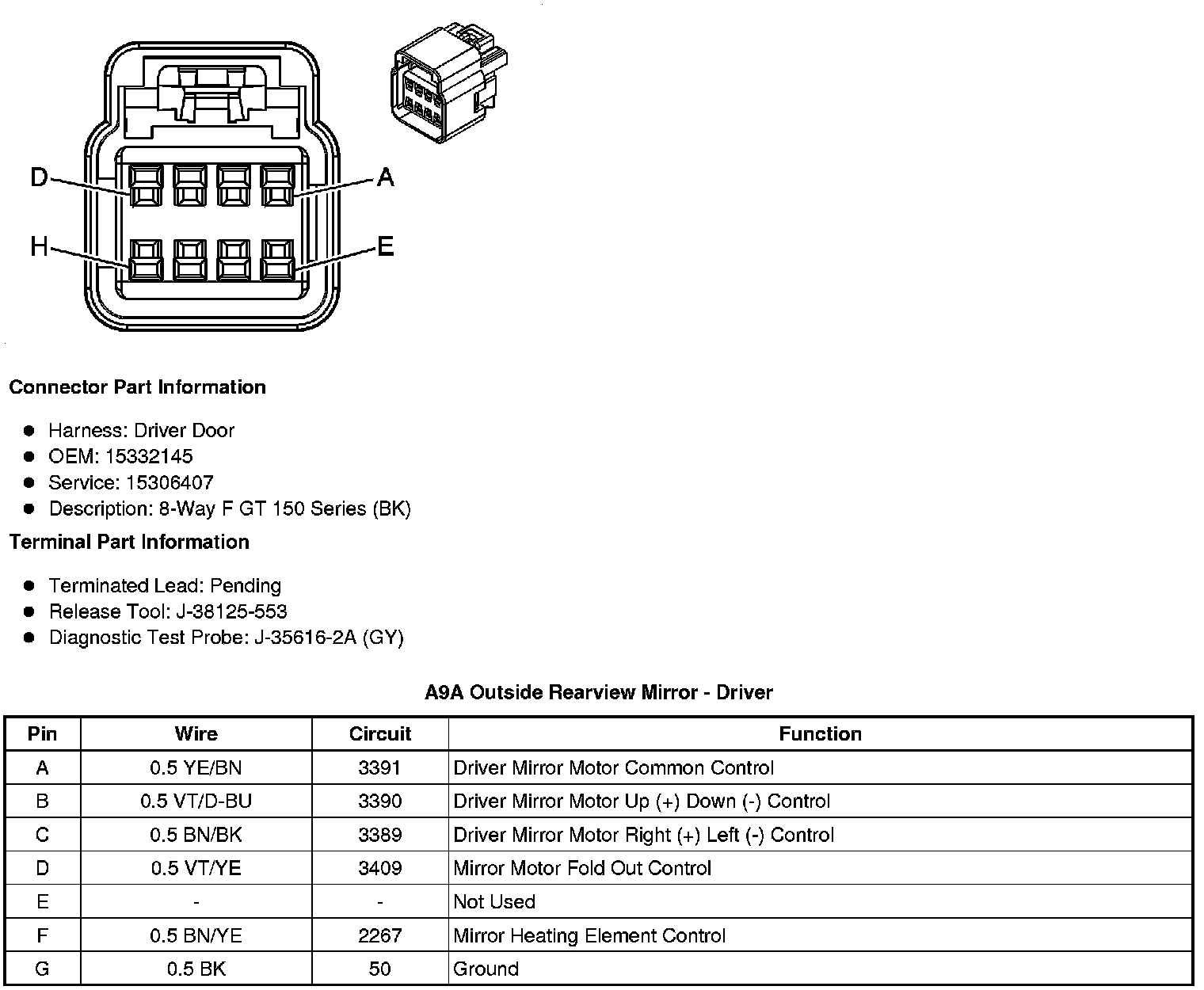

A9A Outside Rearview Mirror - Driver

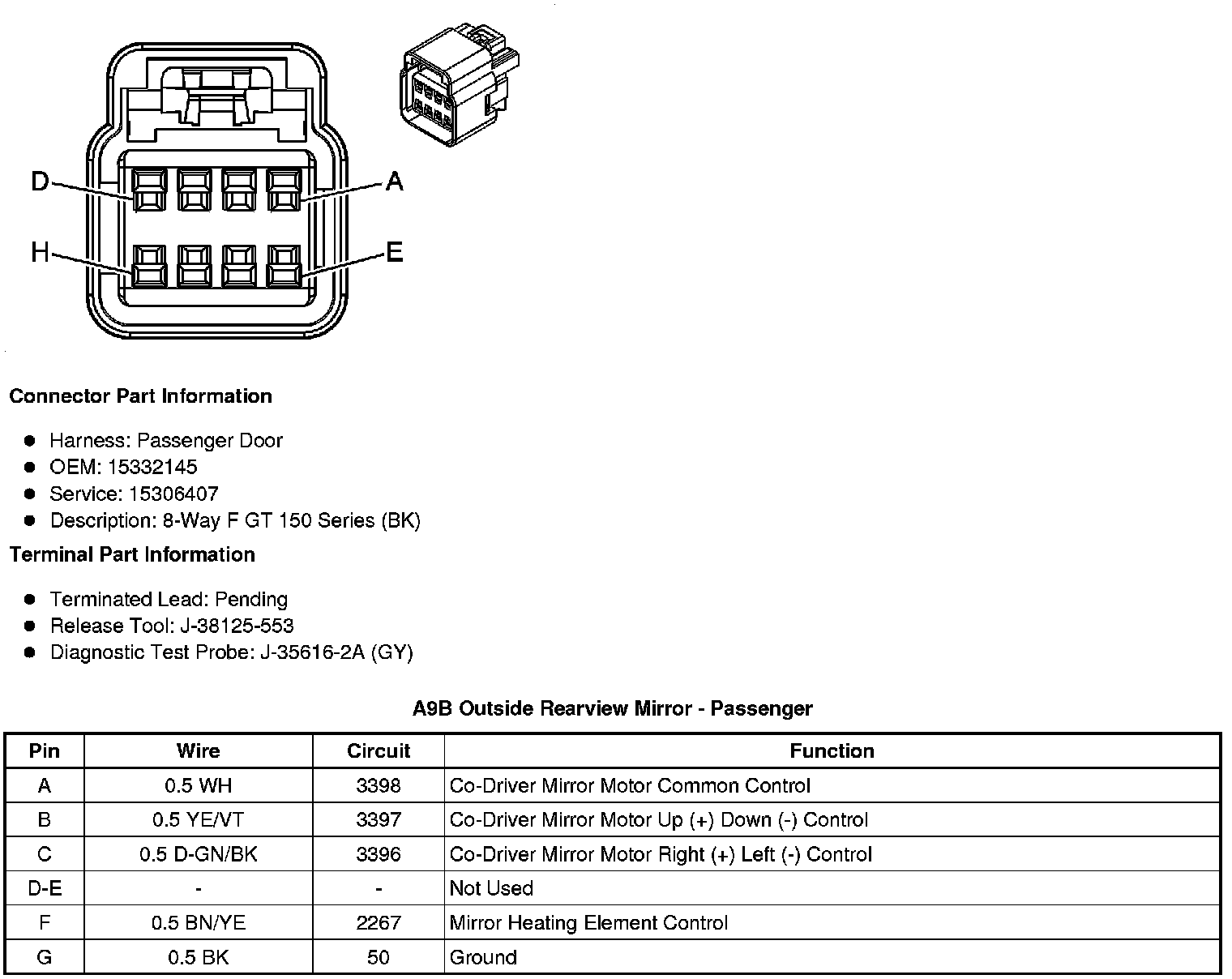

A9B Outside Rearview Mirror - Passenger






A10 Inside Rearview Mirror
