Oxygen Sensor
Component Connector End Views

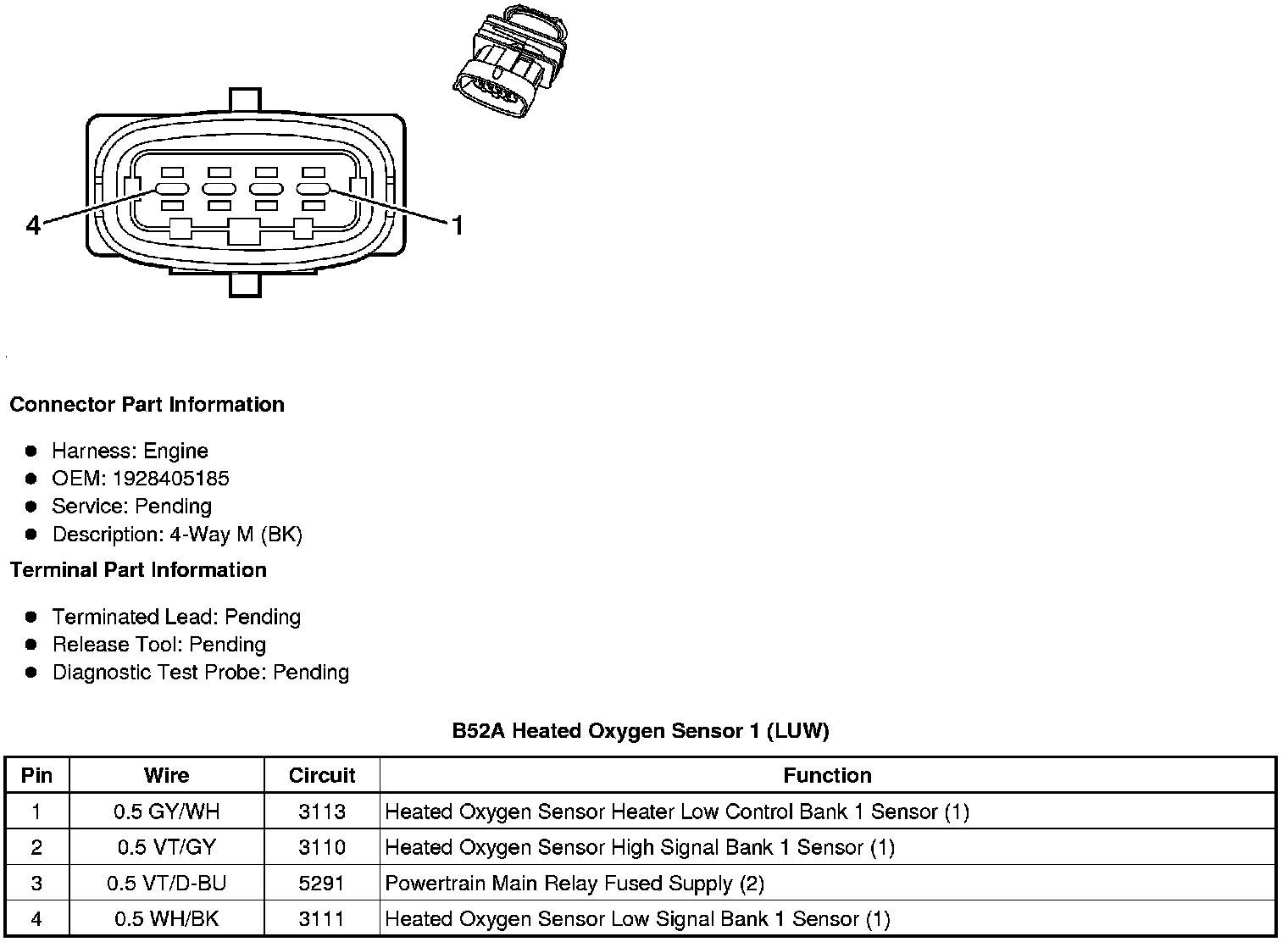

B52A Heated Oxygen Sensor 1 (LUW)
B52B Heated Oxygen Sensor 2 (LUW)
