Parking Assist Distance Sensor




Component Connector End Views

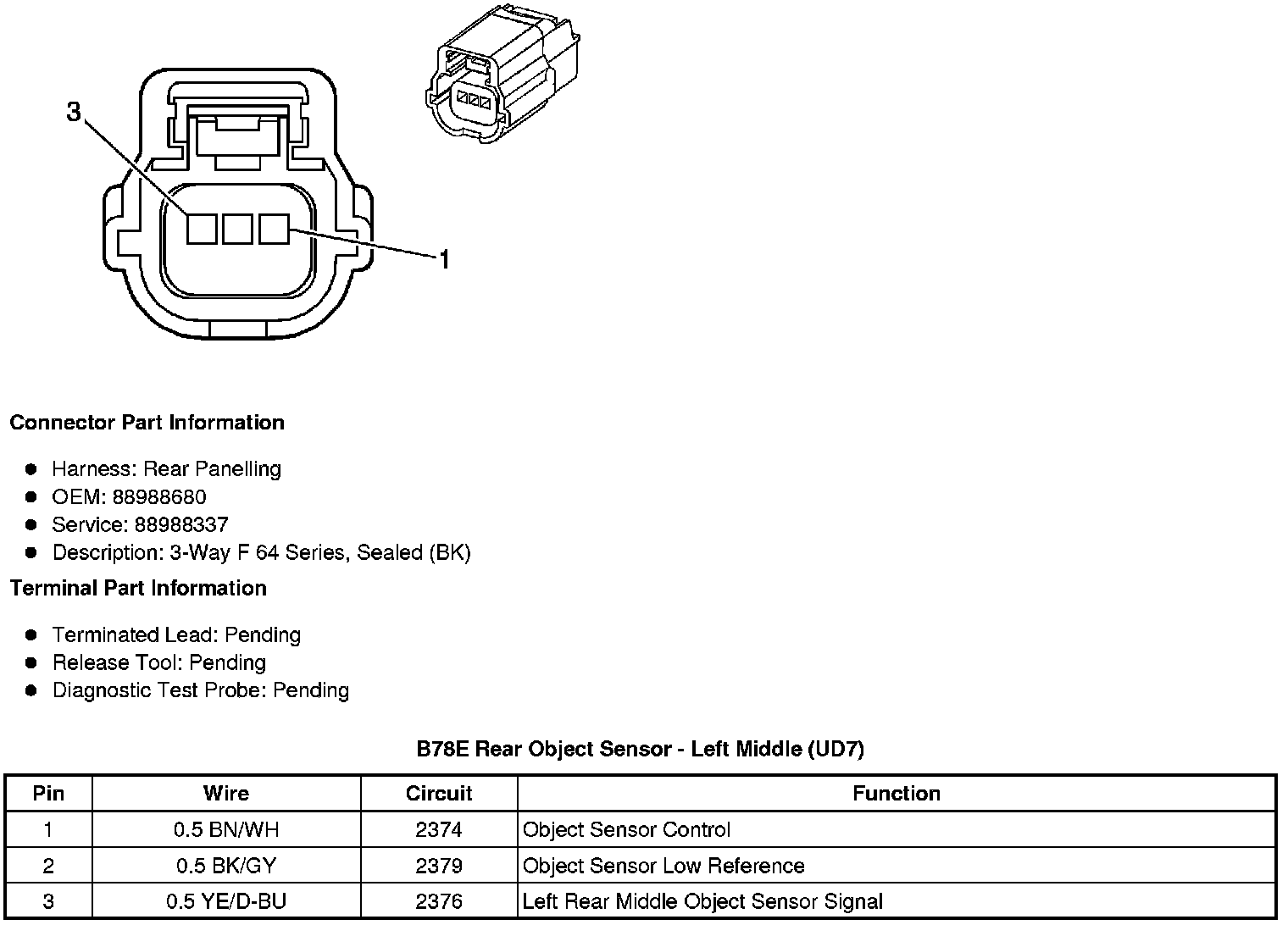

B78E Rear Object Sensor - Left Middle (UD7)

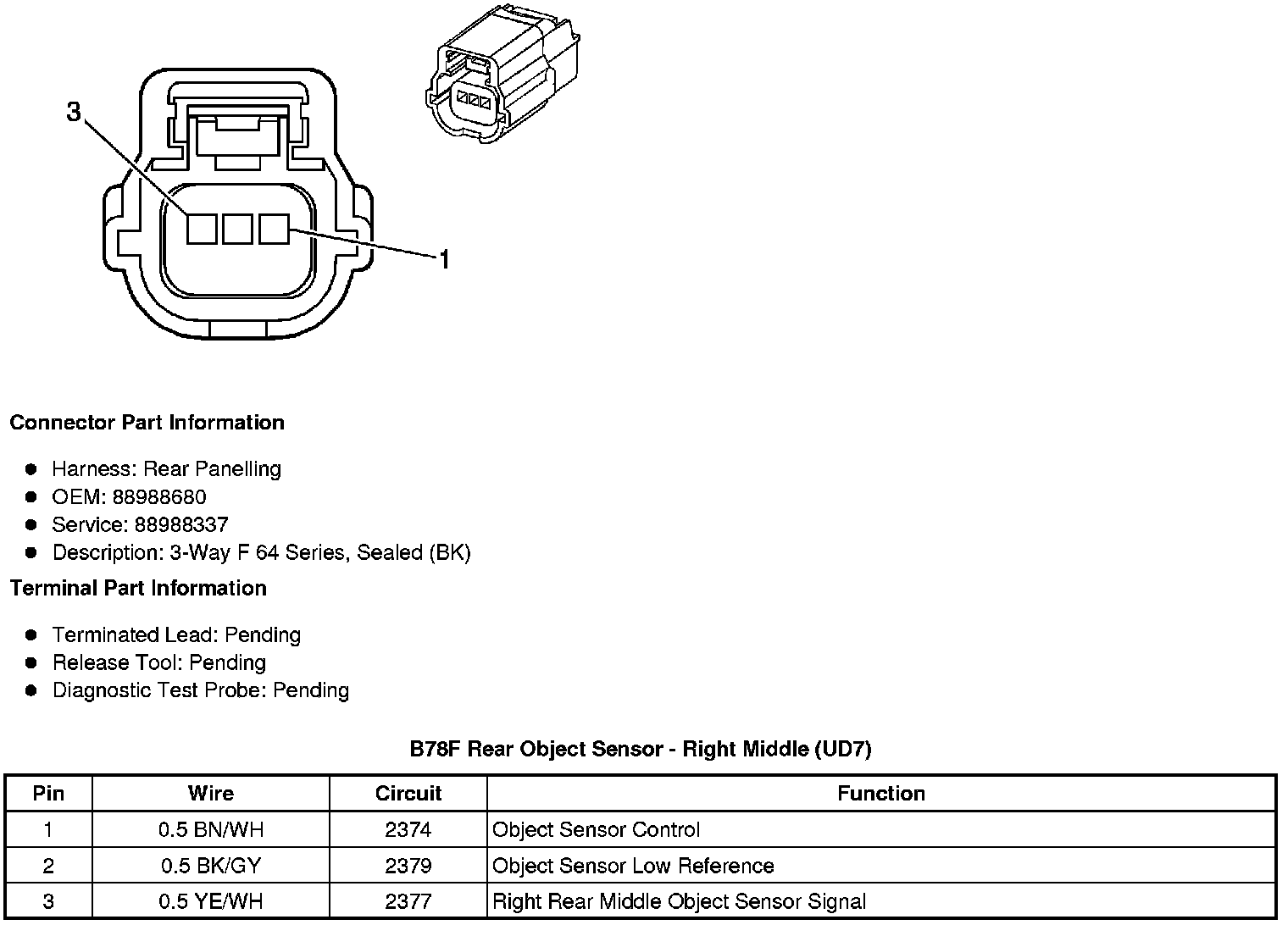

B78F Rear Object Sensor - Right Middle (UD7)






B78G Rear Object Sensor - Left Outer (UD7)






B78H Rear Object Sensor - Right Outer (UD7)
