Control Module HVAC: Locations

Instrument Panel/Center Console Component Views

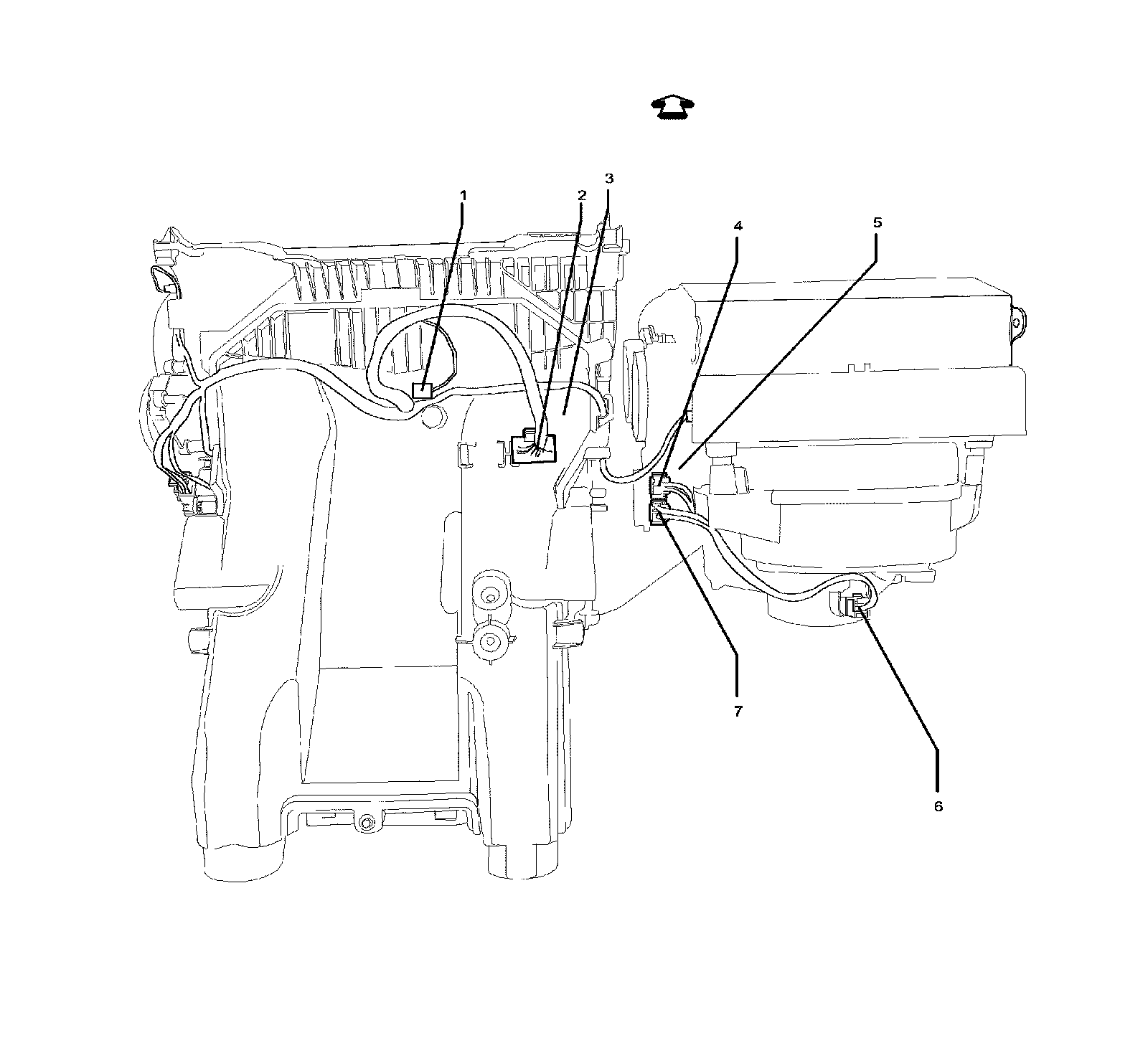

Behind the Center of the I/P Components (C68)




1 - X212 Instrument Panel Harness and HVAC Haness
2 - X3 HVAC Control Module X3
3 - K33 HVAC Control Module
4 - X2 Blower Motor Control Module X2
5 - K8 Blower Motor Control Module
6 - M8 Blower Motor
7 - X1 Blower Motor Control Module X1
