Lower Rear of the Engine Components

Powertrain Component Views

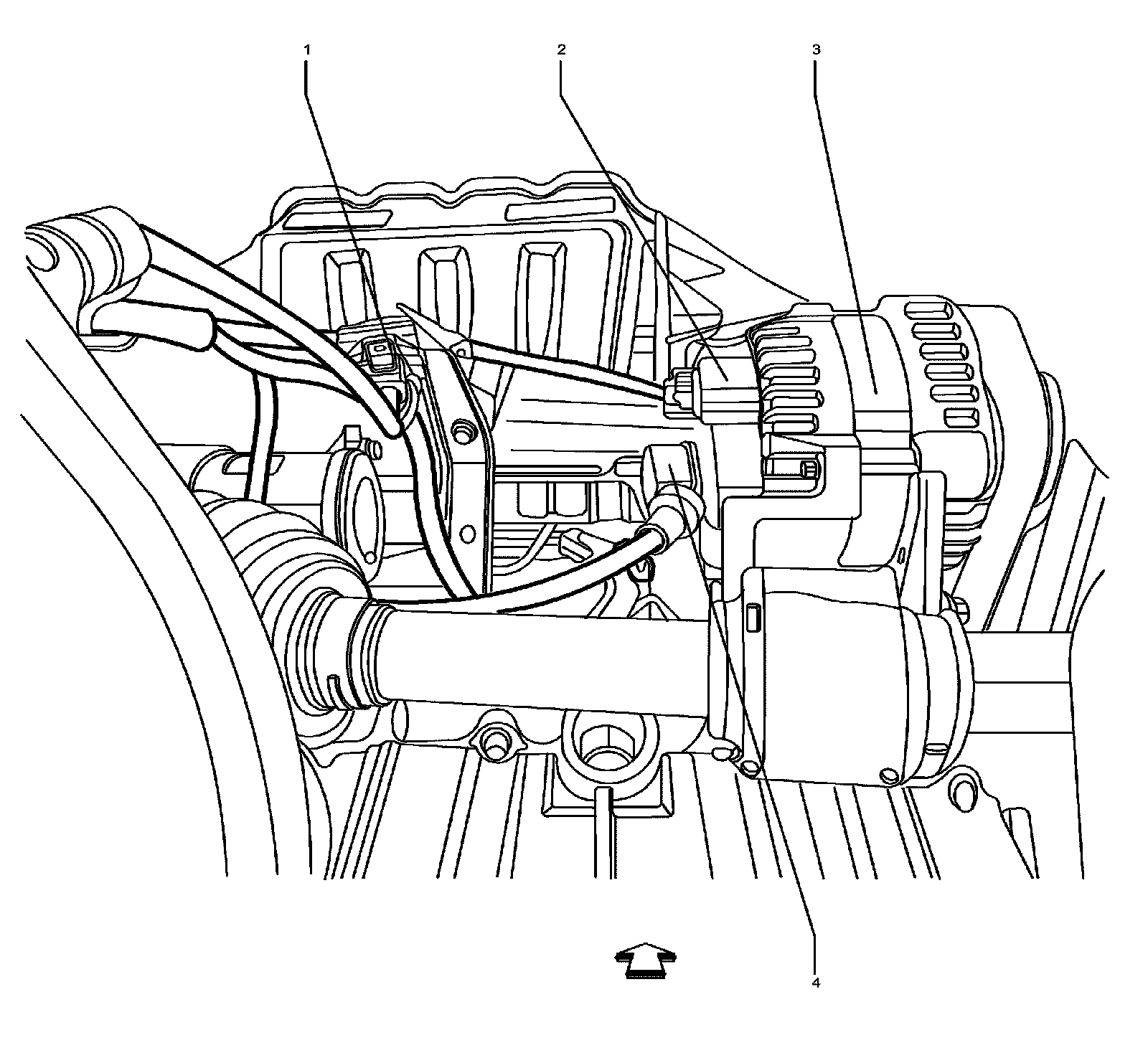

Lower Rear of the Engine Components (LUW)




1 - B52B Heated Oxygen Sensor 2
2 - X2 Generator X2
3 - G13 Generator
4 - X1 Generator X1
