Coolant Temperature Sensor/Switch (For Computer): Locations

Front of Vehicle/Engine Compartment Component Views

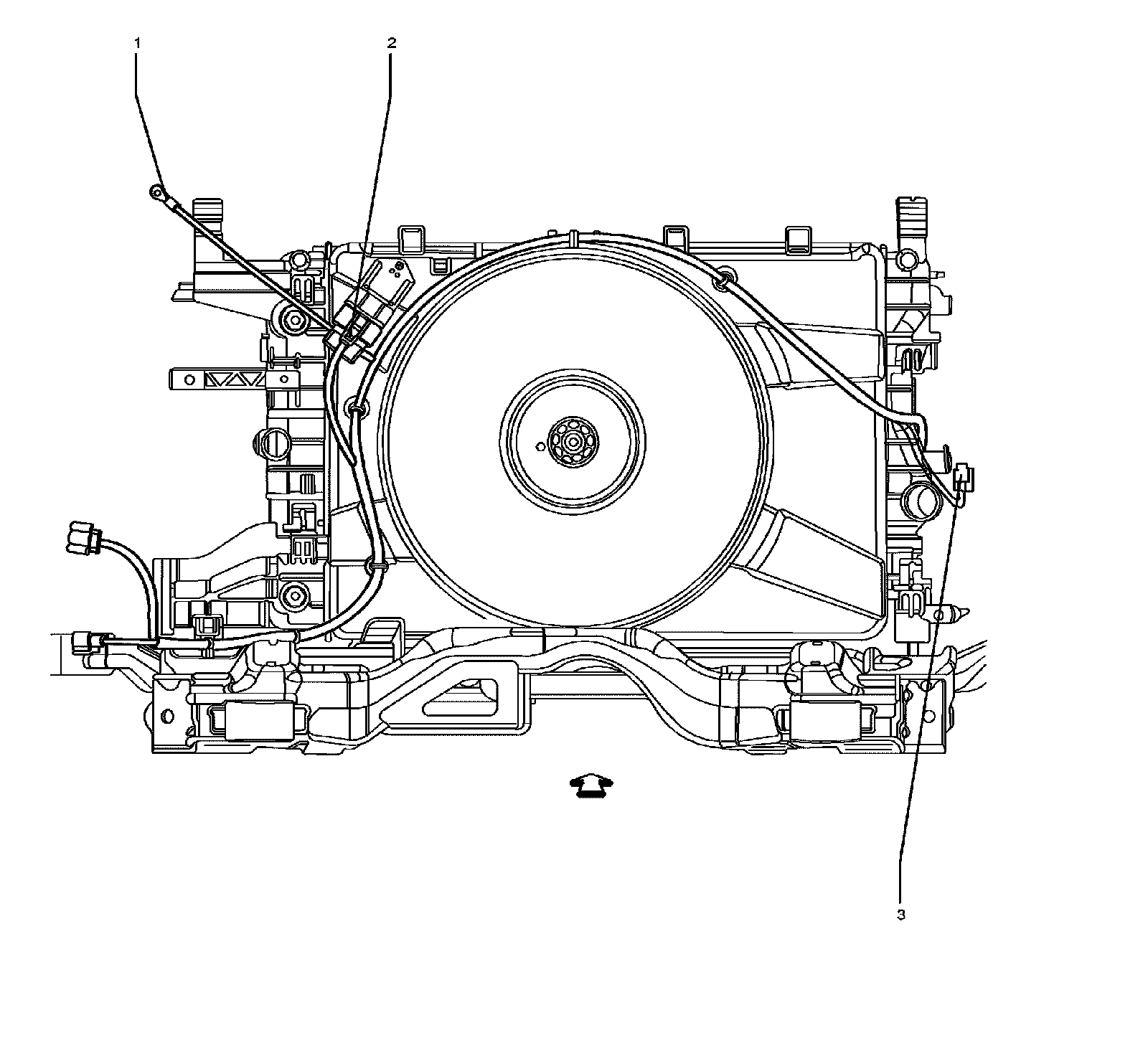

Front of the Engine Compartment Components




1 - G105 Engine Compartment - Front Left
2 - G10 Cooling Fan Motor
3 - B34B Engine Coolant Temperature Sensor 2
