Data Link Connector: Locations

Instrument Panel/Center Console Component Views

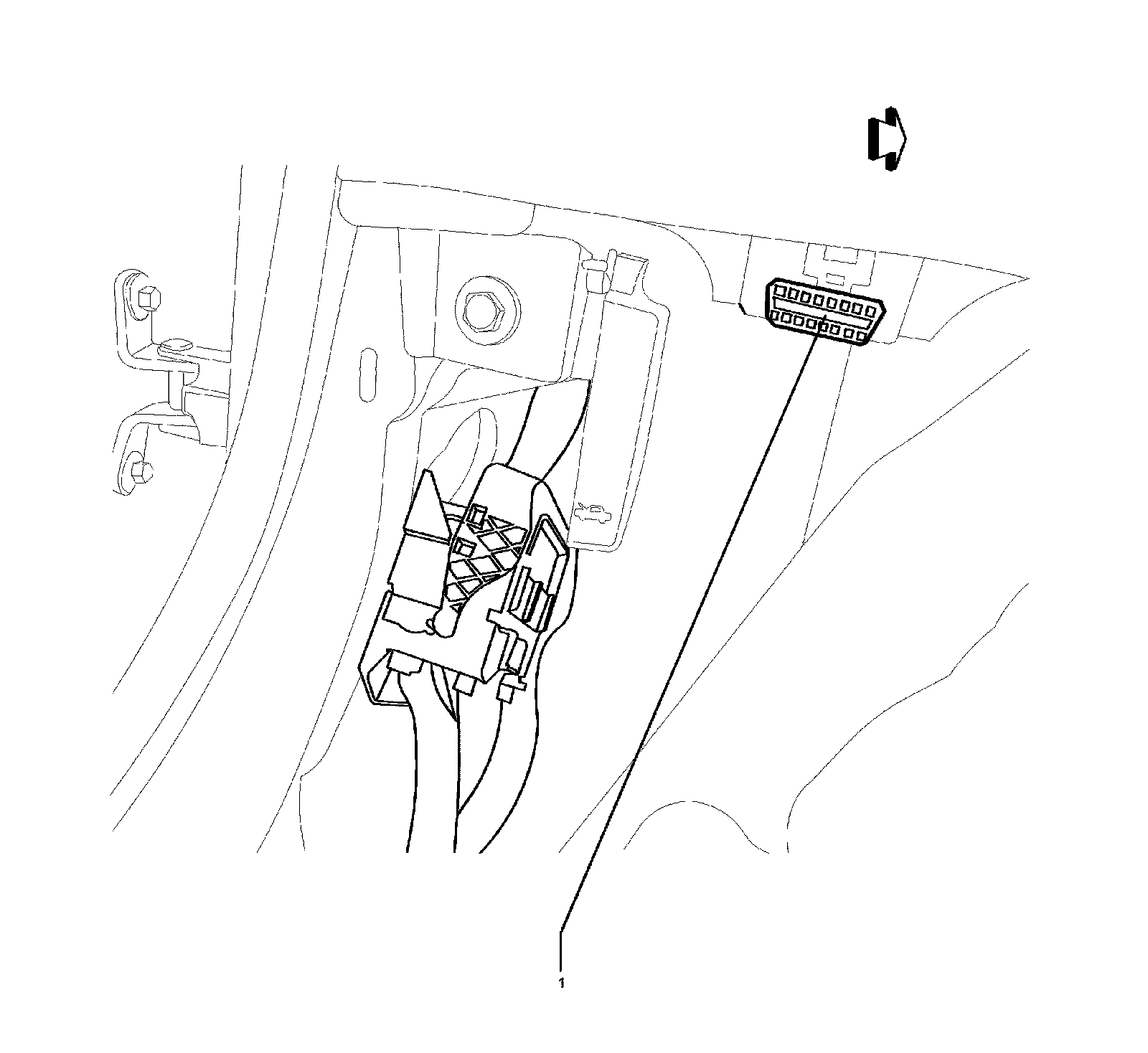

Lower Left of the I/P Components 2 of 2




1 - X84 Data Link Connector

Lower Left of the I/P Components




1 - S30 Headlamp Switch
2 - B25B Clutch Pedal Position Sensor
3 - S78 Turn Signal / Multi-Function Switch
4 - B99 Steering Wheel Angle Sensor
5 - K89 Immobilizer Control Module
6 - B107 Accelerator Pedal Position Sensor
7 - B22 Brake Pedal Position Sensor
8 - X84 Data Link Connector
