Fuel Level Sensor: Locations

Wheels/Vehicle Underbody Component Views

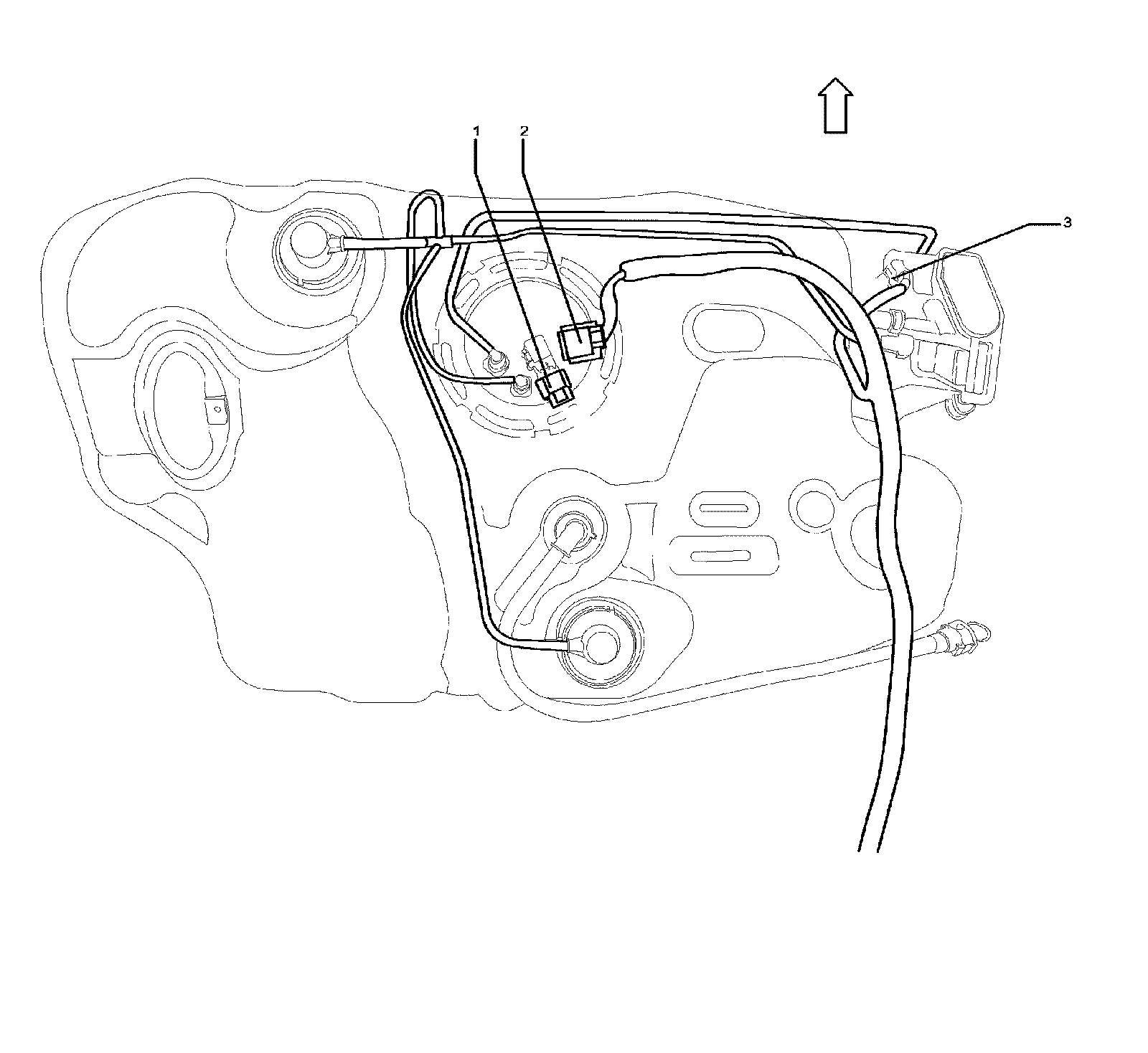

Fuel Tank Components




1 - B150 Fuel Tank Pressure Sensor
2 - A7 Fuel Pump and Level Sensor Assembly
3 - Q13 Evaporative Emission (EVAP) Vent Solenoid Valve
