Control Module: Locations

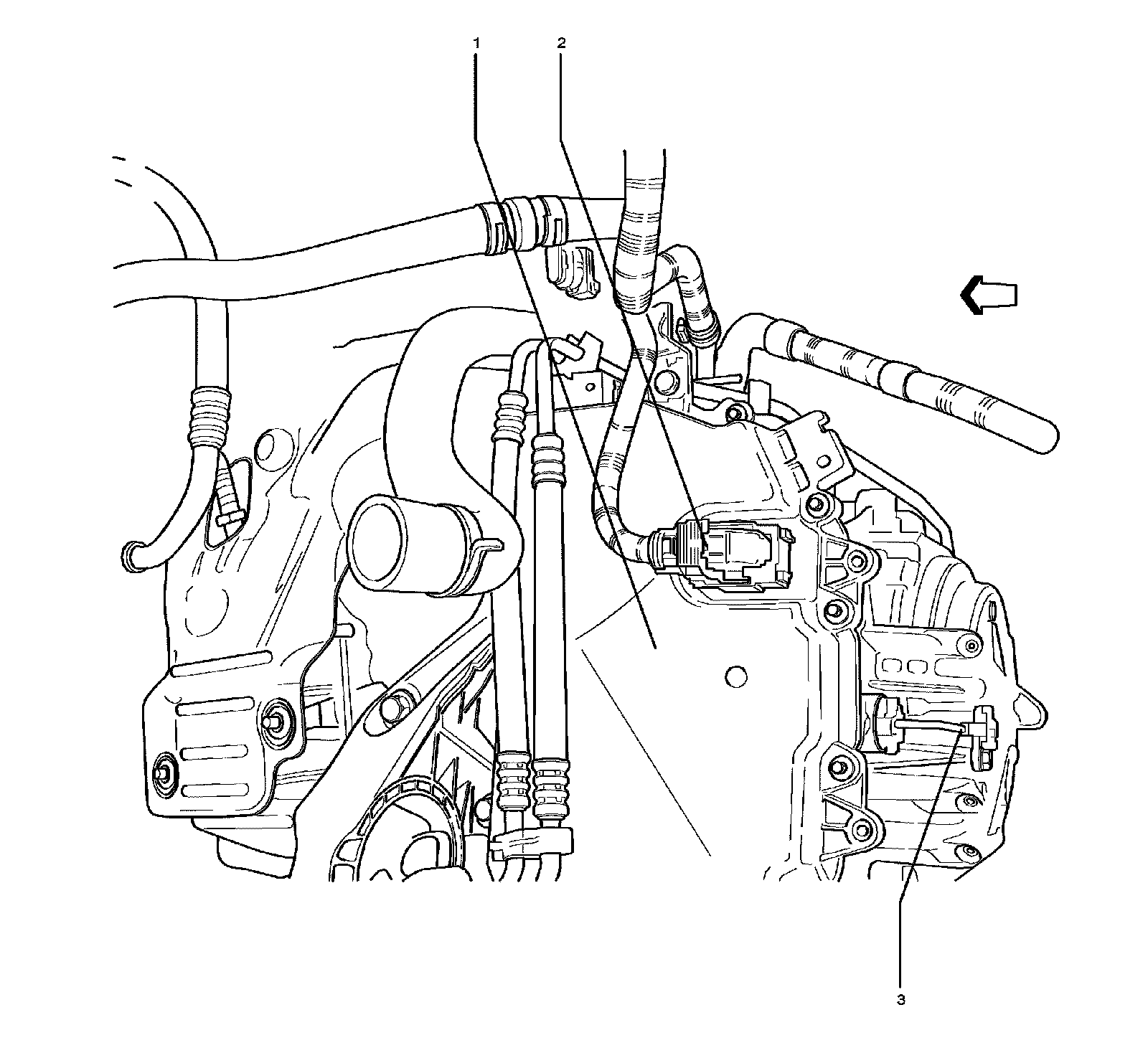

Powertrain Component Views

Transmission Components (MH8)




1 - T12 Automatic Transmission Assembly
2 - X1 Transmission Control Module X1
3 - T12 Automatic Transmission Assembly
