Power Window Motor: Diagrams




Component Connector End Views

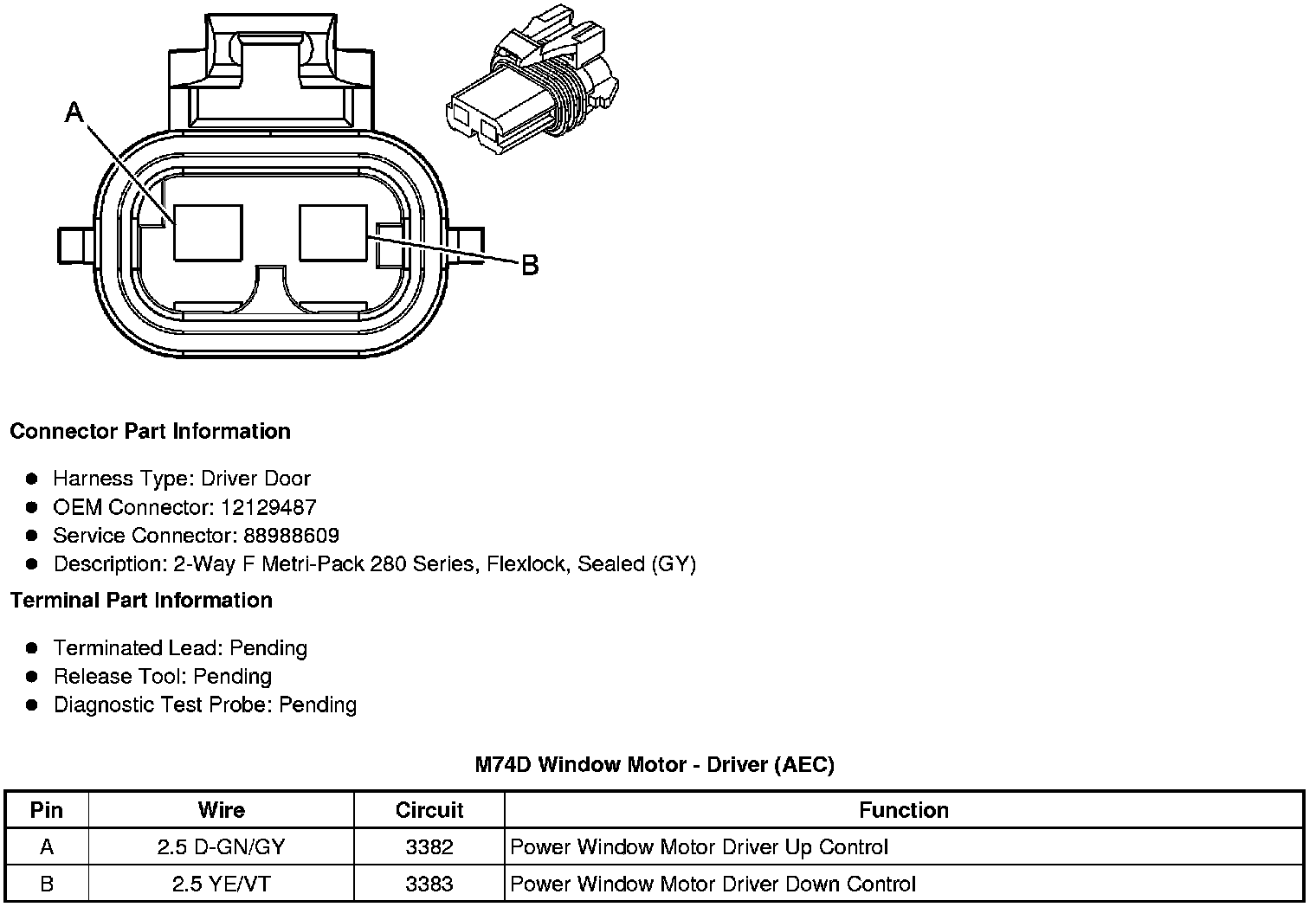

M74D Window Motor - Driver (AEC)

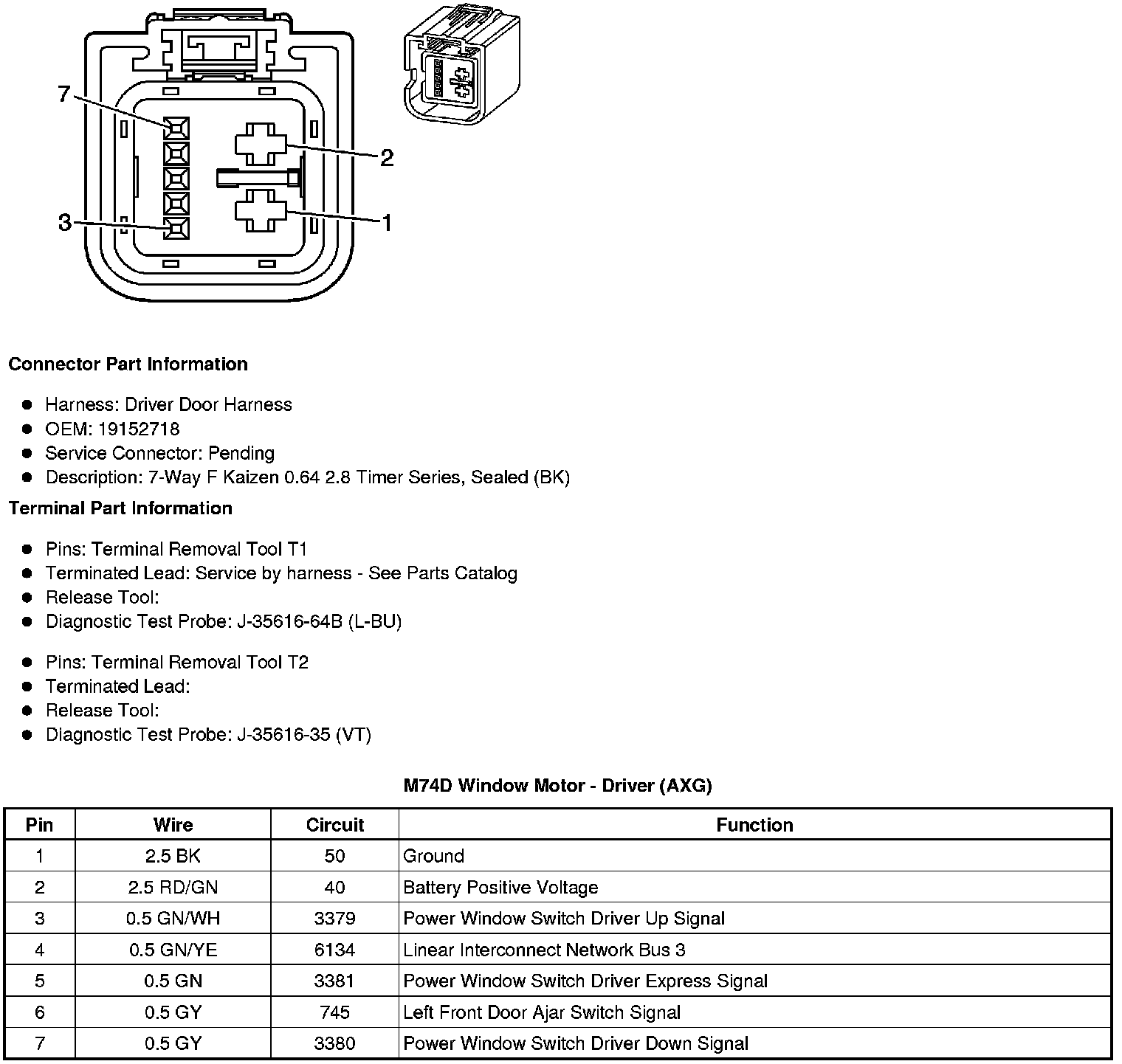

M74D Window Motor - Driver (AXG)

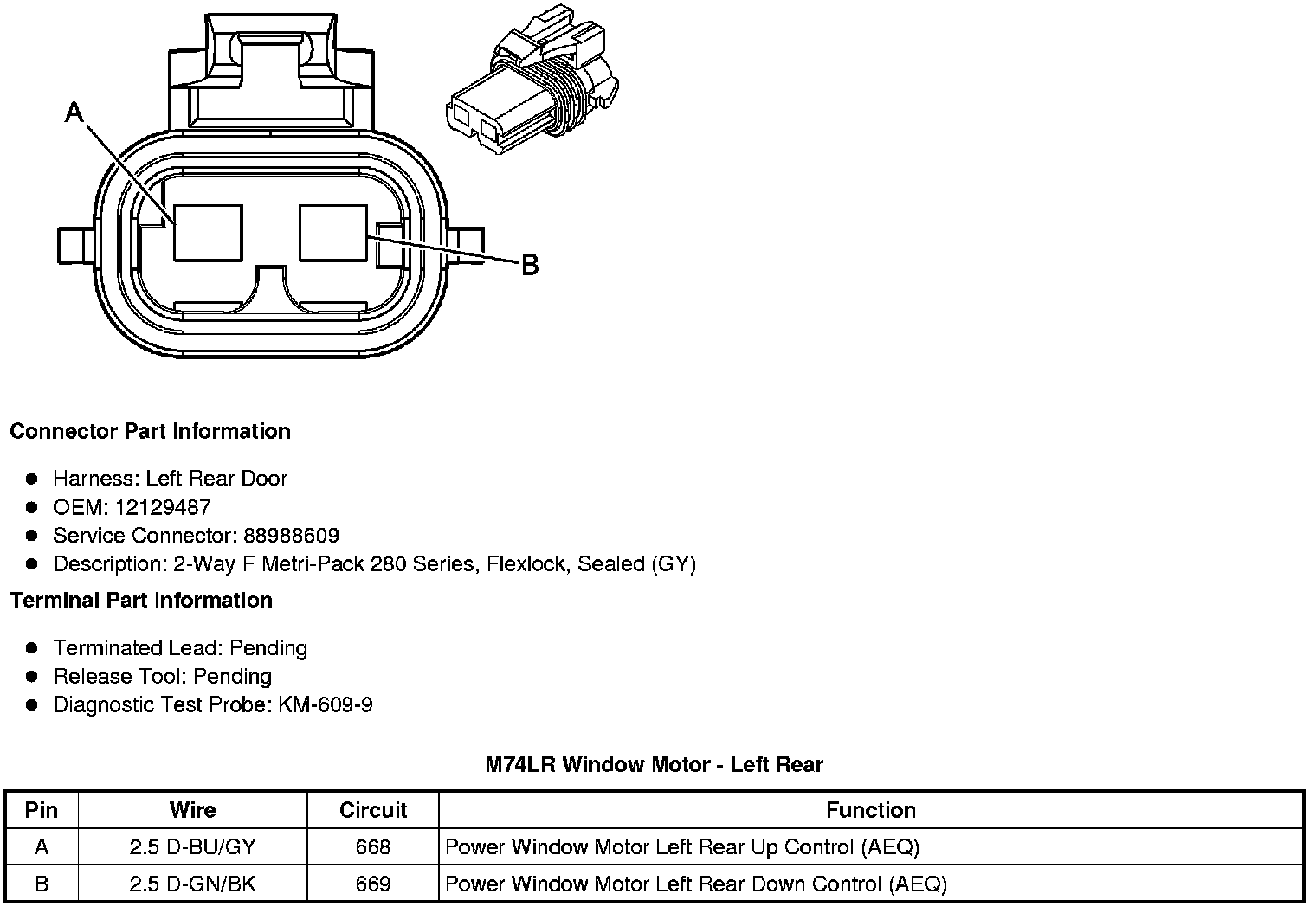

M74LR Window Motor - Left Rear

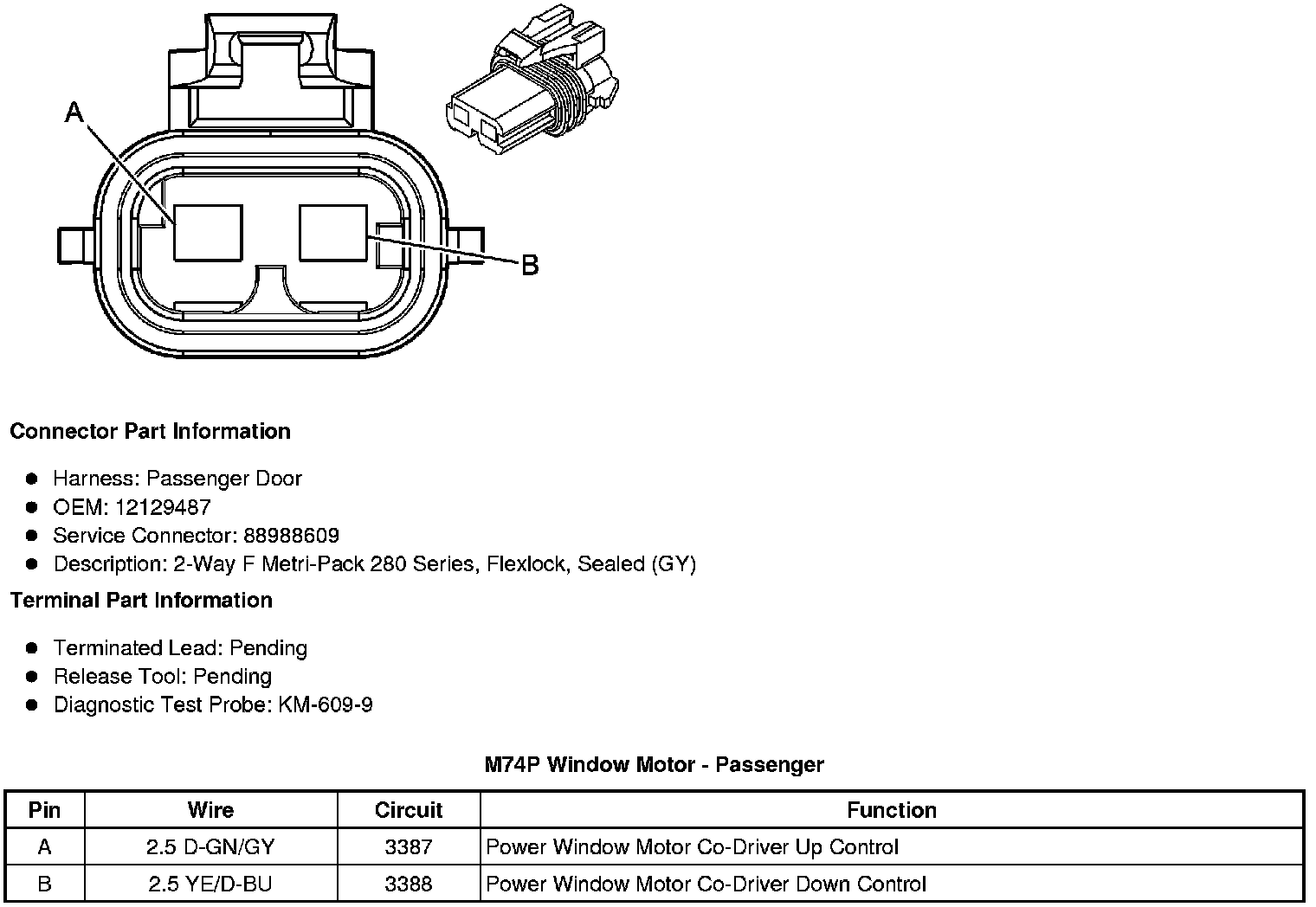

M74P Window Motor - Passenger






M74RR Window Motor - Right Rear
