Camshaft Position Sensor Replacement

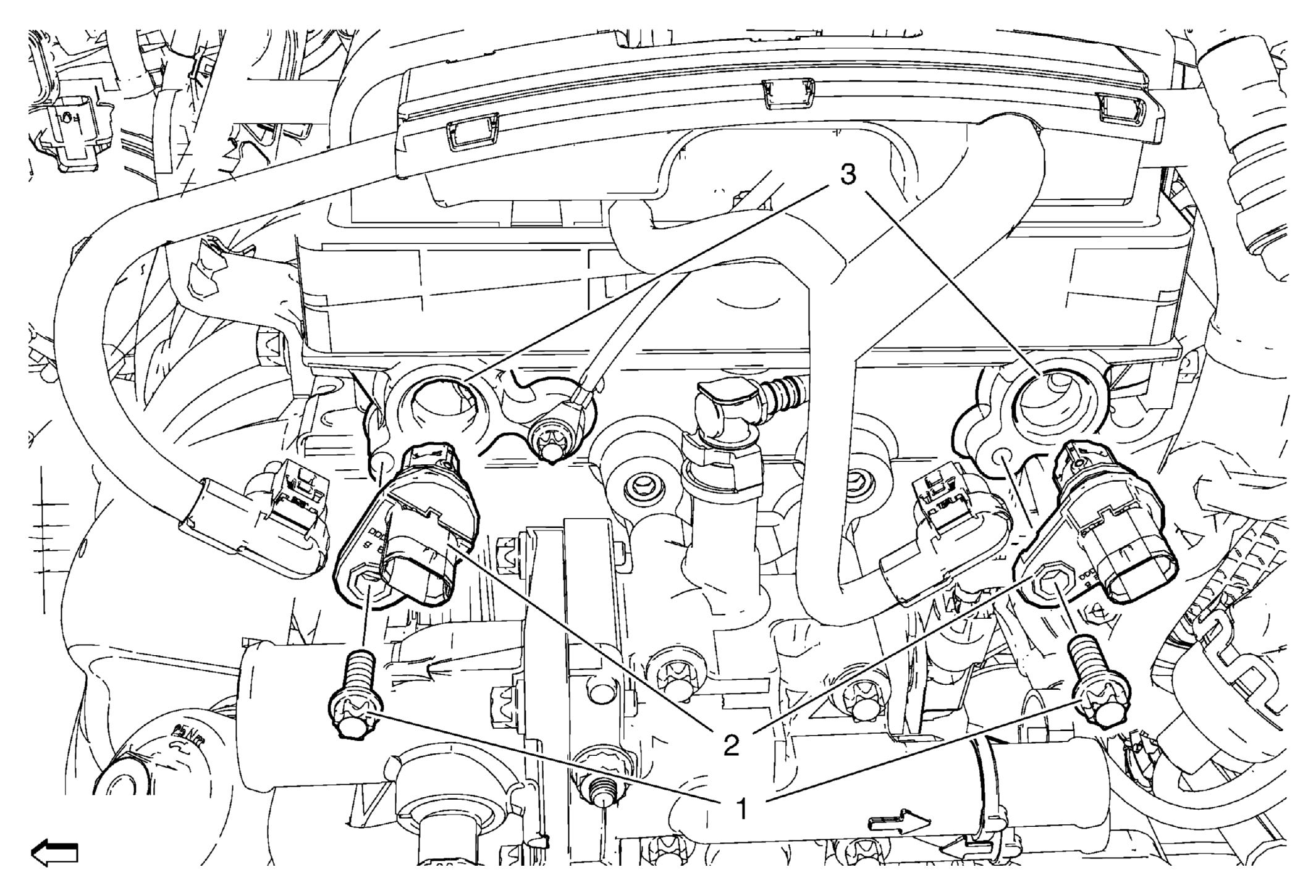

Fig 1: Camshaft Position Sensor (1.8L)
GM2027691Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor Replacement

Callout Component Name
1 Camshaft Position Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
6 N.m (53 lb in)
2 Camshaft Position Sensor
Procedure
Disconnect electrical connectors as needed.
3 Camshaft Position Sensor Seal Ring
