Body Control System Schematics

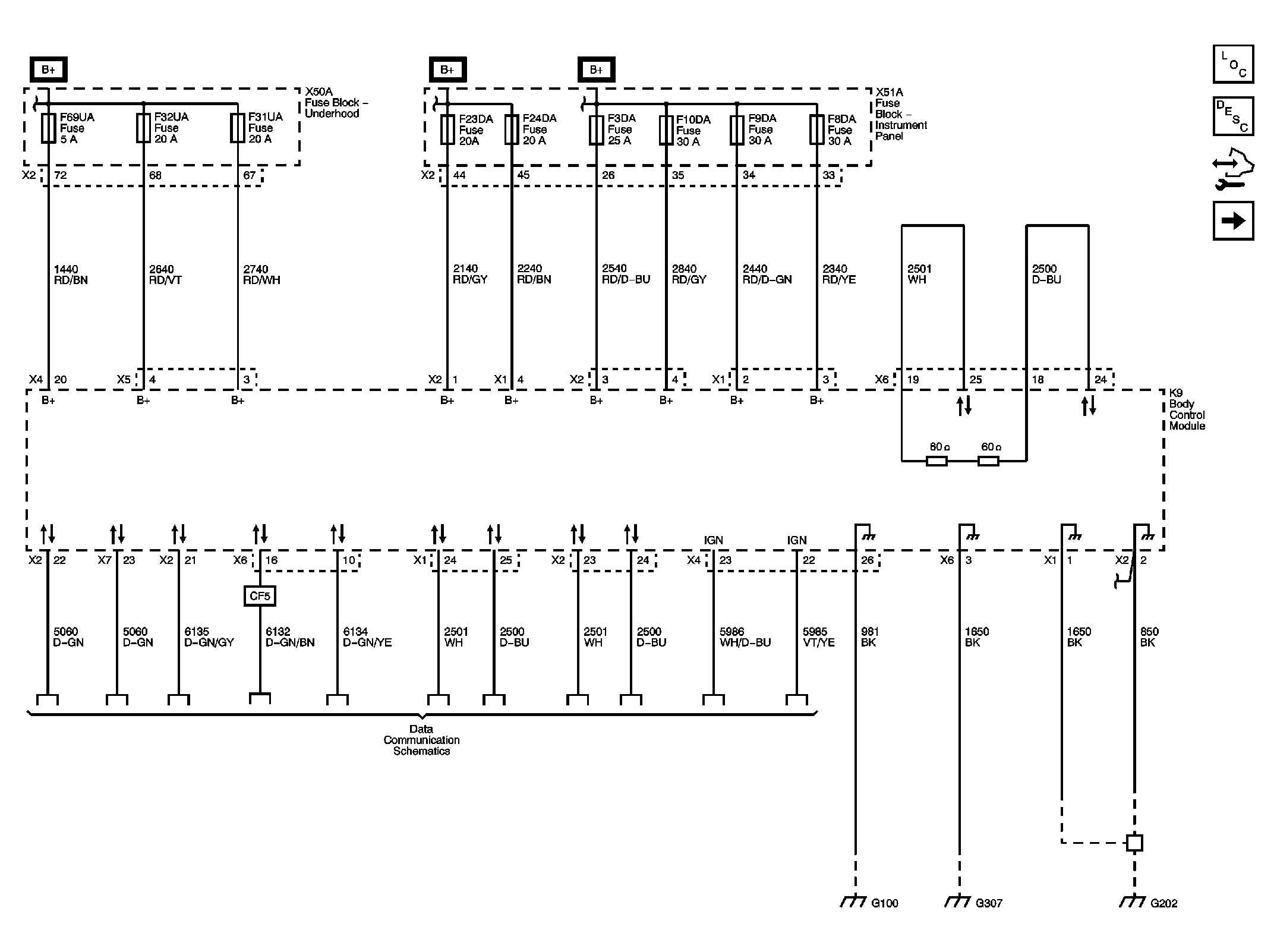

Fig 1: Power, Ground, and Data Communications and Subsystem References Wiring Schematic (1 of 4)

Courtesy of GENERAL MOTORS CORP.

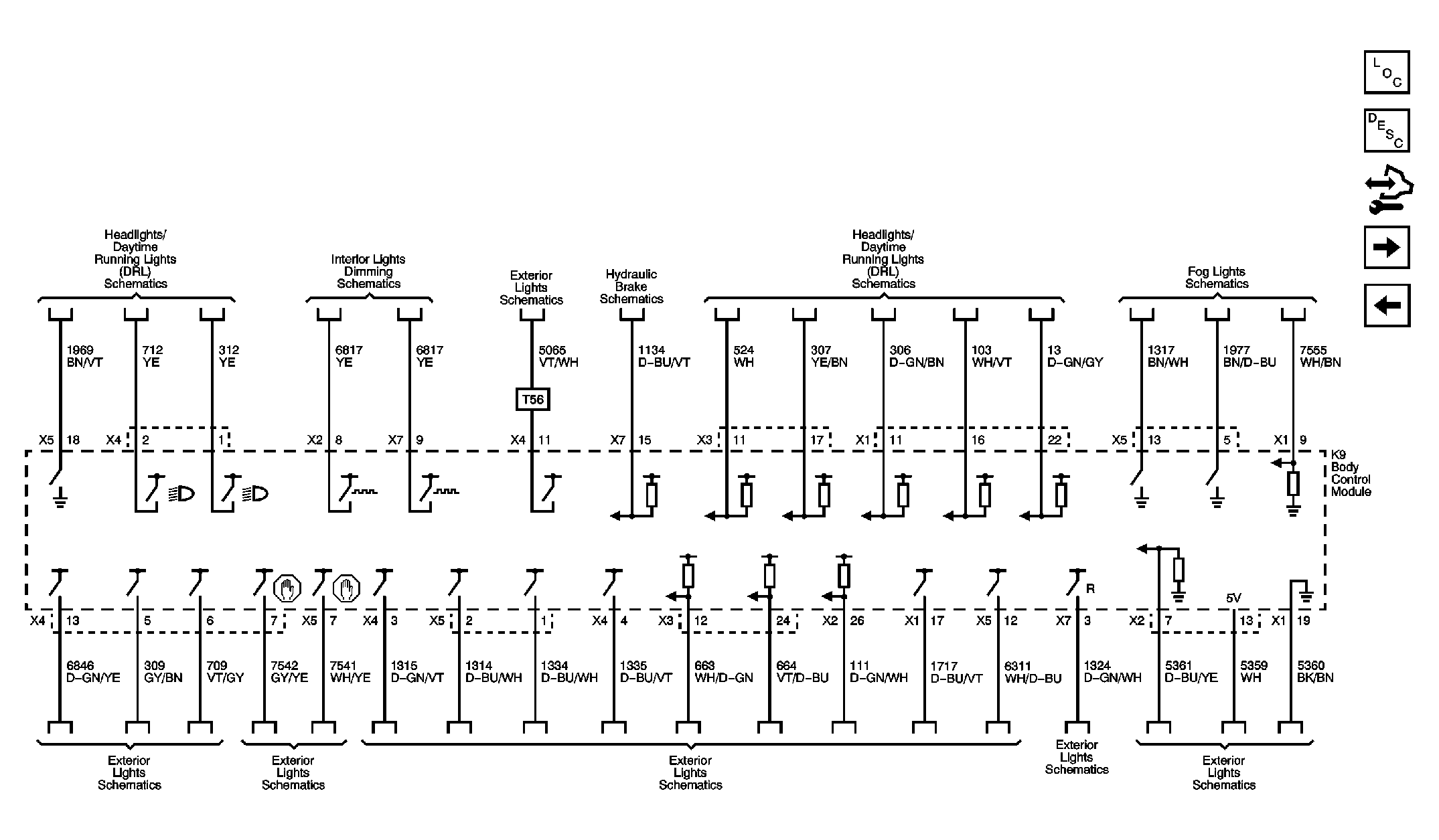

Fig 2: Subsystem References Wiring Schematic (2 of 4)

Courtesy of GENERAL MOTORS CORP.

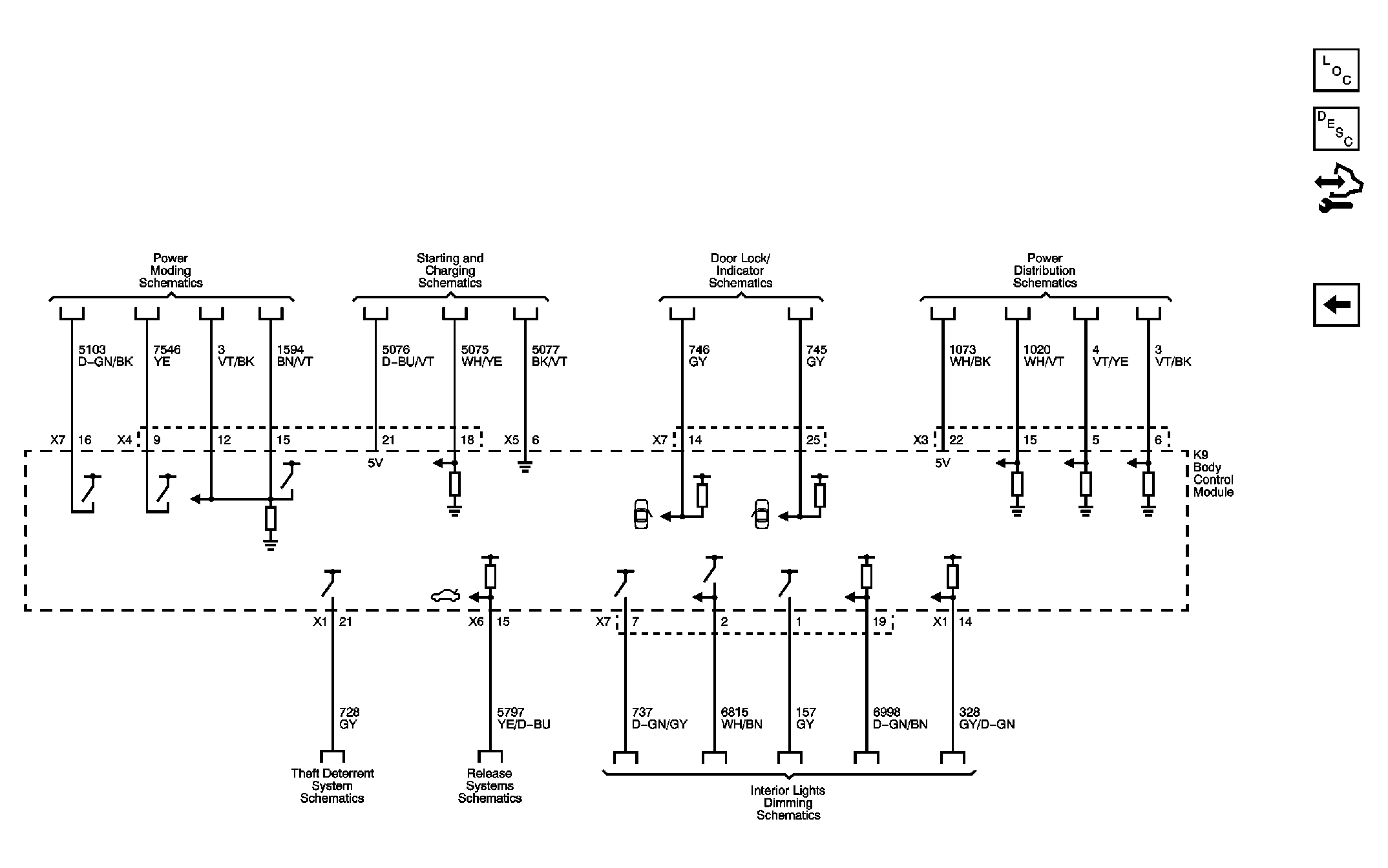

Fig 3: Subsystem References Wiring Schematic (3 of 4)

Courtesy of GENERAL MOTORS CORP.

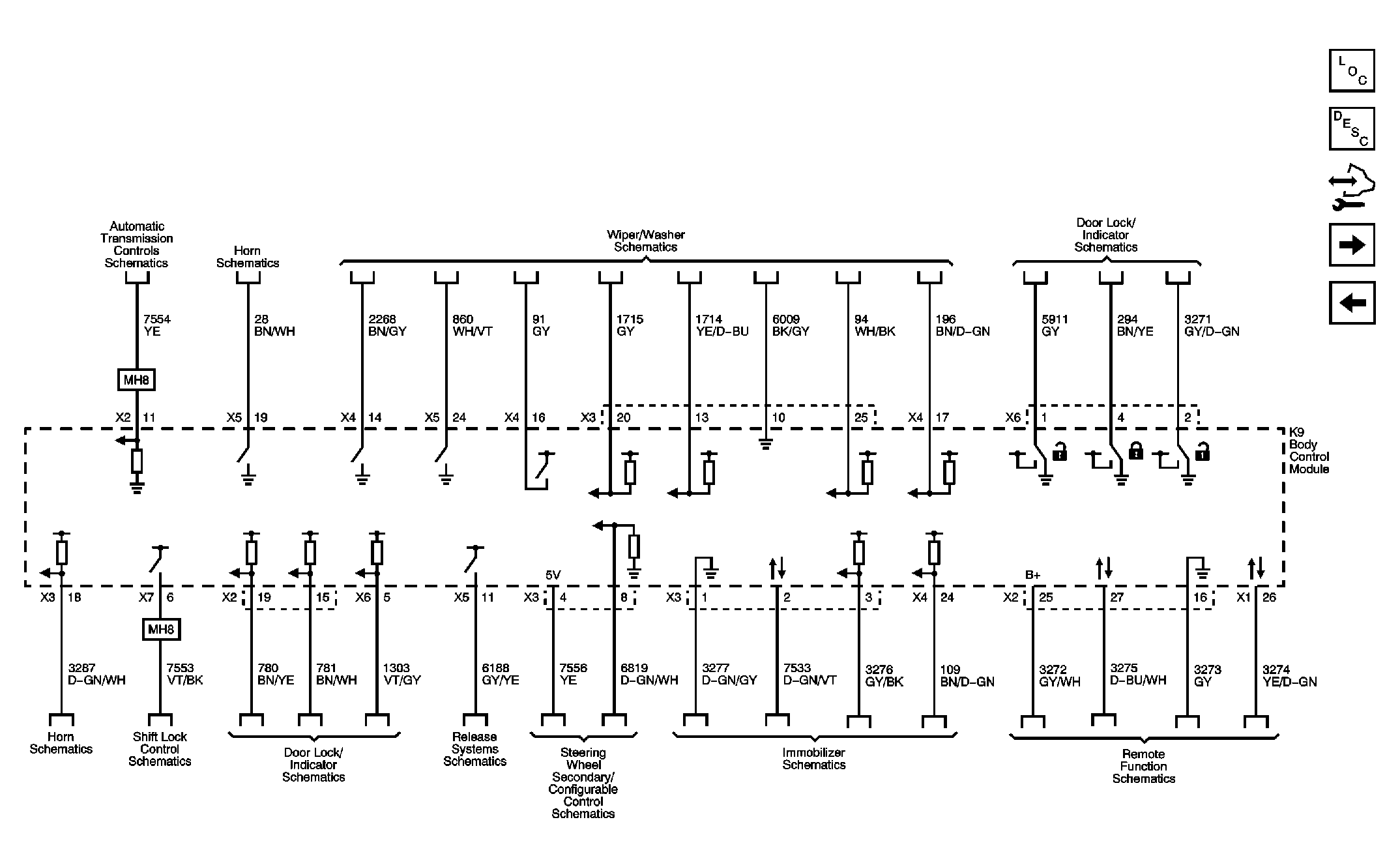

Fig 4: Subsystem References Wiring Schematic (4 of 4)

Courtesy of GENERAL MOTORS CORP.
