Data Communication System Wiring Schematics

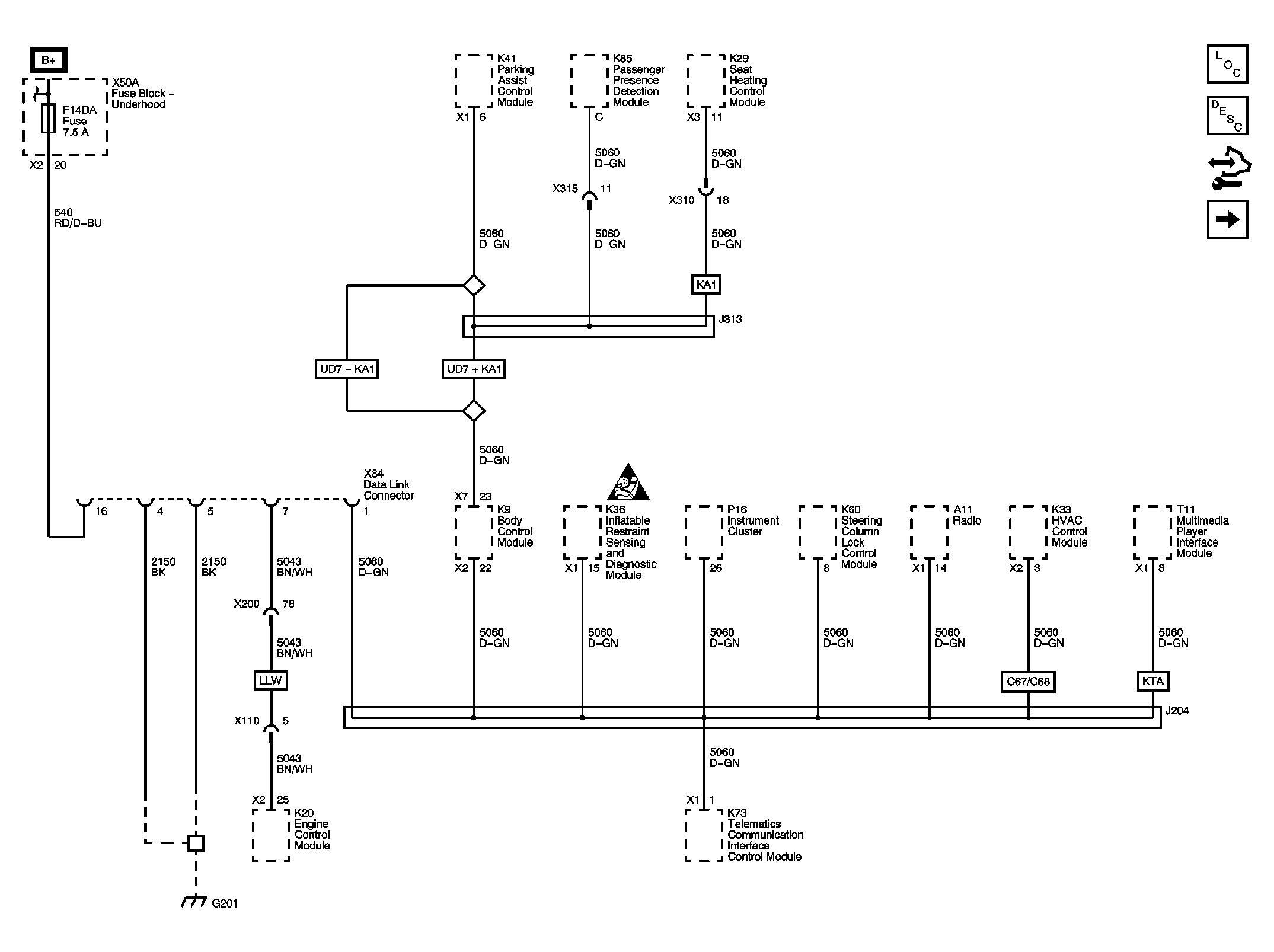

Fig 1: Low Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

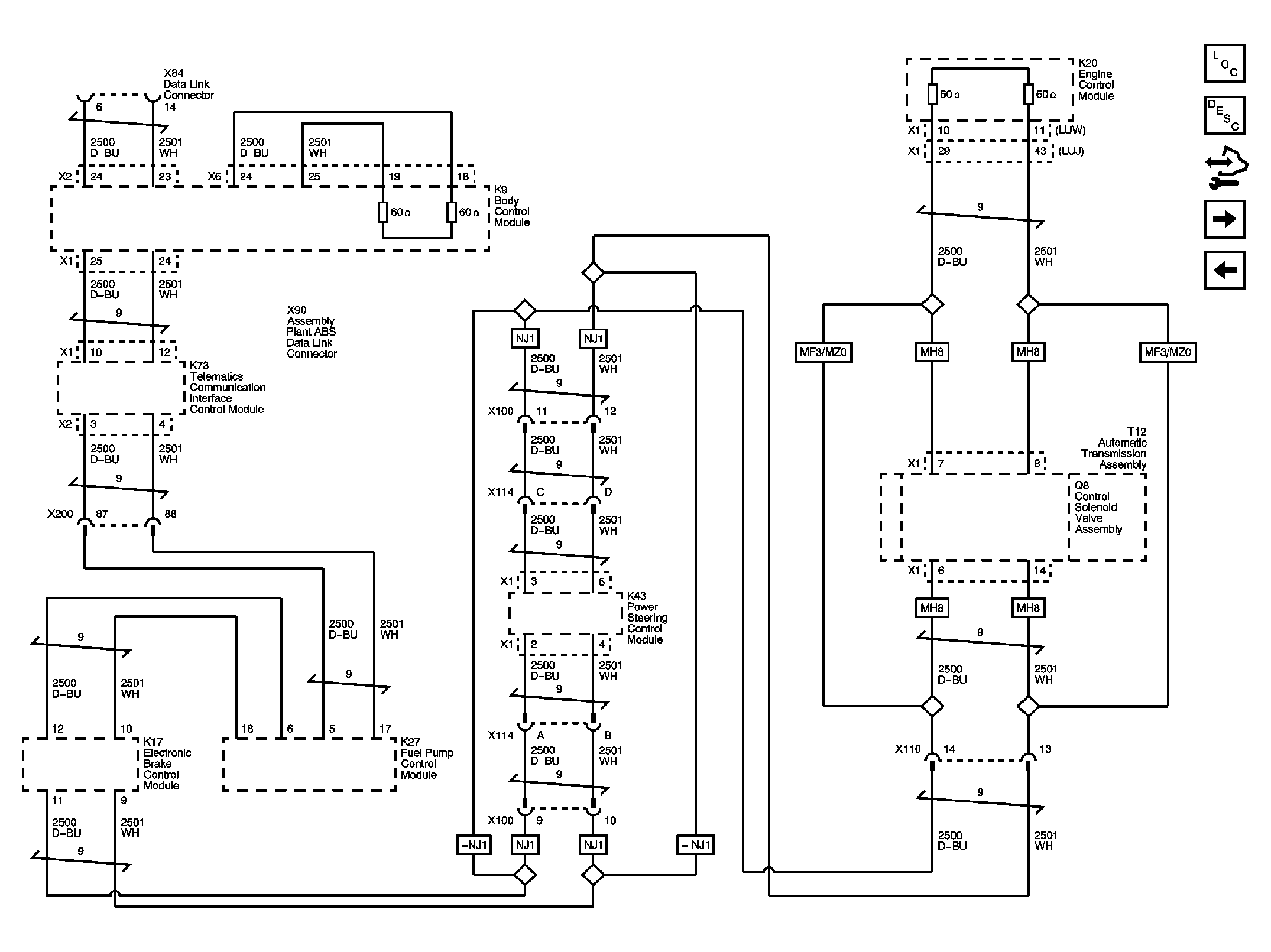

Fig 2: High Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

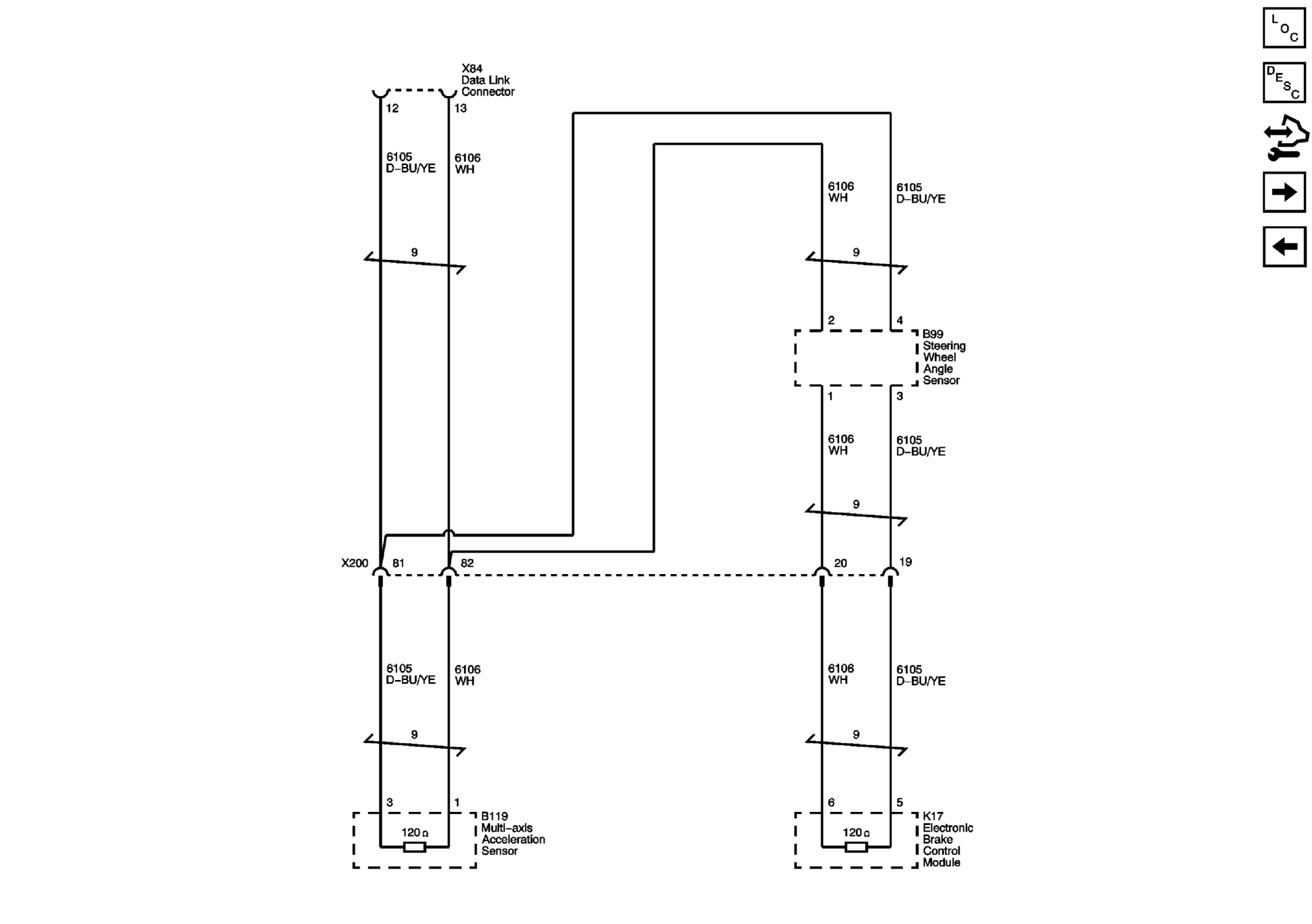

Fig 3: Chassis Expansion Bus Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

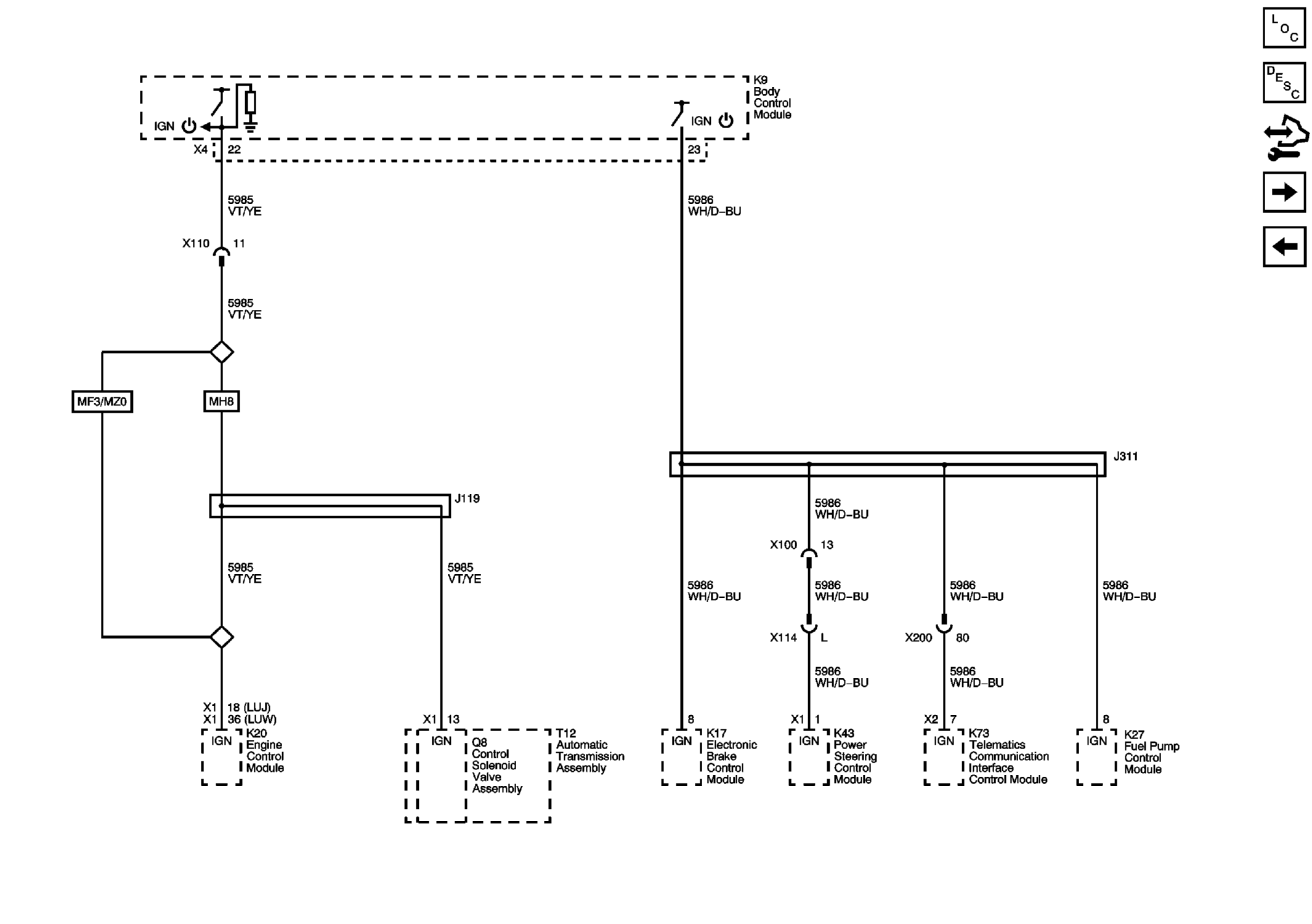

Fig 4: Enable Serial Data Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

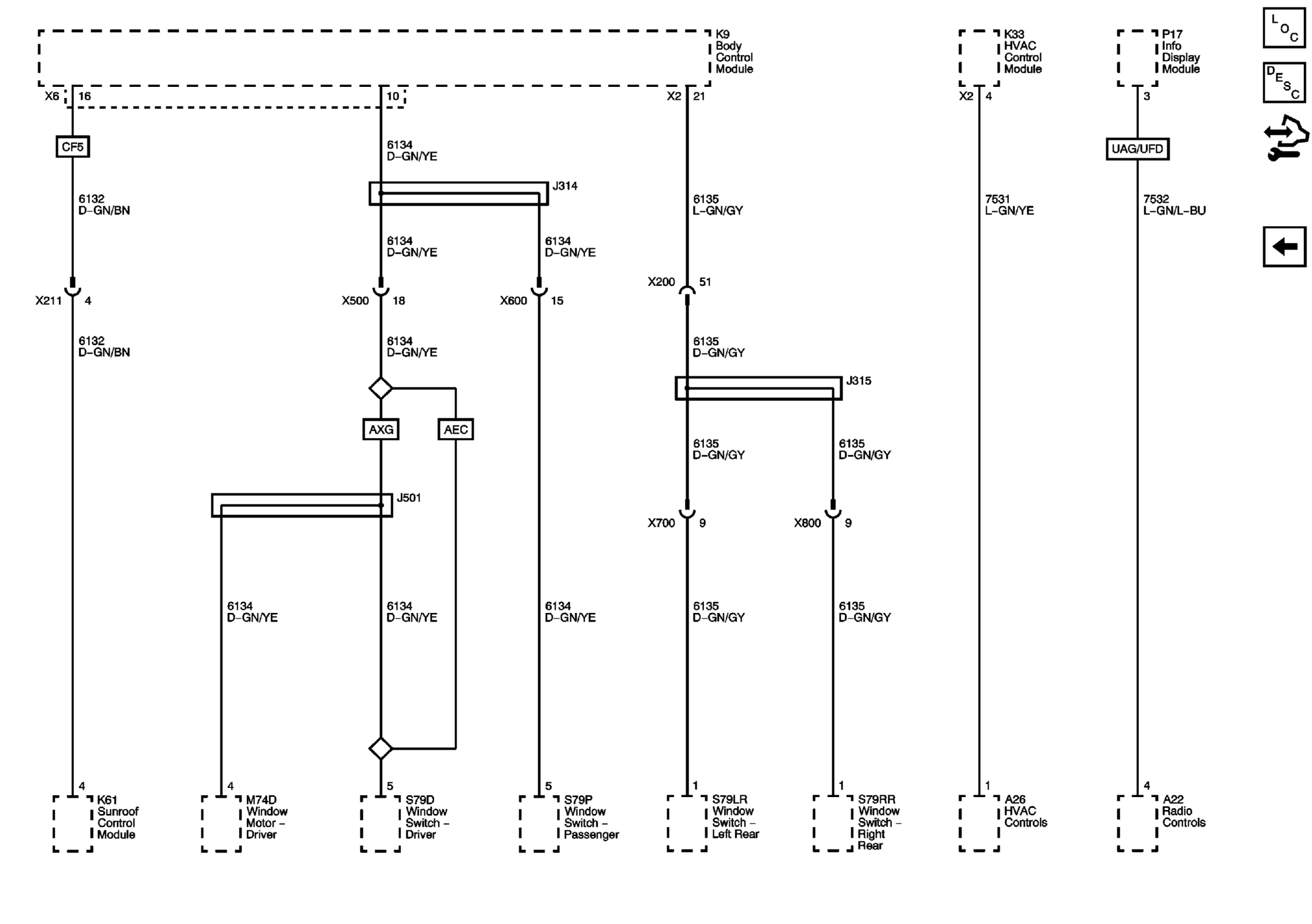

Fig 5: Local Interconnect Network (LIN) Serial Data Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
