Air Cleaner Assembly Replacement

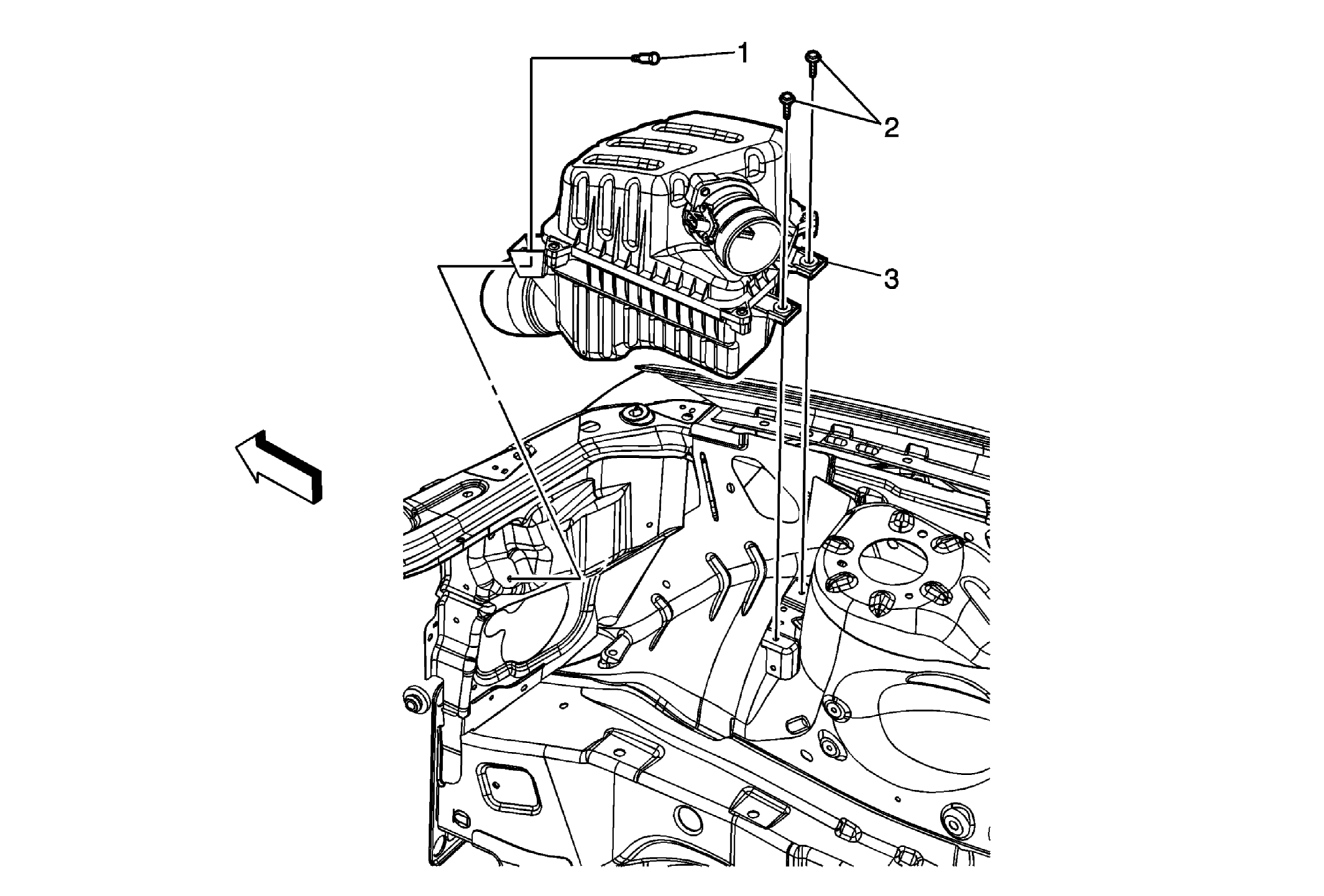

Fig 1: Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Assembly Bolt CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Air Cleaner Assembly Bolt (Qty: 2) Tighten: 6 N.m (53 lb in)
3	Air Cleaner Assembly Procedure Disconnect any electrical connectors as needed. Transfer any parts as needed.
