Air Cleaner Element Replacement

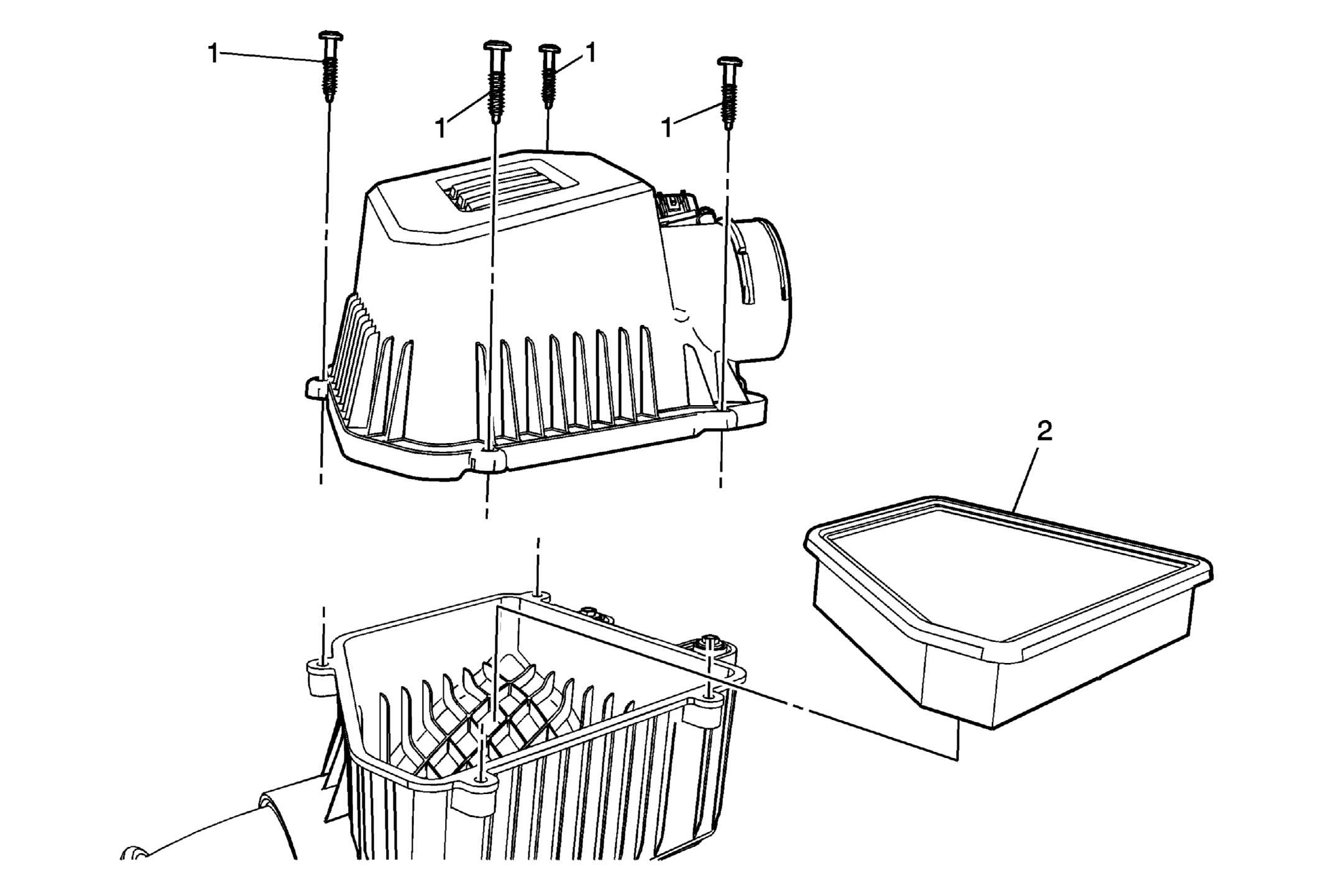

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the air cleaner outlet duct from the air cleaner. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Fastener (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Air Cleaner Element Procedure Disconnect the mass airflow with intake air temperature sensor. Disconnect the throttle inlet absolute pressure sensor.

Callout

Component Name

Preliminary Procedure:
Disconnect the air cleaner outlet duct from the air cleaner. Refer to Air Cleaner Outlet Duct Replacement .

Air Cleaner Fastener (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Air Cleaner Element

Procedure
