Fuel Line Replacement - Chassis

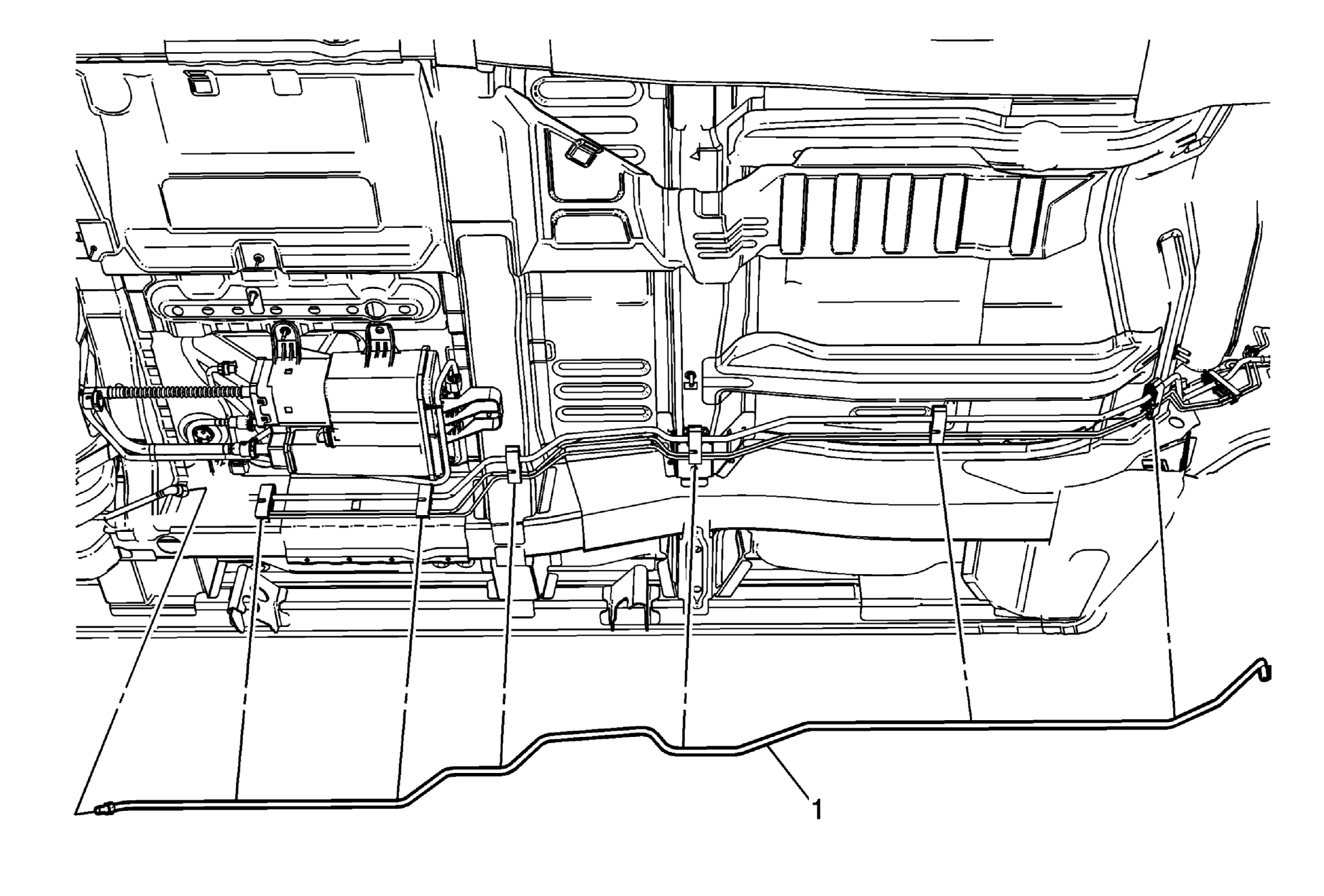

Fig 1: Fuel Line - Chassis
GM2240902Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
  2. Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  4. Disconnect the quick connectors. Refer to Metal Collar Quick Connect Fitting Service and Plastic Collar Quick Connect Fitting Service .
1 Fuel Feed Line
Procedure:
Disengage the line from the plastic retainers.
