Removal Procedure
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief .
Courtesy of GENERAL MOTORS CORP.
- Raise and suitably support the vehicle. Refer to Lifting and Jacking the Vehicle
.

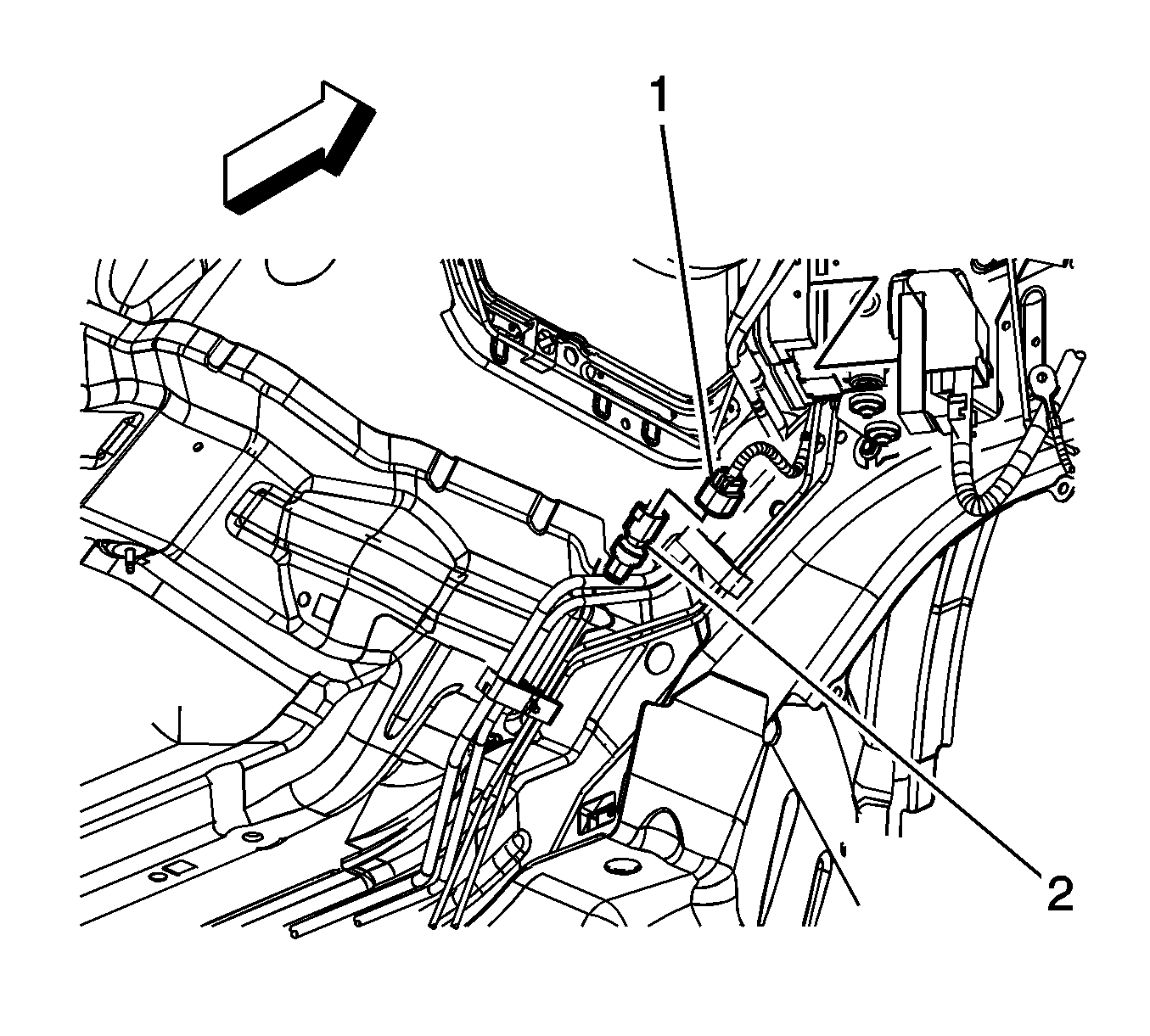

- Disconnect the body wiring harness electrical connector (1) from the fuel pressure sensor (2).
Courtesy of GENERAL MOTORS CORP.

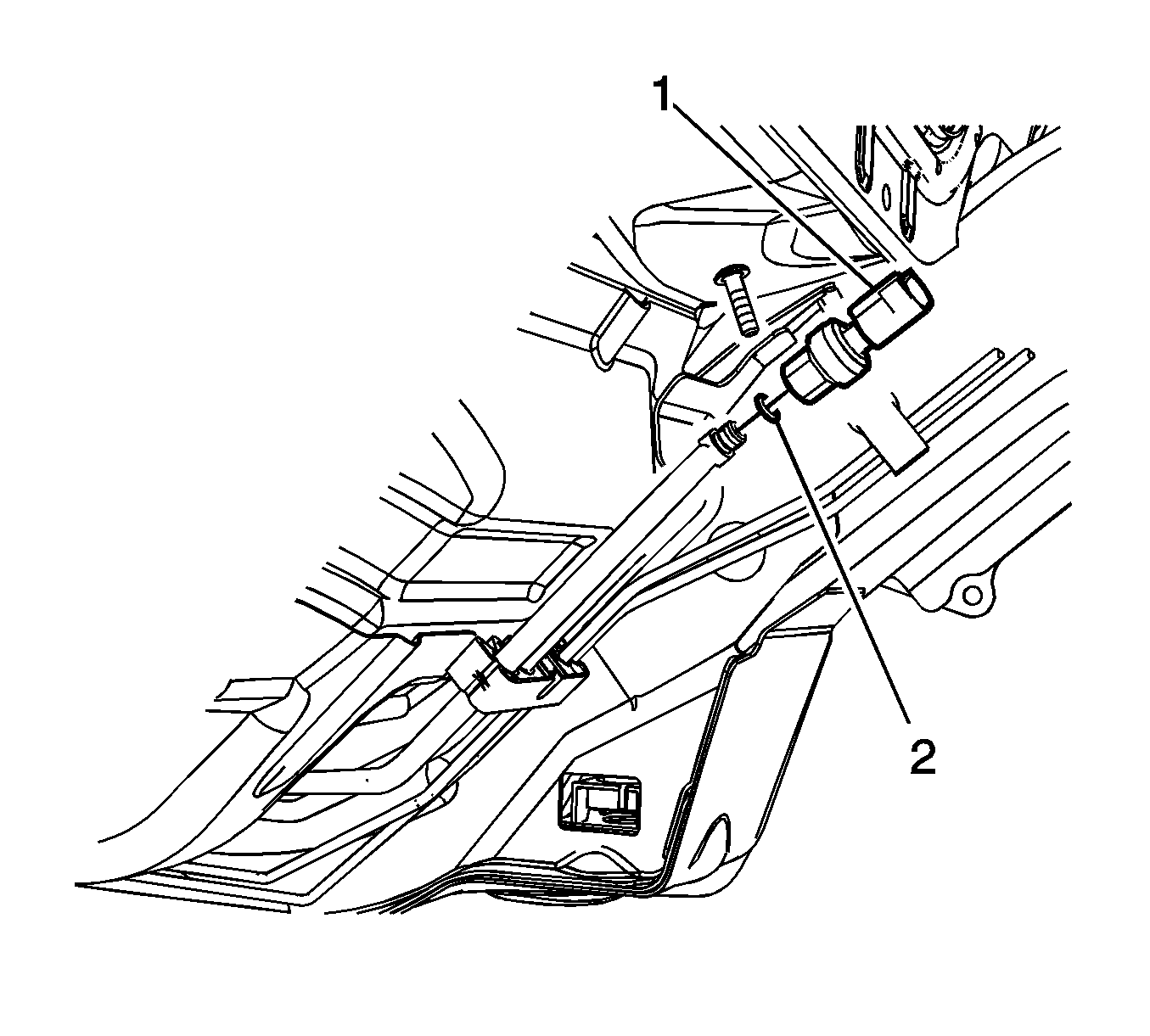

- Wrap a shop towel around the fuel pressure sensor fitting in order to absorb any fuel that may leak out.
- Remove the fuel pressure sensor (1) from the fuel line.
- Remove and discard the fuel pressure sensor O-ring seal (2).
