Installation Procedure

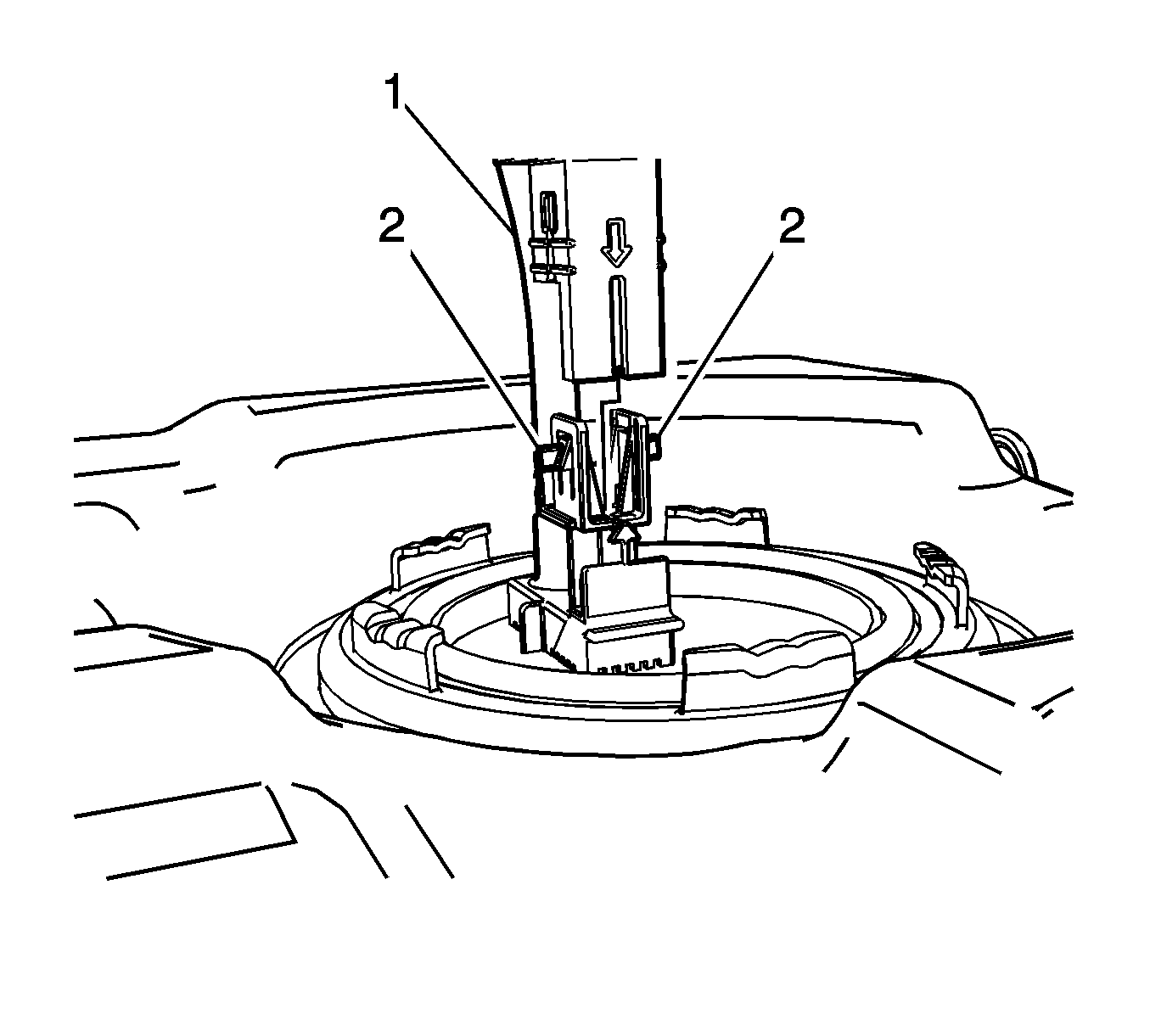

    Fig 1: Crossover Tube & Plastic Retaining Tabs
    GM2239779Courtesy of GENERAL MOTORS CORP.
  1. Partially install the secondary fuel pump module and connect the crossover tube (1) by sliding into position.

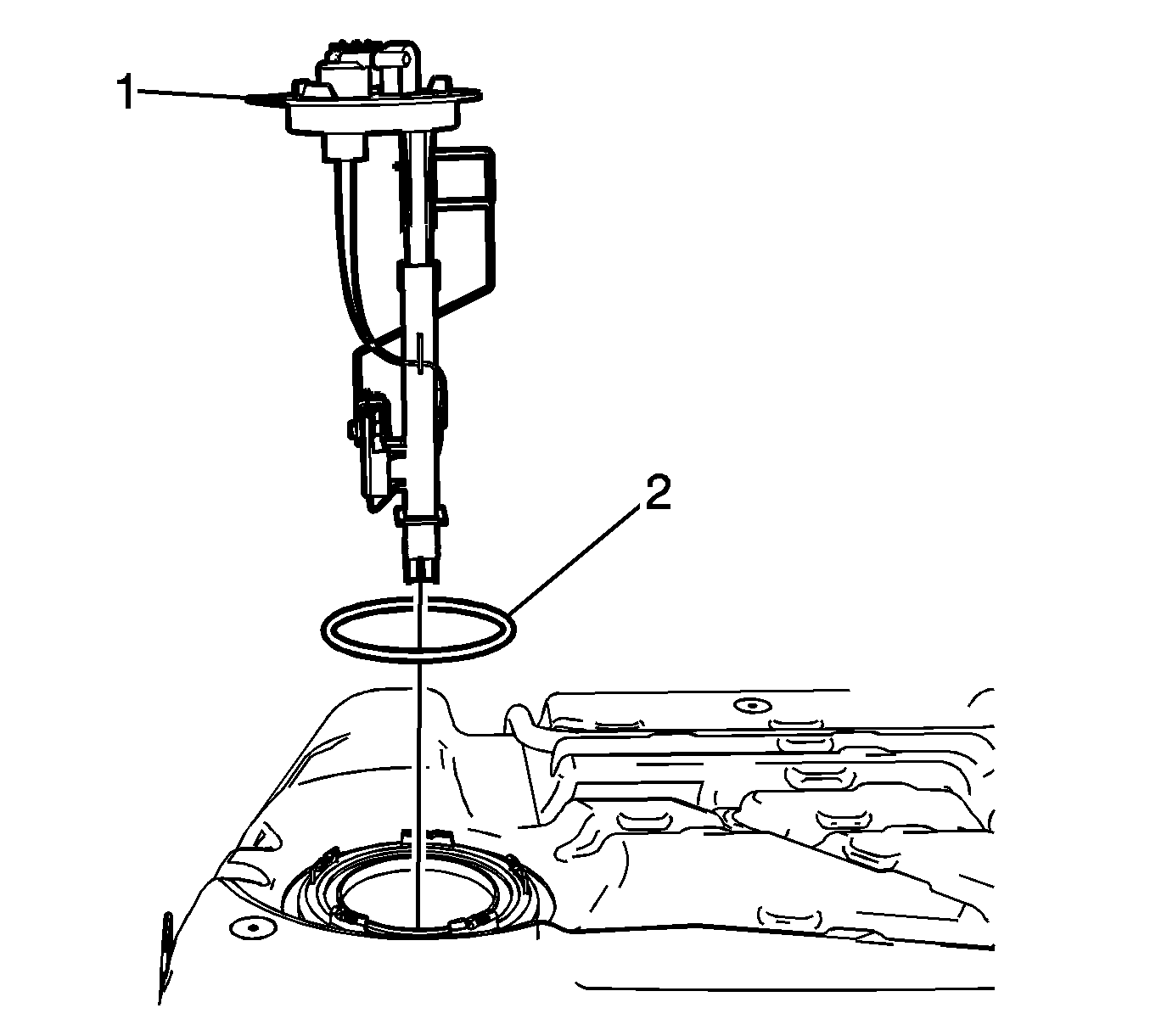

    2. Fig 2: Secondary Fuel Tank Module & O-Ring
    GM2239781Courtesy of GENERAL MOTORS CORP.
  2. Install a NEW O-ring (2) and the secondary fuel tank module (1).

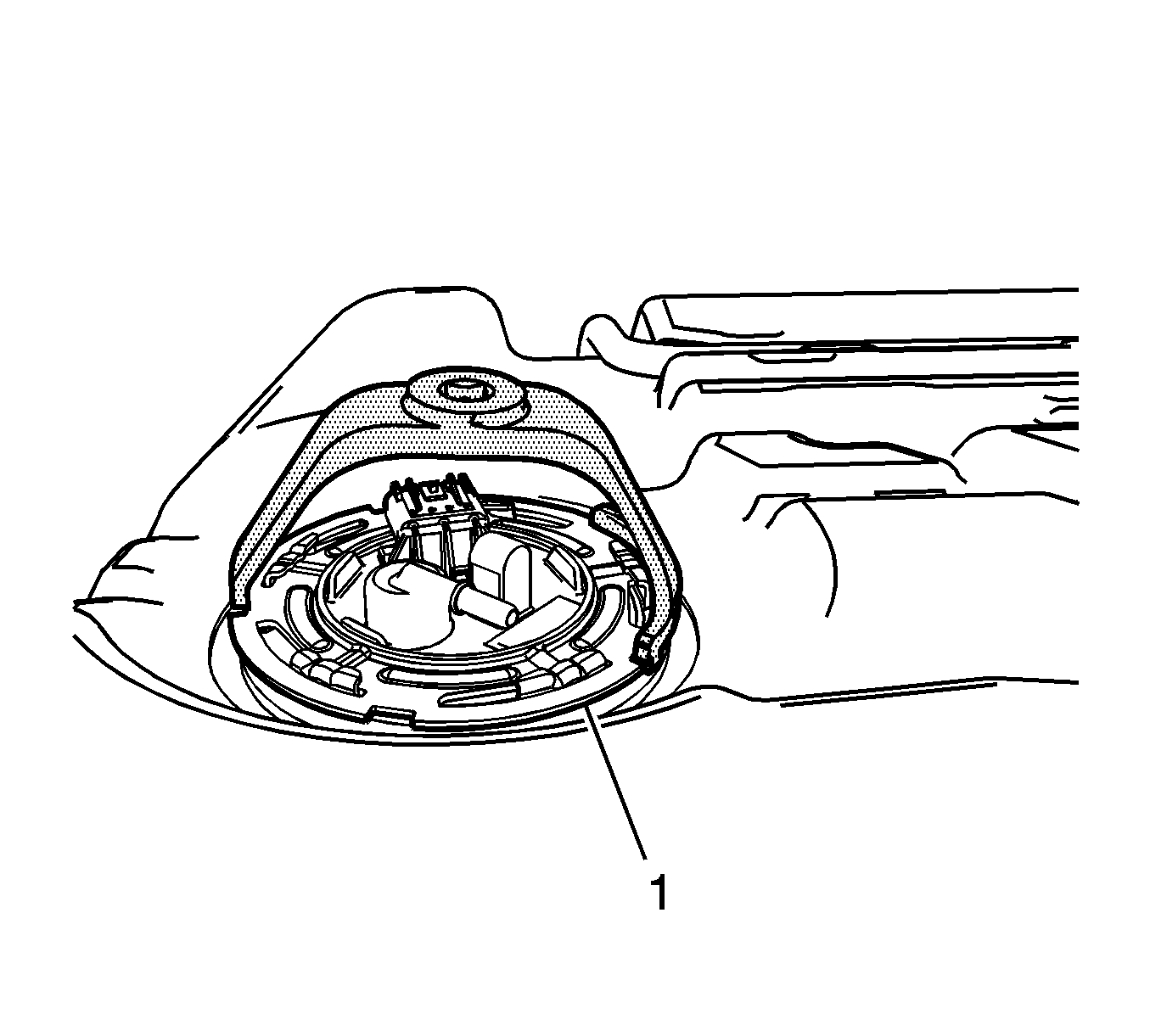

    3. Fig 3: Cam Lock Ring
    GM2239774Courtesy of GENERAL MOTORS CORP.
  3. Using the CH-48482:  wrench, install the cam lock ring (1) by turning clockwise.

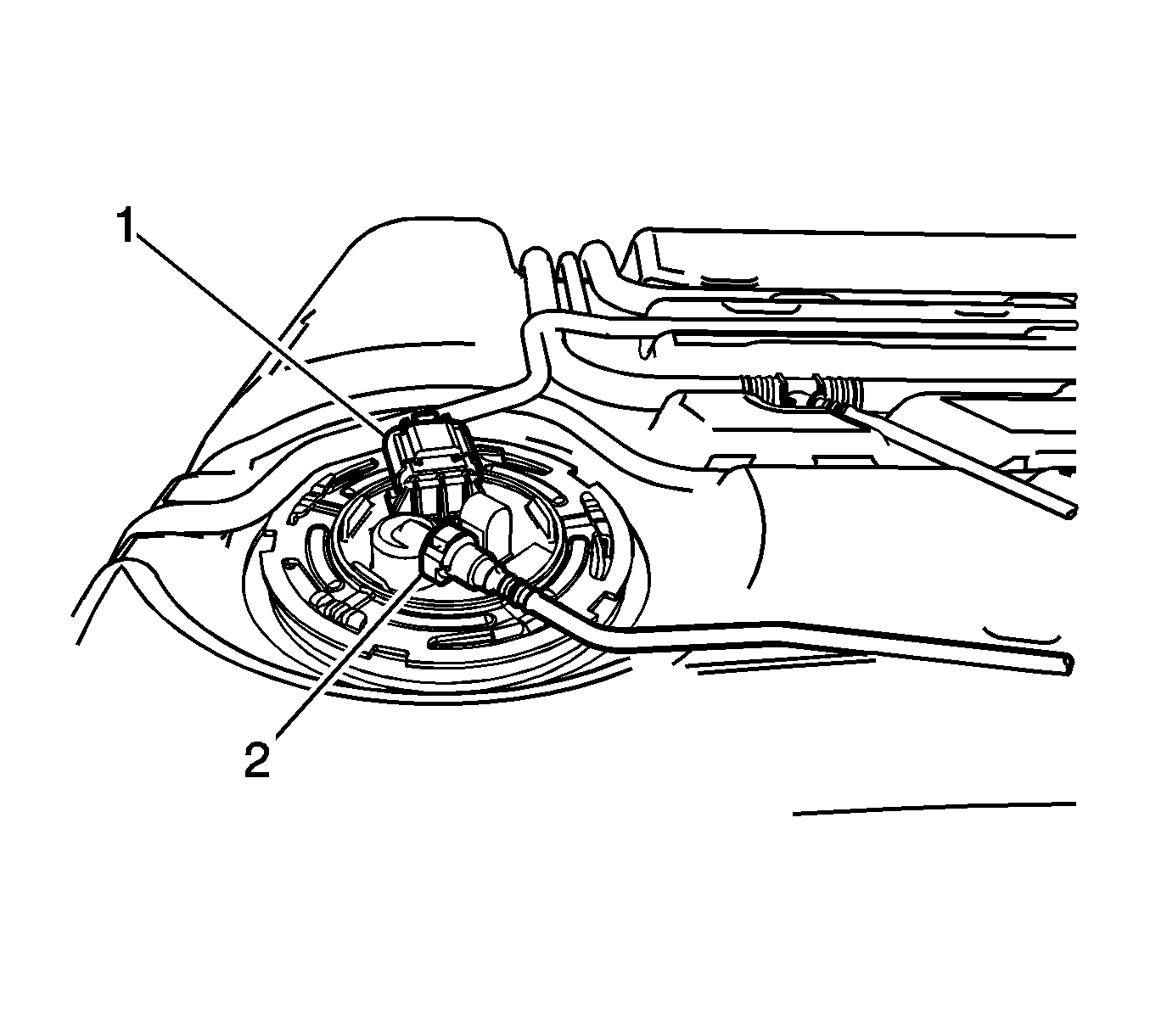

    4. Fig 4: Electrical Connector & Evaporative Emission Line
    GM2239771Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector (1).
  5. Connect the evaporative emission line (2). Refer to Plastic Collar Quick Connect Fitting Service .
  6. Install the fuel tank. Refer to Fuel Tank Replacement (AWD) or Fuel Tank Replacement (FWD) .
