Installation Procedure

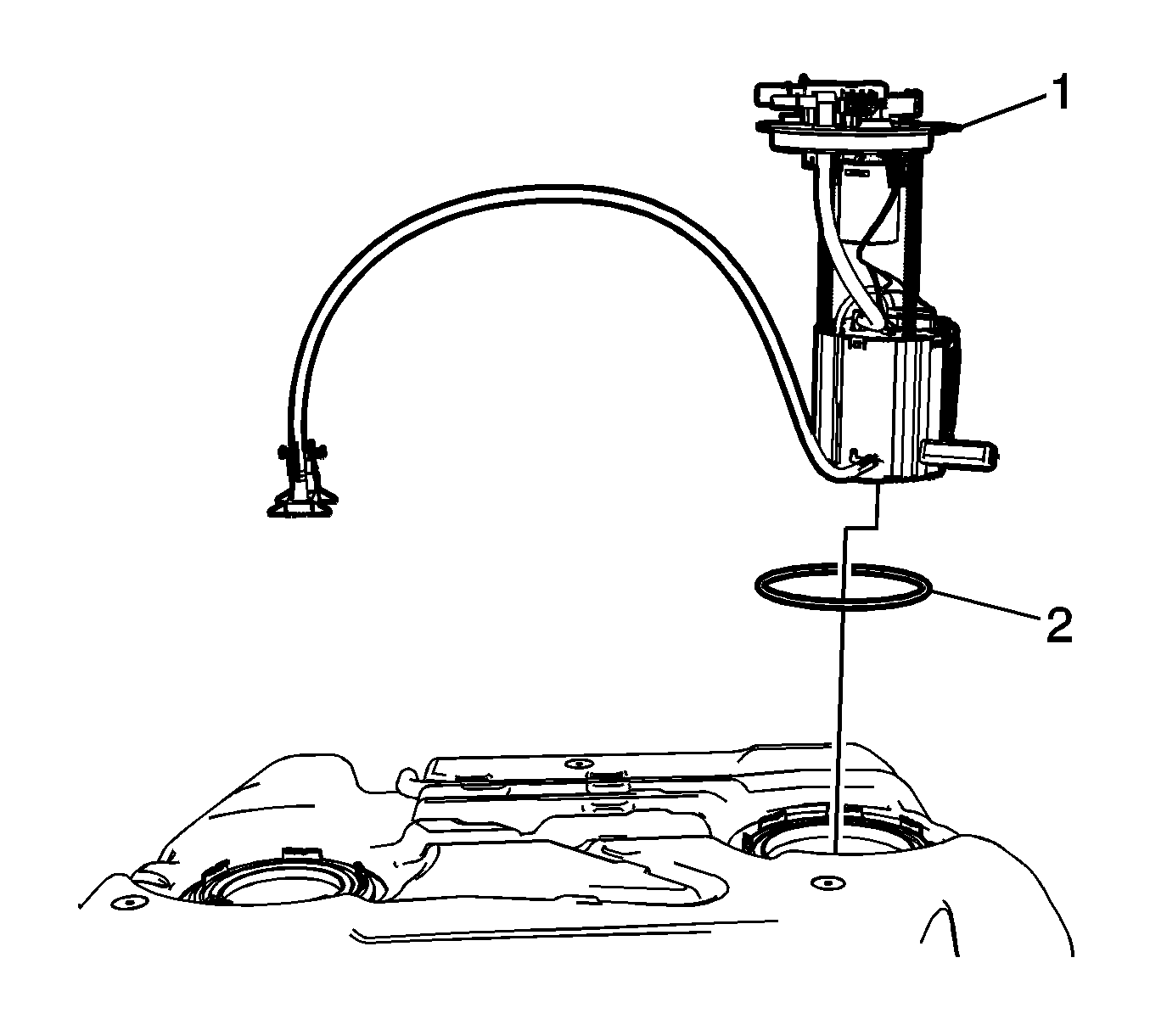

    Fig 1: Primary Fuel Tank Module & O-Ring
    GM2239724Courtesy of GENERAL MOTORS CORP.
  1. If replacing the fuel pump module only, install the primary fuel level sensor. Refer to Primary Fuel Level Sensor Replacement .
  2. Install a NEW O-ring (2) and the primary fuel tank module (1).

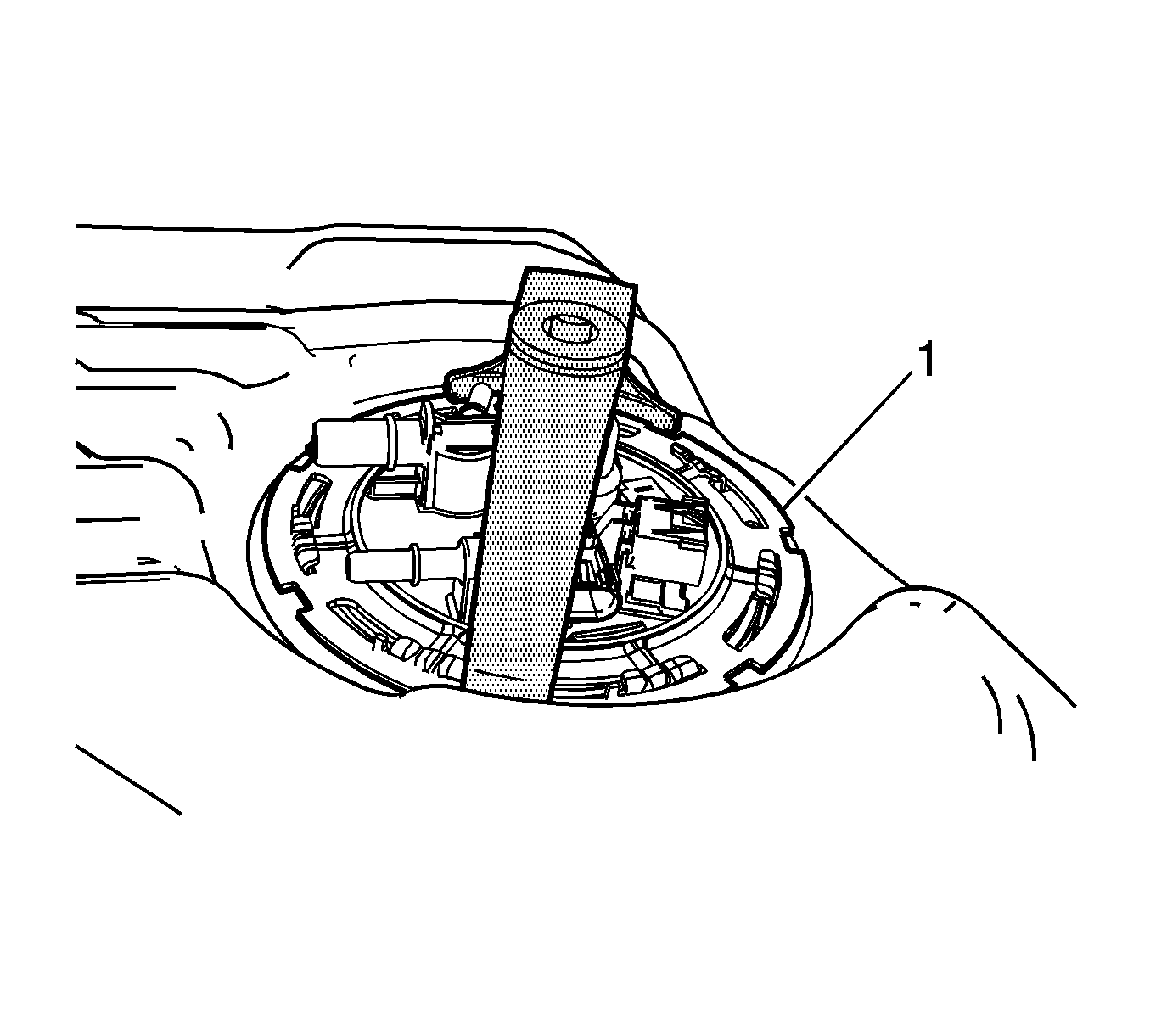

    3. Fig 2: Cam Lock Ring
    GM2239717Courtesy of GENERAL MOTORS CORP.
  3. Using the J-45722:  wrench, install the cam lock ring (1) by turning clockwise.

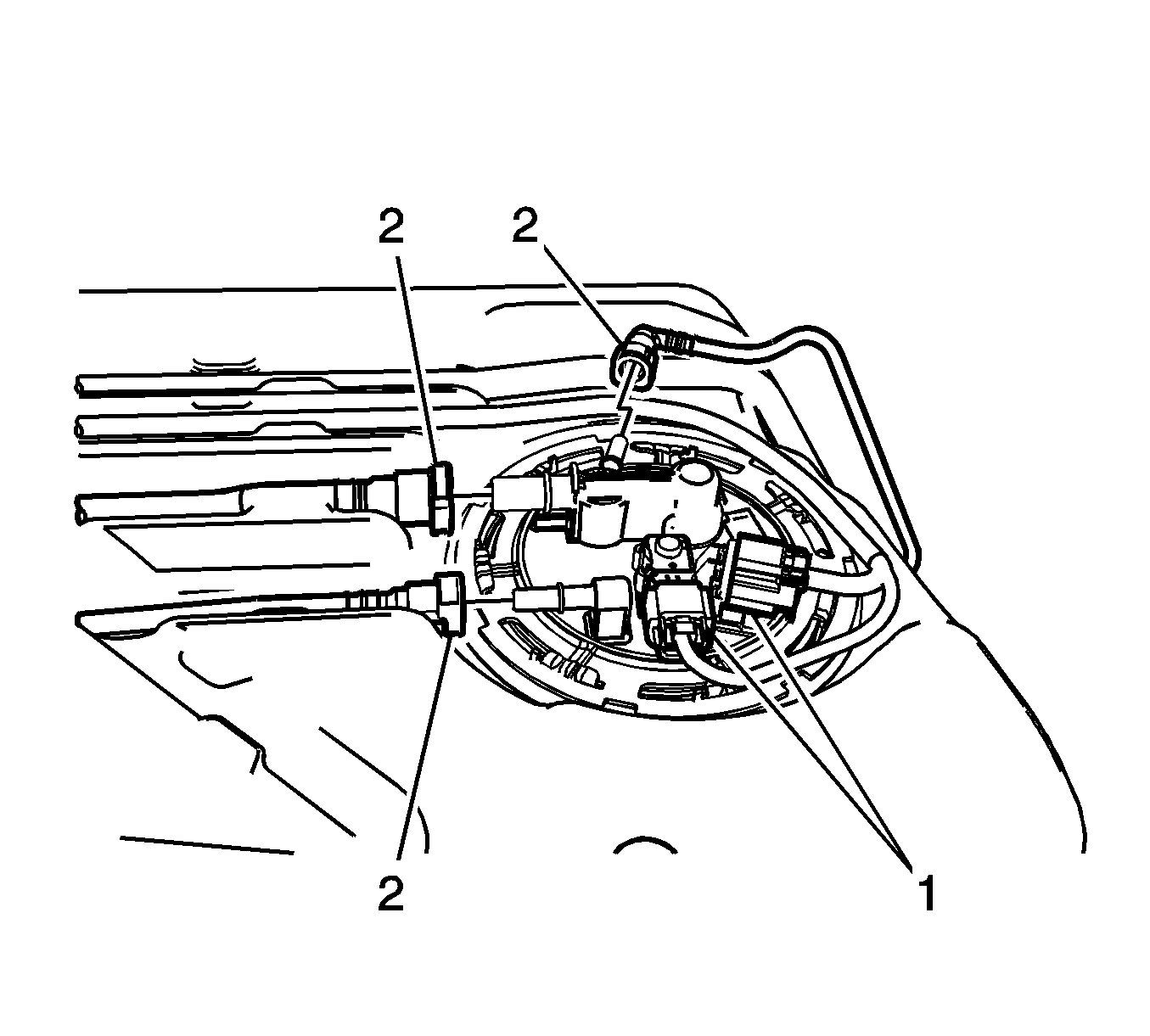

    4. Fig 3: Fuel & Evaporative Emission Lines & Electrical Connectors
    GM2239702Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connectors (1).
  5. Connect the fuel and evaporative emission lines (2). Refer to Plastic Collar Quick Connect Fitting Service .
  6. Connect the crossover tube to the secondary fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement - Secondary .
  7. Install the fuel tank. Refer to Fuel Tank Replacement (AWD)  or Fuel Tank Replacement (FWD) .
