Throttle Body Assembly Replacement

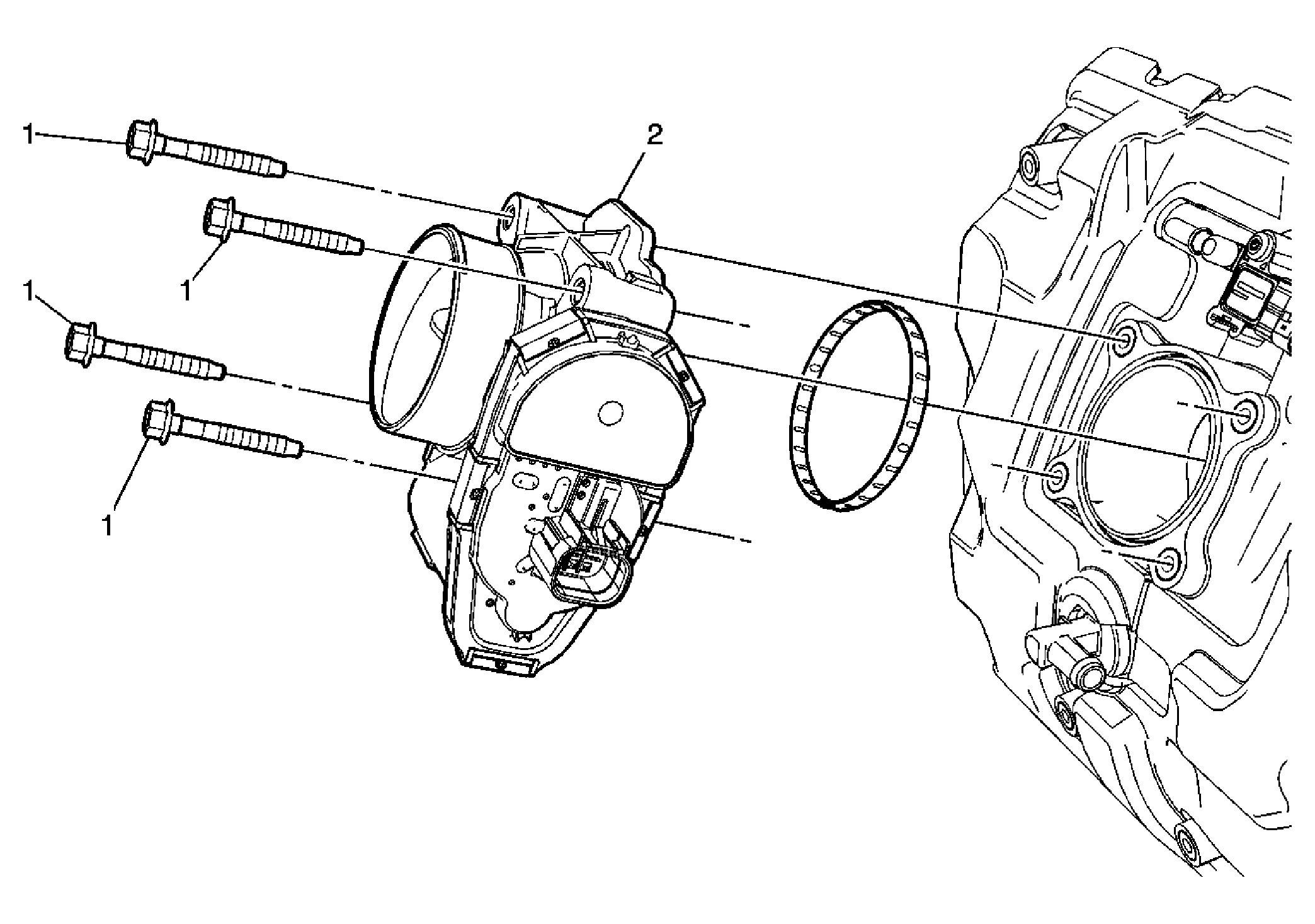

Fig 1: Throttle Body Assembly
GM2210499Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1 Throttle Body Assembly Fastener (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  10 N.m(89 lb in)
2 Throttle Body Assembly

Procedure

  1. Disconnect the electrical connector.
  2. Use a NEW throttle body O-ring.
  3. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .
