Accelerator Pedal with Position Sensor Assembly Replacement

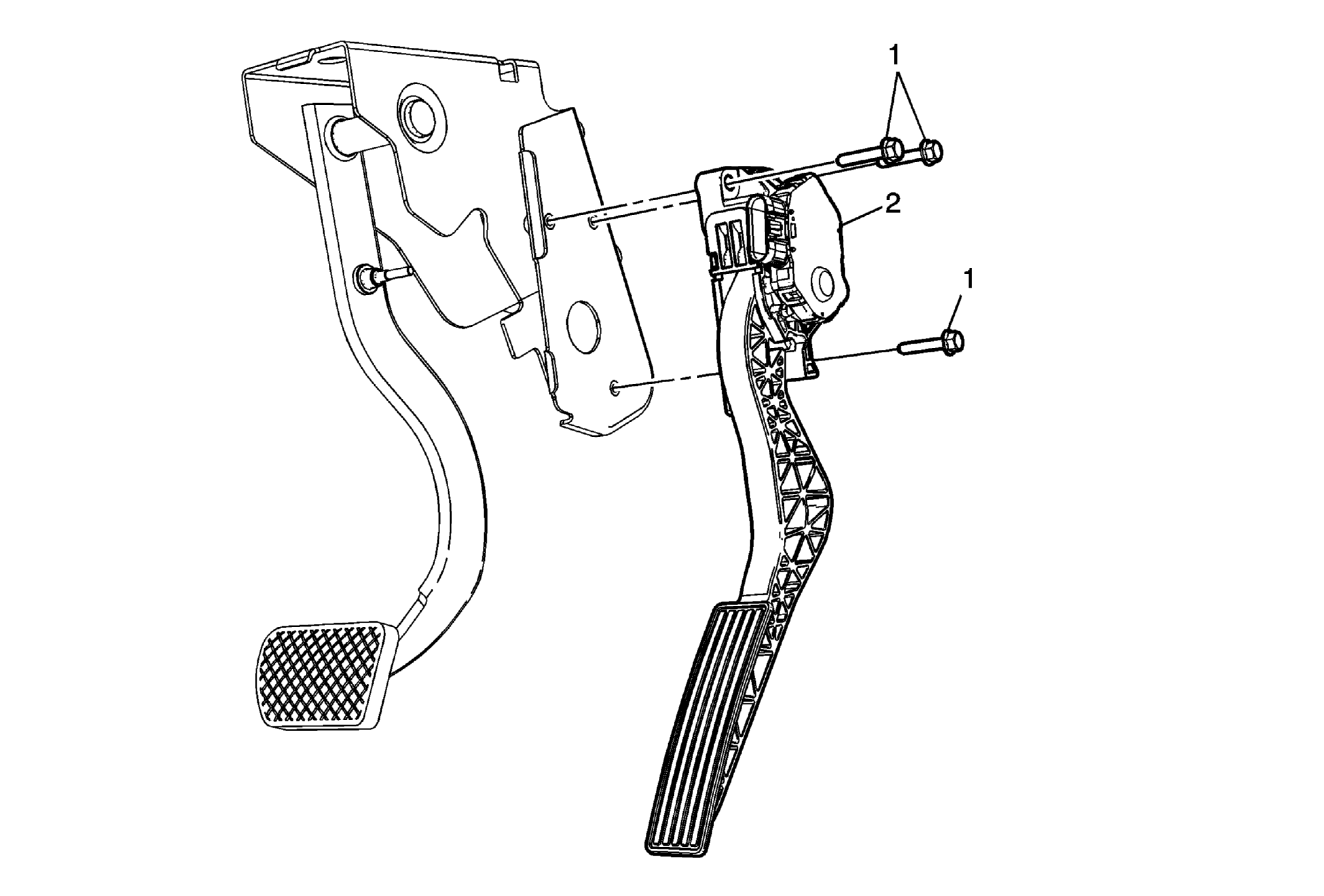

Fig 1: Accelerator Pedal with Position Sensor Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel insulator. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Equinox) or Instrument Panel Insulator Panel Replacement - Left Side (Terrain) . Remove the Communication Interface Module. Refer to Communication Interface Module Replacement .
1	Accelerator Pedal Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Accelerator Pedal Position Sensor Procedure: Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedures

Accelerator Pedal Fastener (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Accelerator Pedal Position Sensor
Procedure:
Disconnect the electrical connector.
