Fuel Pump Cover Replacement

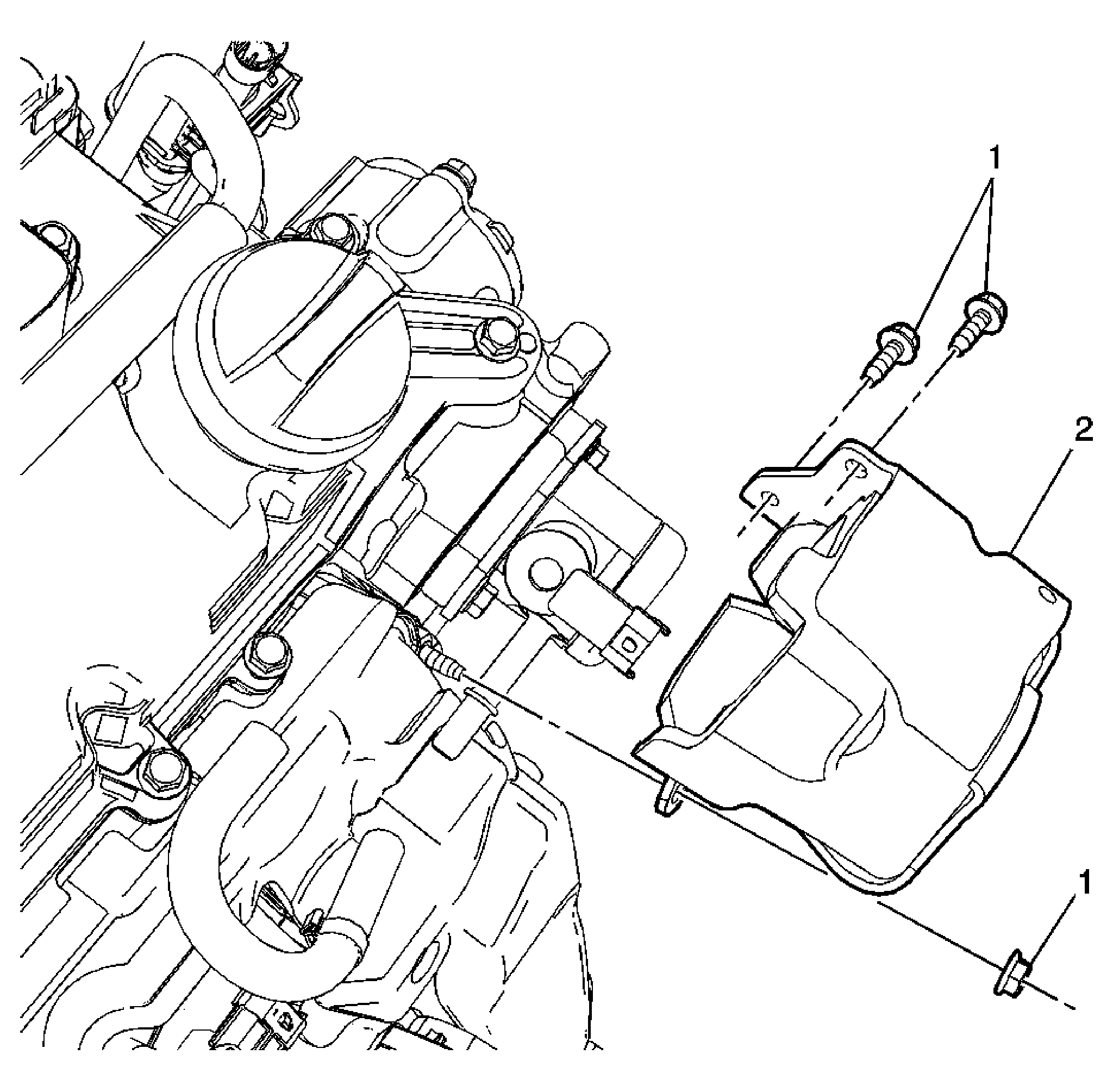

Fig 1: Fuel Pump Cover
GM2242408Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Pump Cover Fastener (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten:  10 N.m(89 lb in)
2 Fuel Pump Cover
