Fuel Tank Pressure Sensor Replacement

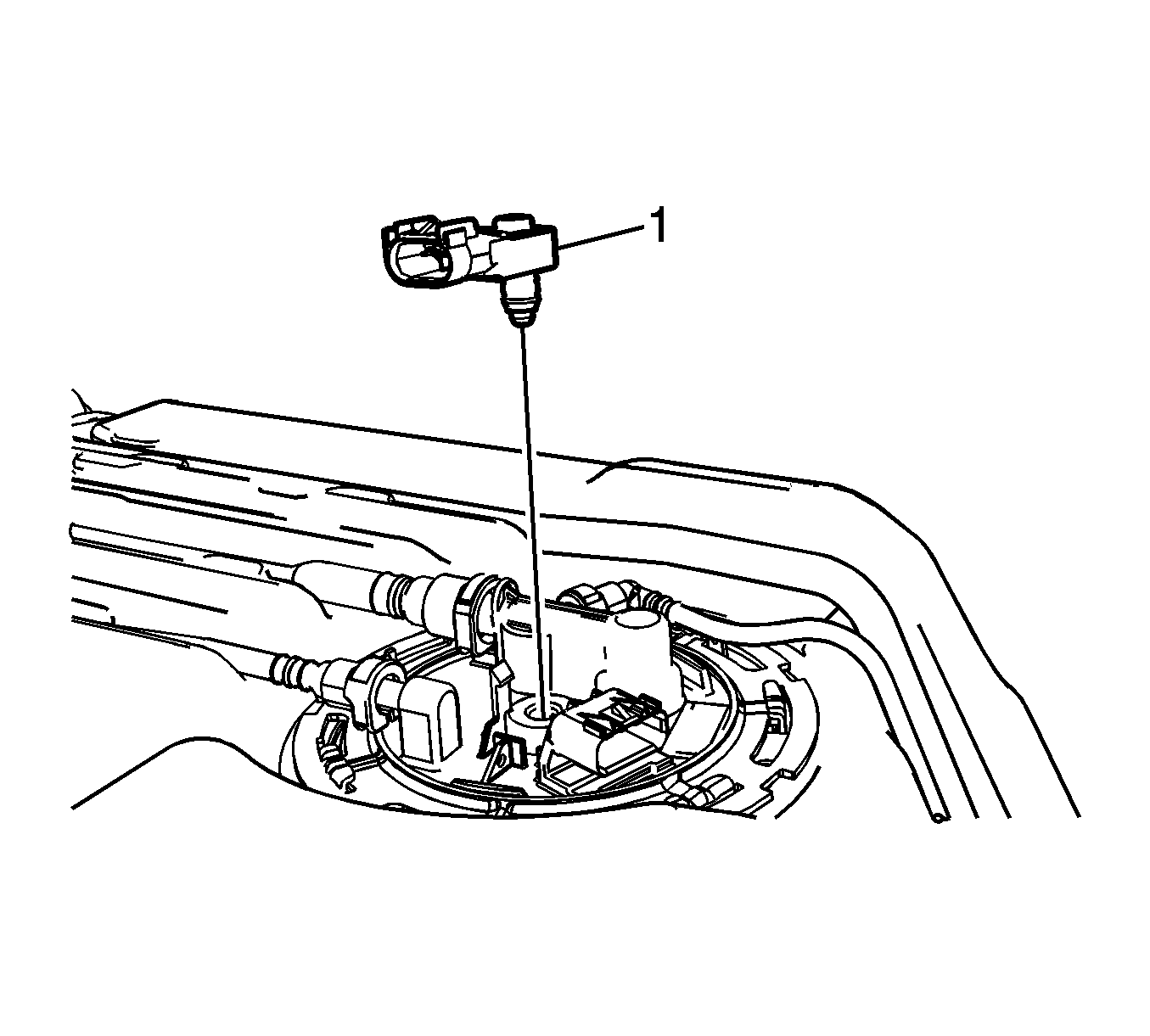

Fig 1: Fuel Tank Pressure Sensor
GM2239799Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Lower the fuel tank. Refer to Fuel Tank Replacement (AWD) or Fuel Tank Replacement (FWD) .
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
1 Fuel Tank Pressure Sensor

Procedure

  1. Use a flat bladed tool to remove the sensor.
  2. Disconnect the electrical connector.
