Dome Lamp




Component Connector End Views

Dome Lamp (Cargo)

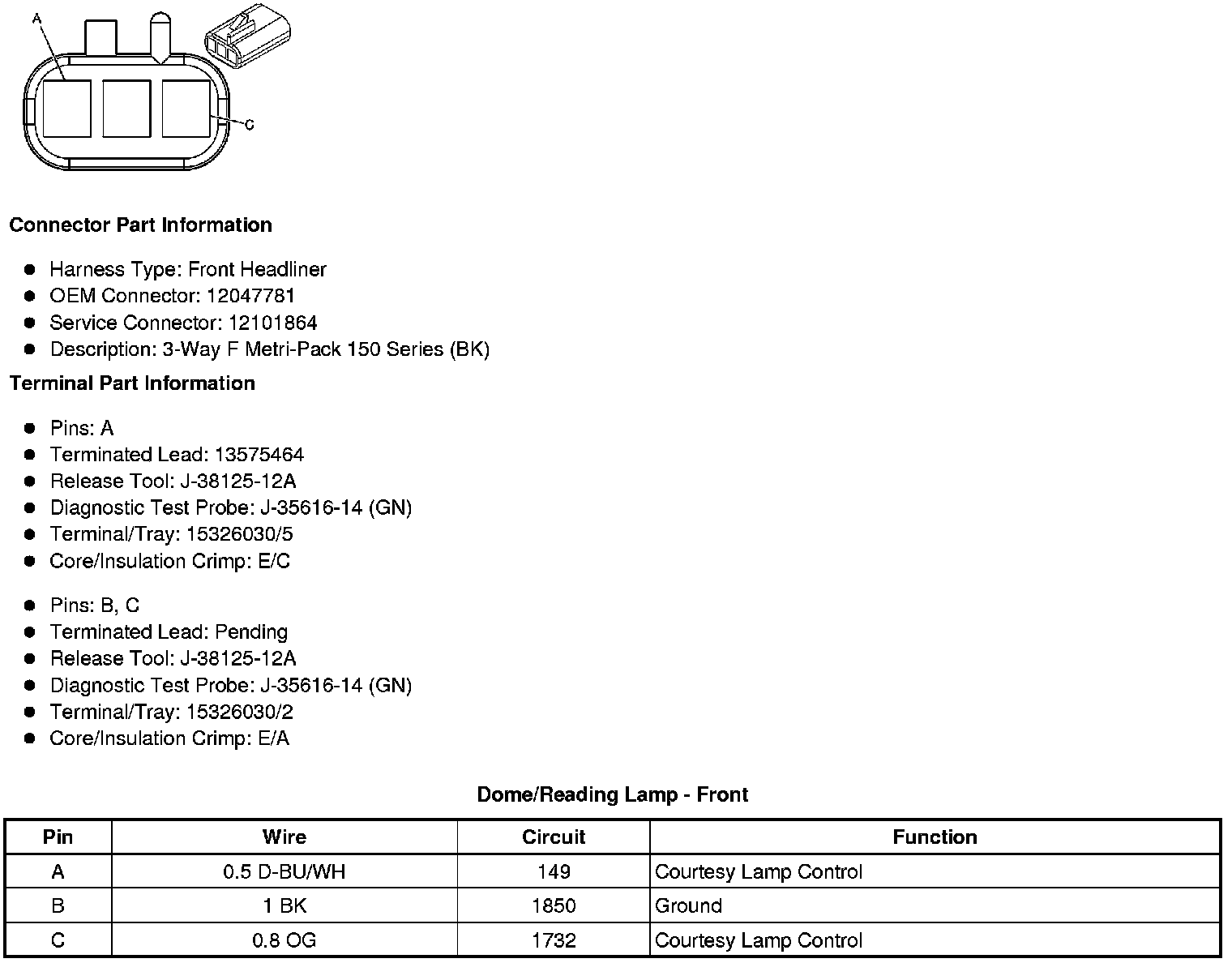

Dome/Reading Lamp - Front

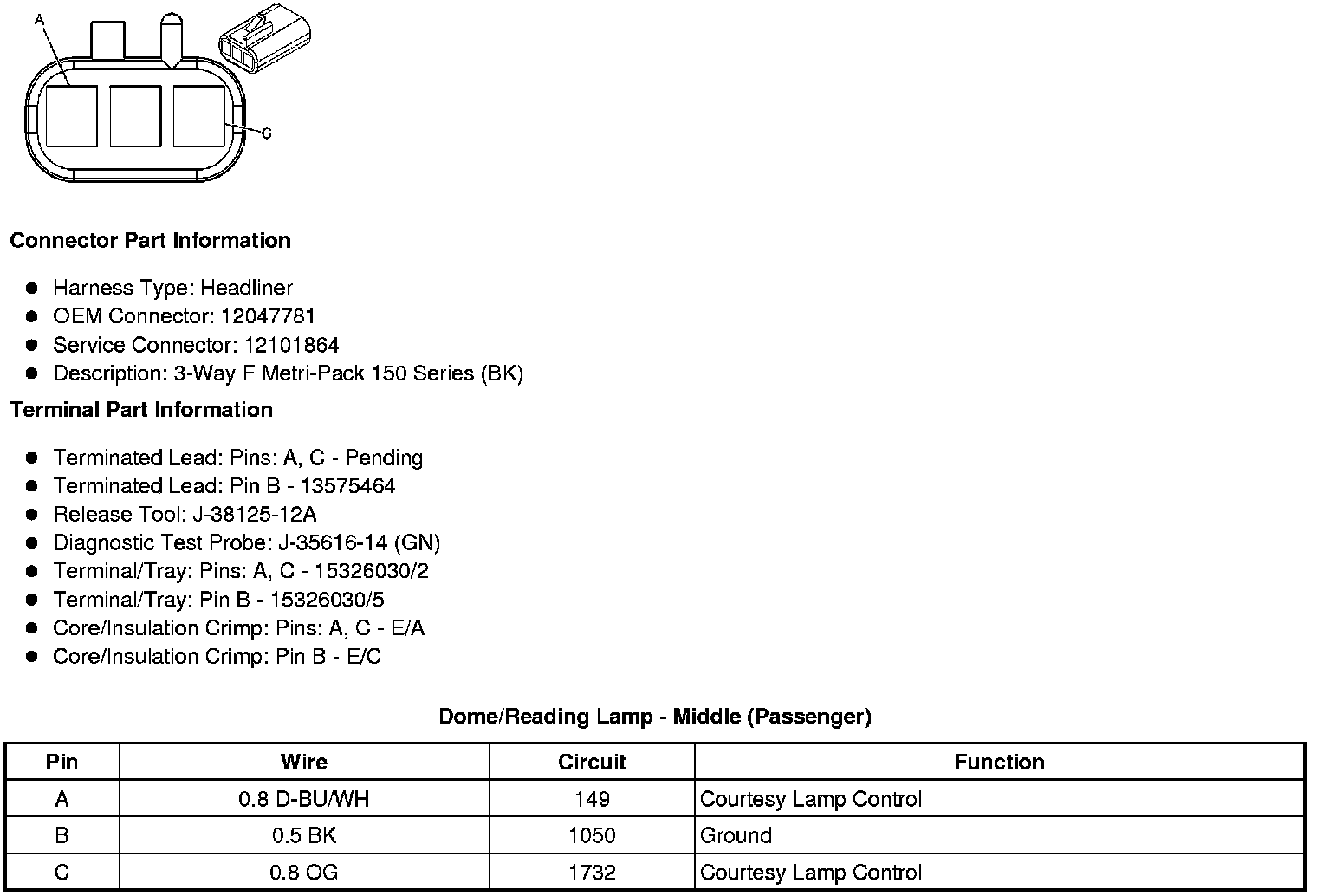

Dome/Reading Lamp - Middle (Passenger)





Dome/Reading Lamp - Rear (Passenger)
