Engine Control Module

Component Connector End Views

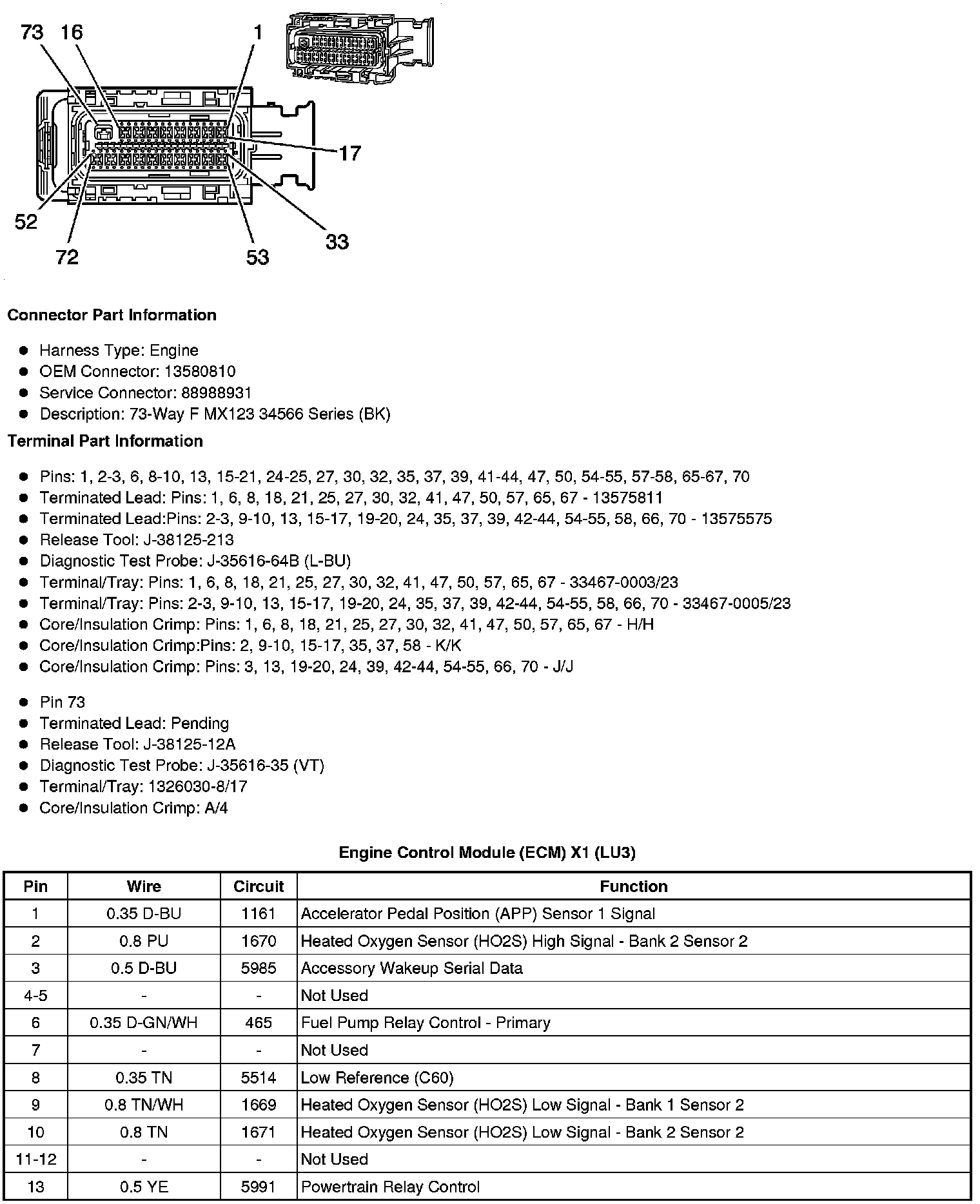

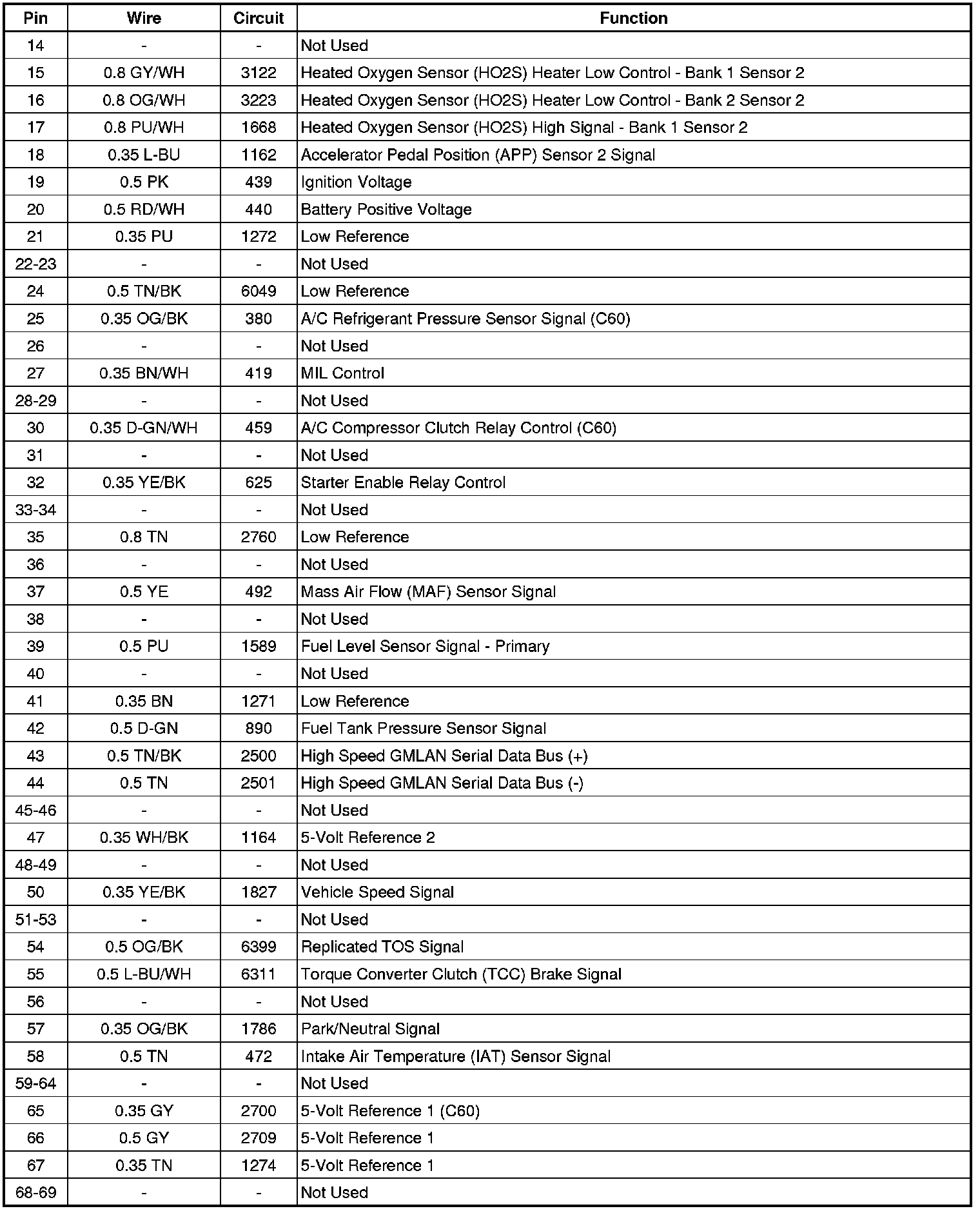

Engine Control Module (ECM) X1 (LU3)

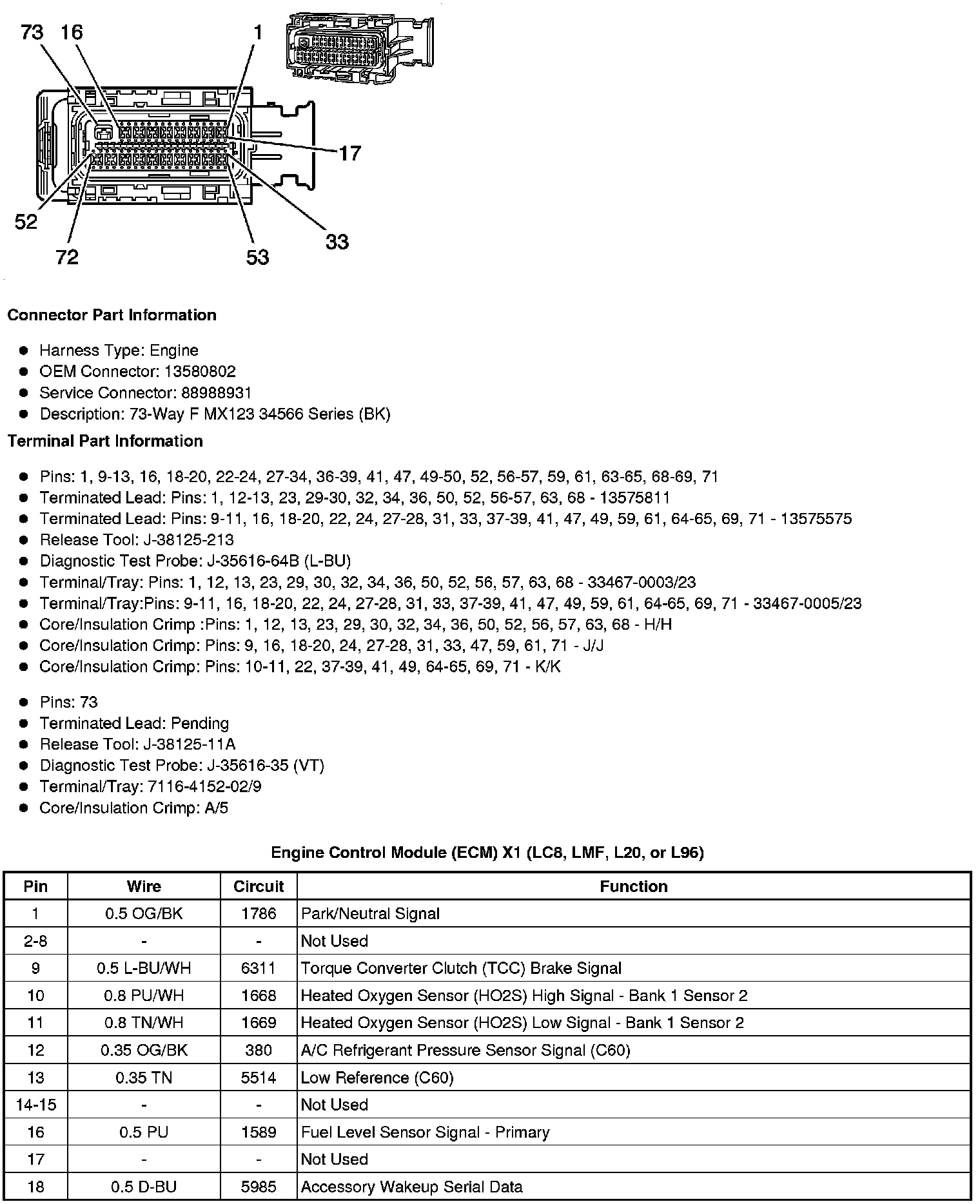

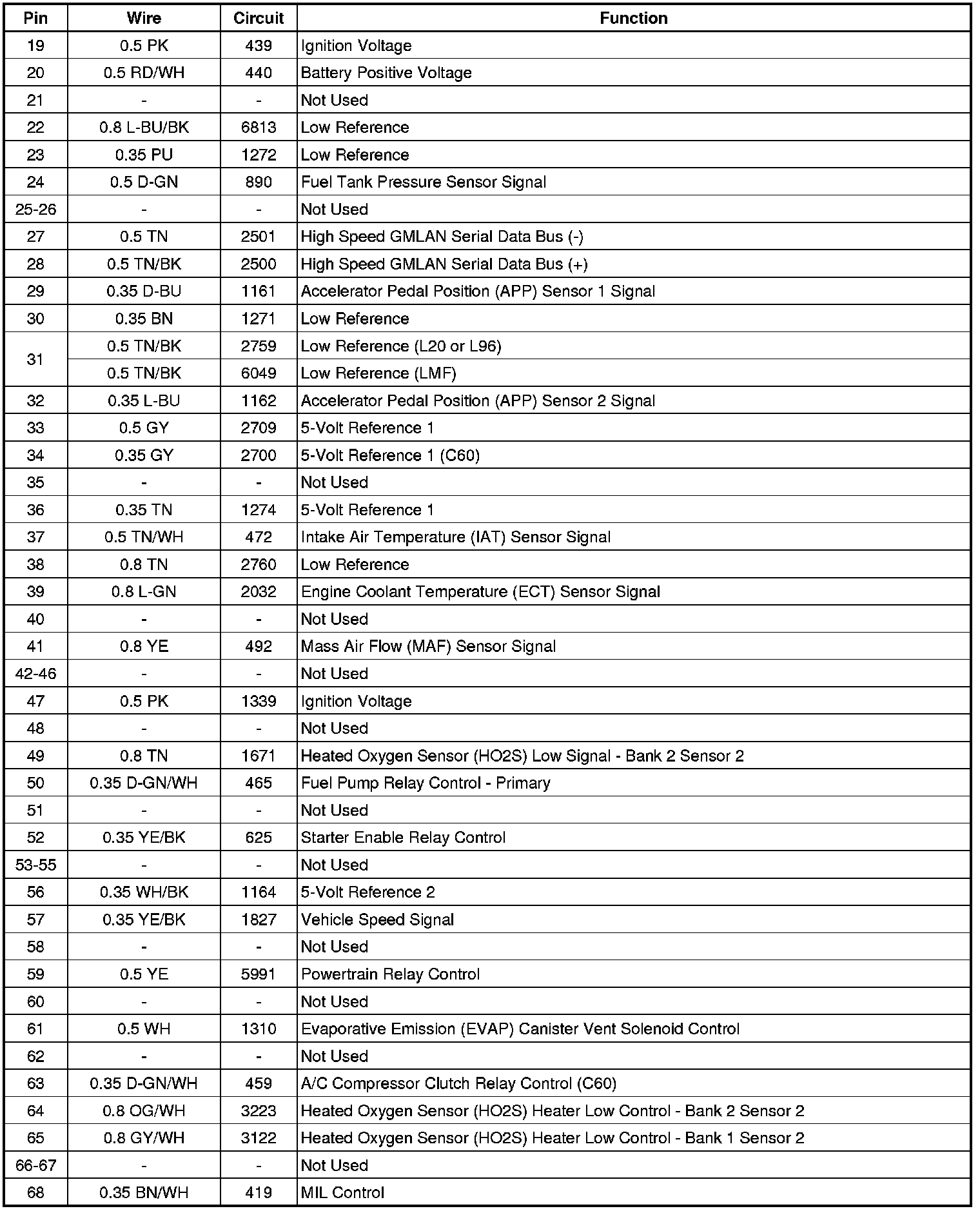

Engine Control Module (ECM) X1 (LC8, LMF, L20, or L96)

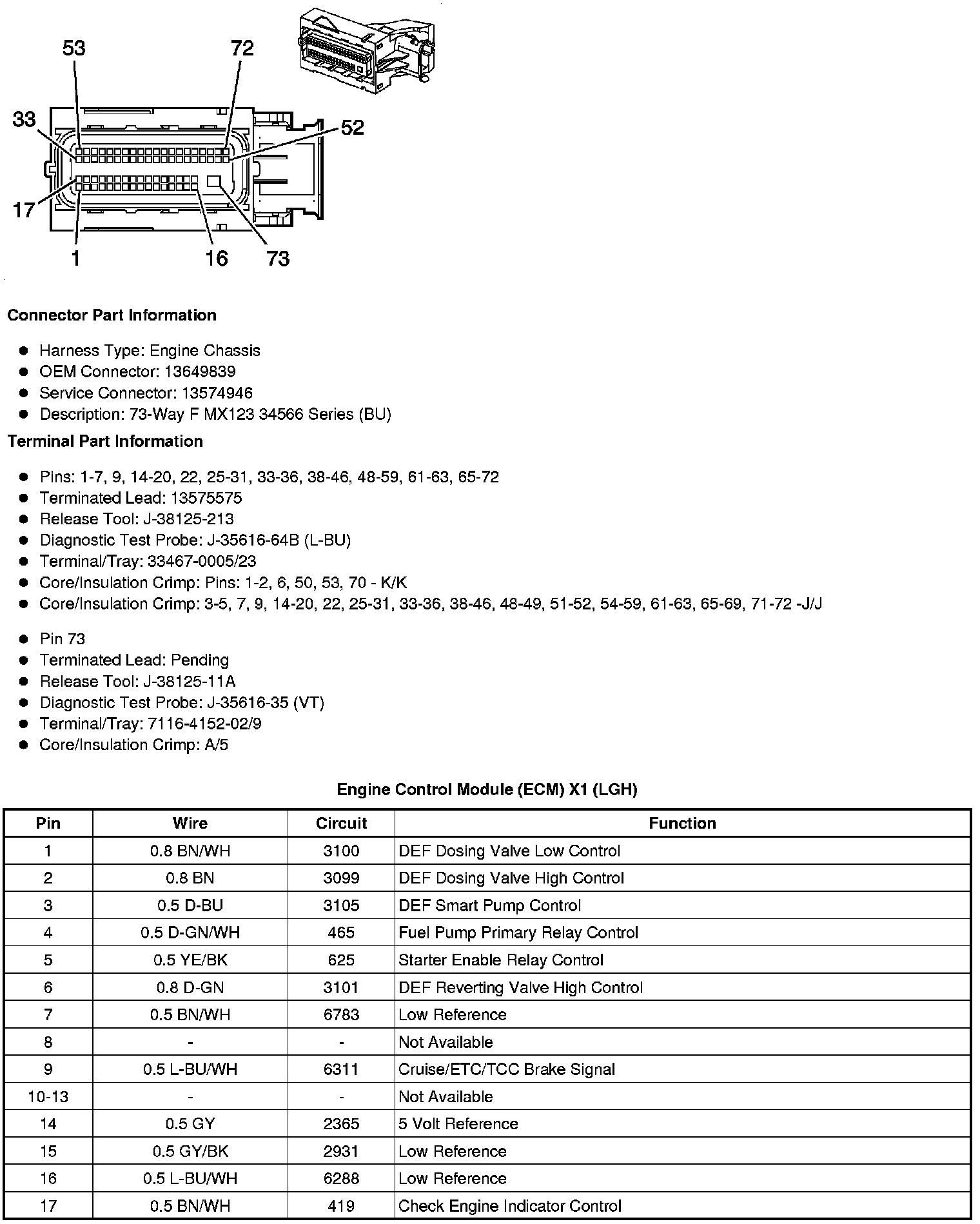

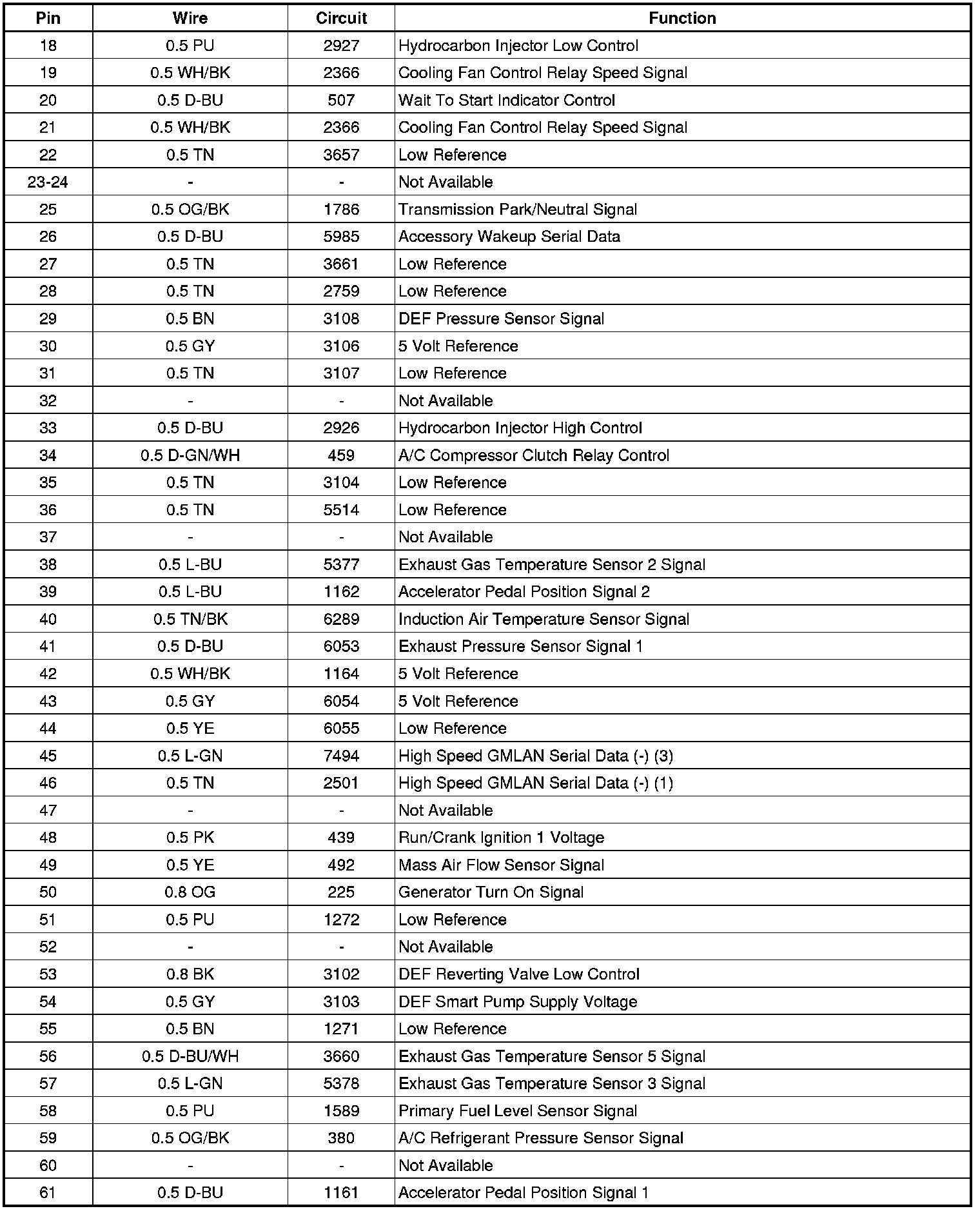

Engine Control Module (ECM) X1 (LGH)

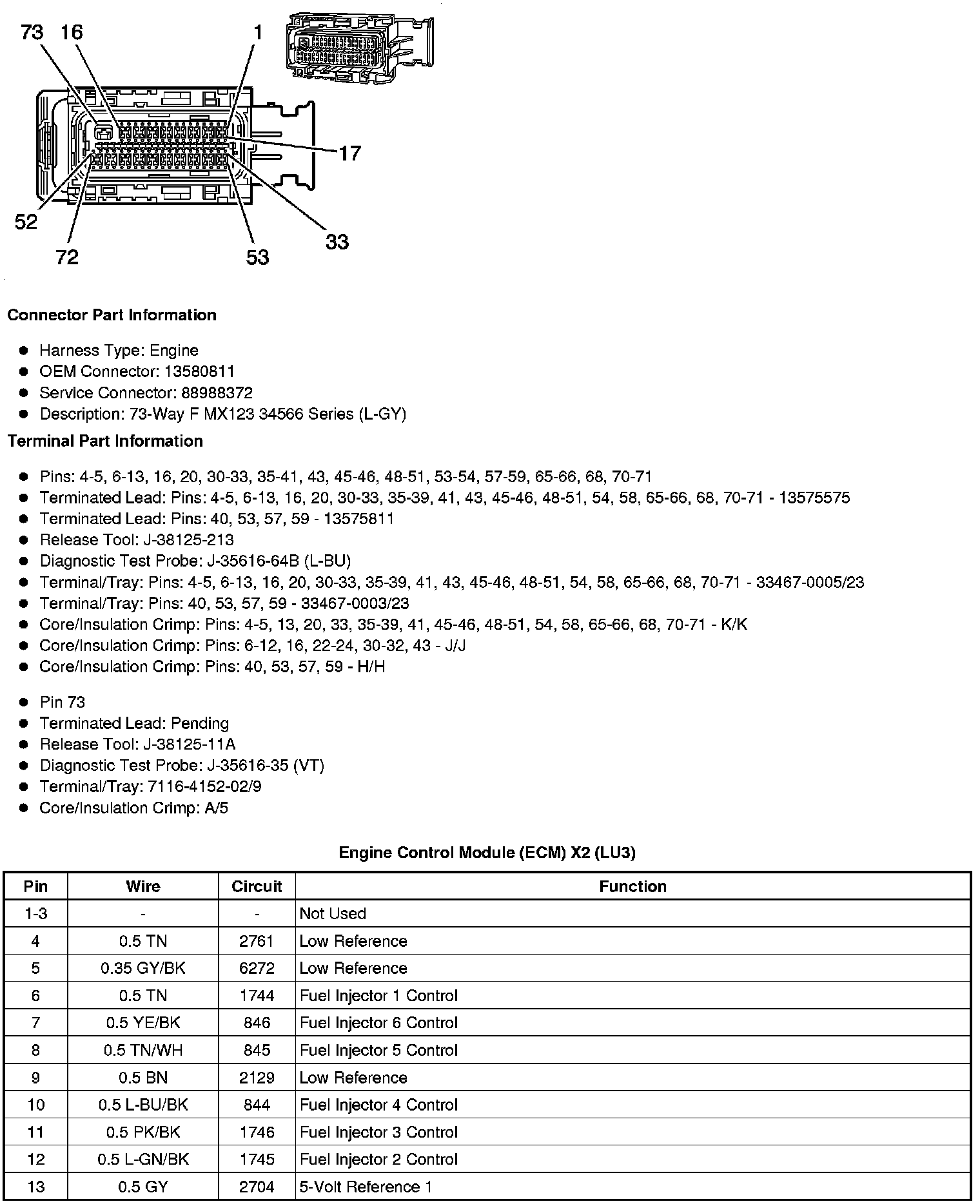

Engine Control Module (ECM) X2 (LU3)

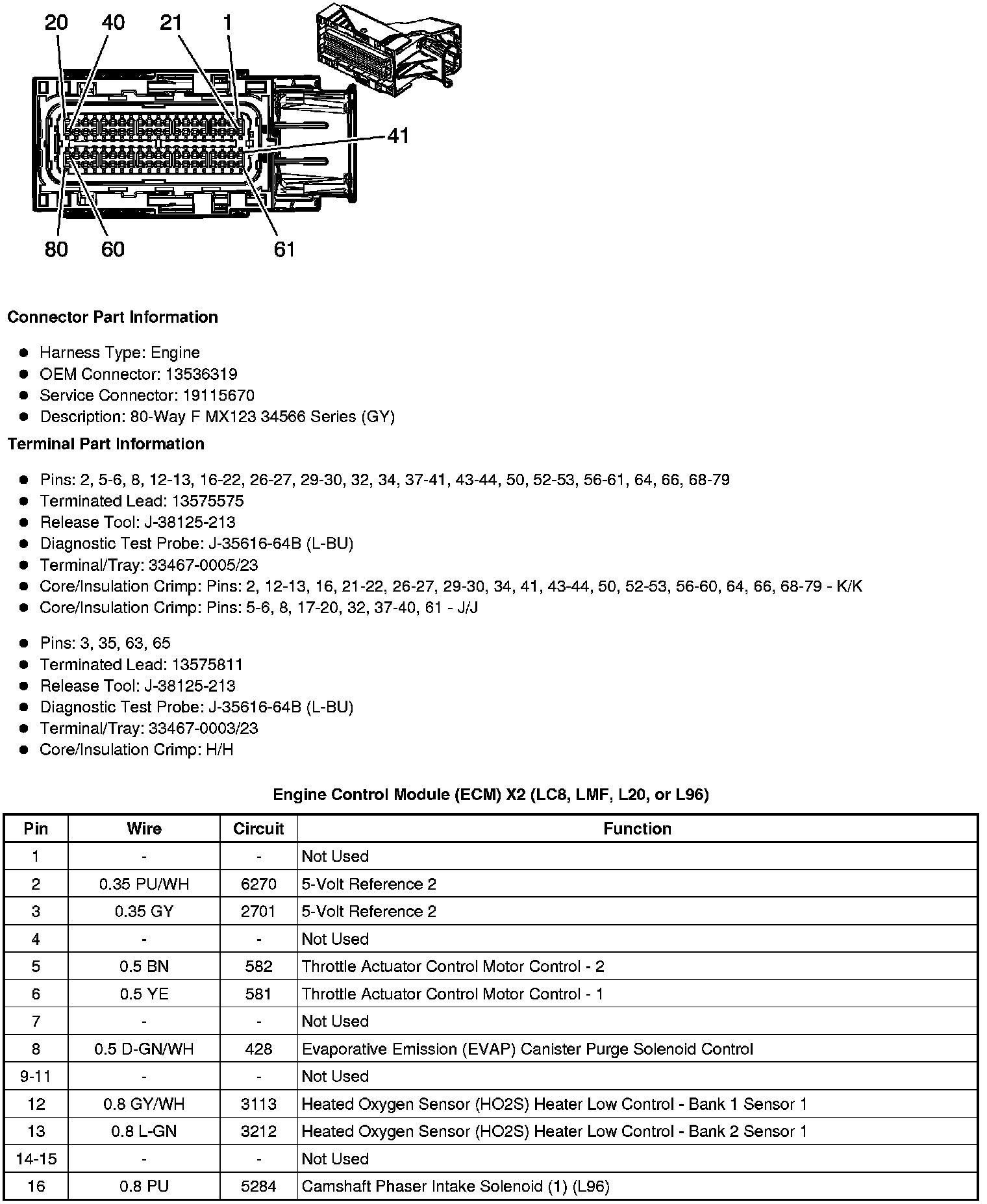

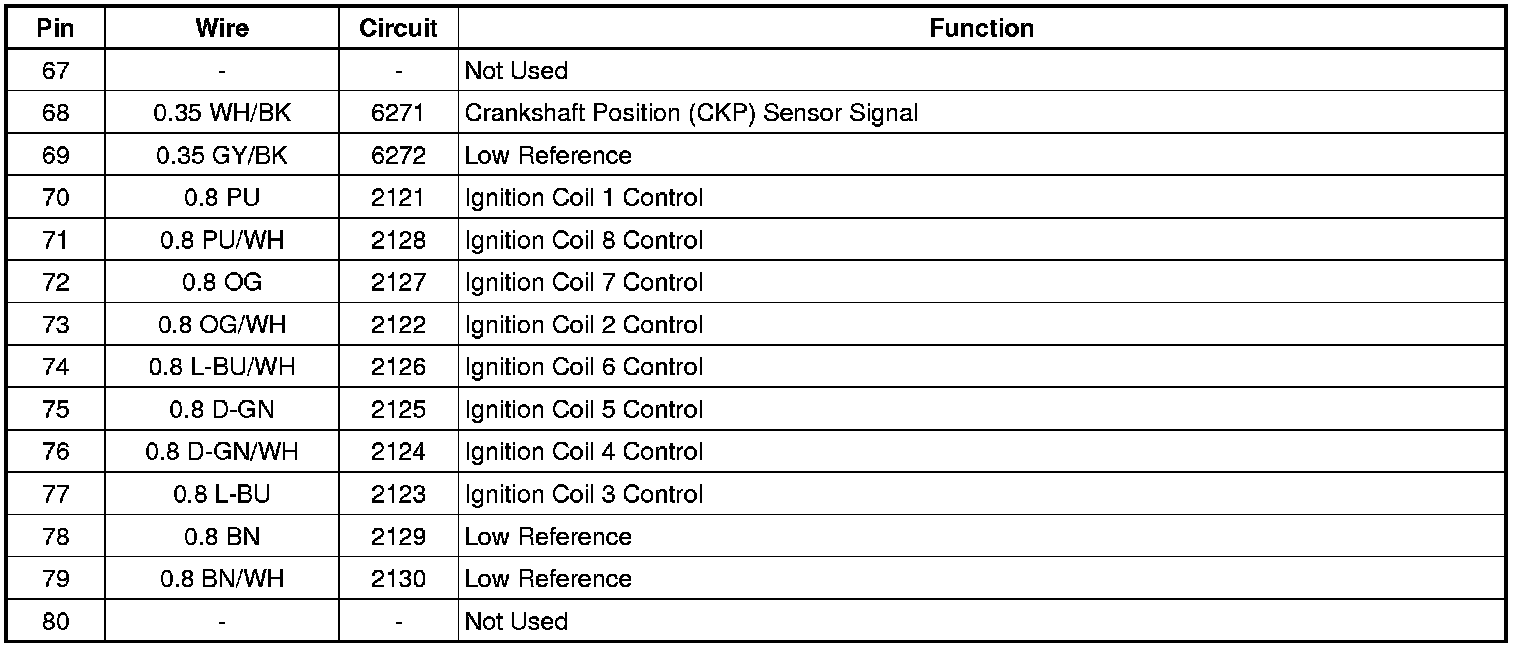

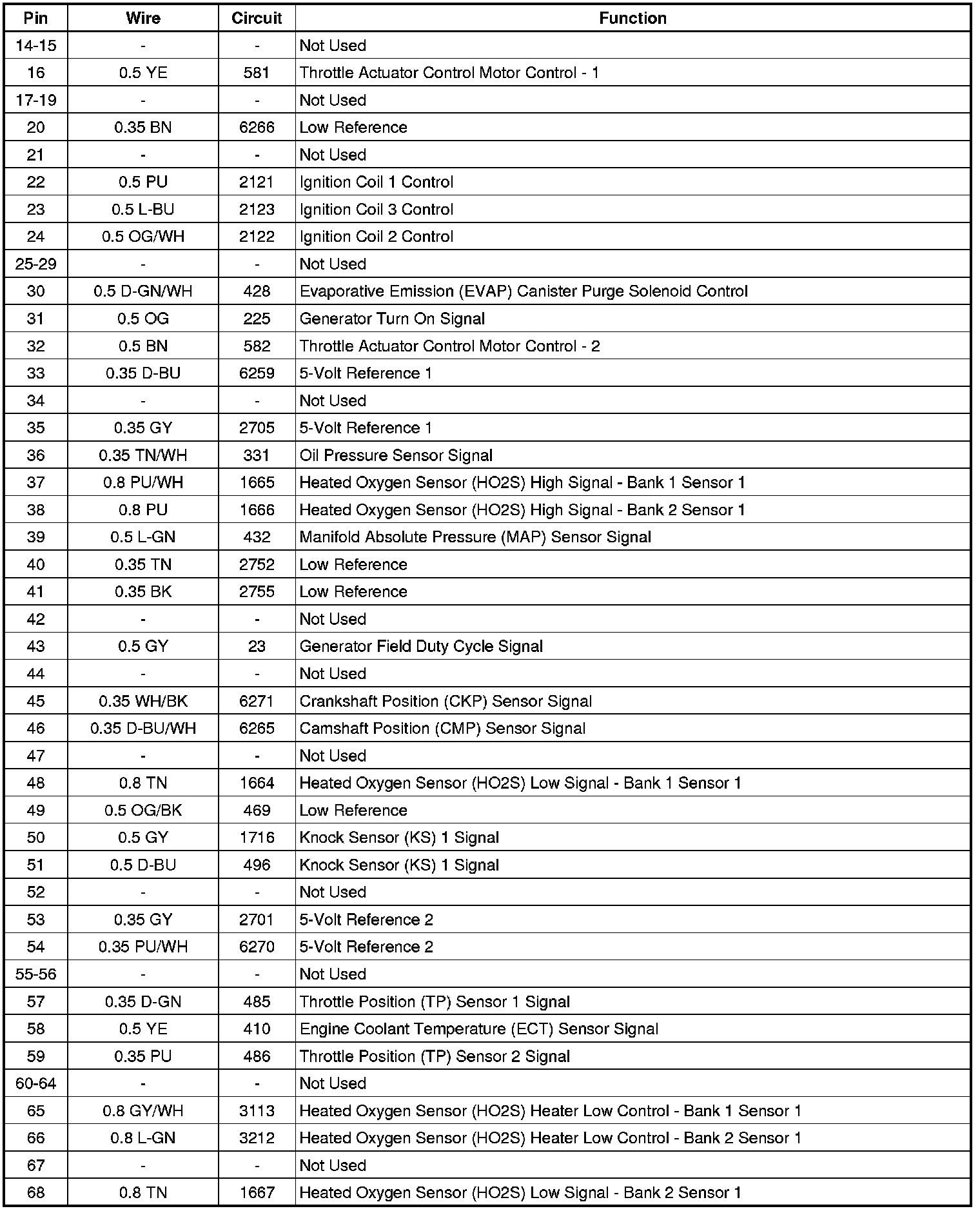

Engine Control Module (ECM) X2 (LC8, LMF, L20, or L96)

Engine Control Module (ECM) X2 (LGH)

Engine Control Module (ECM) X3 (LGH)
