Front Door Latch




Component Connector End Views

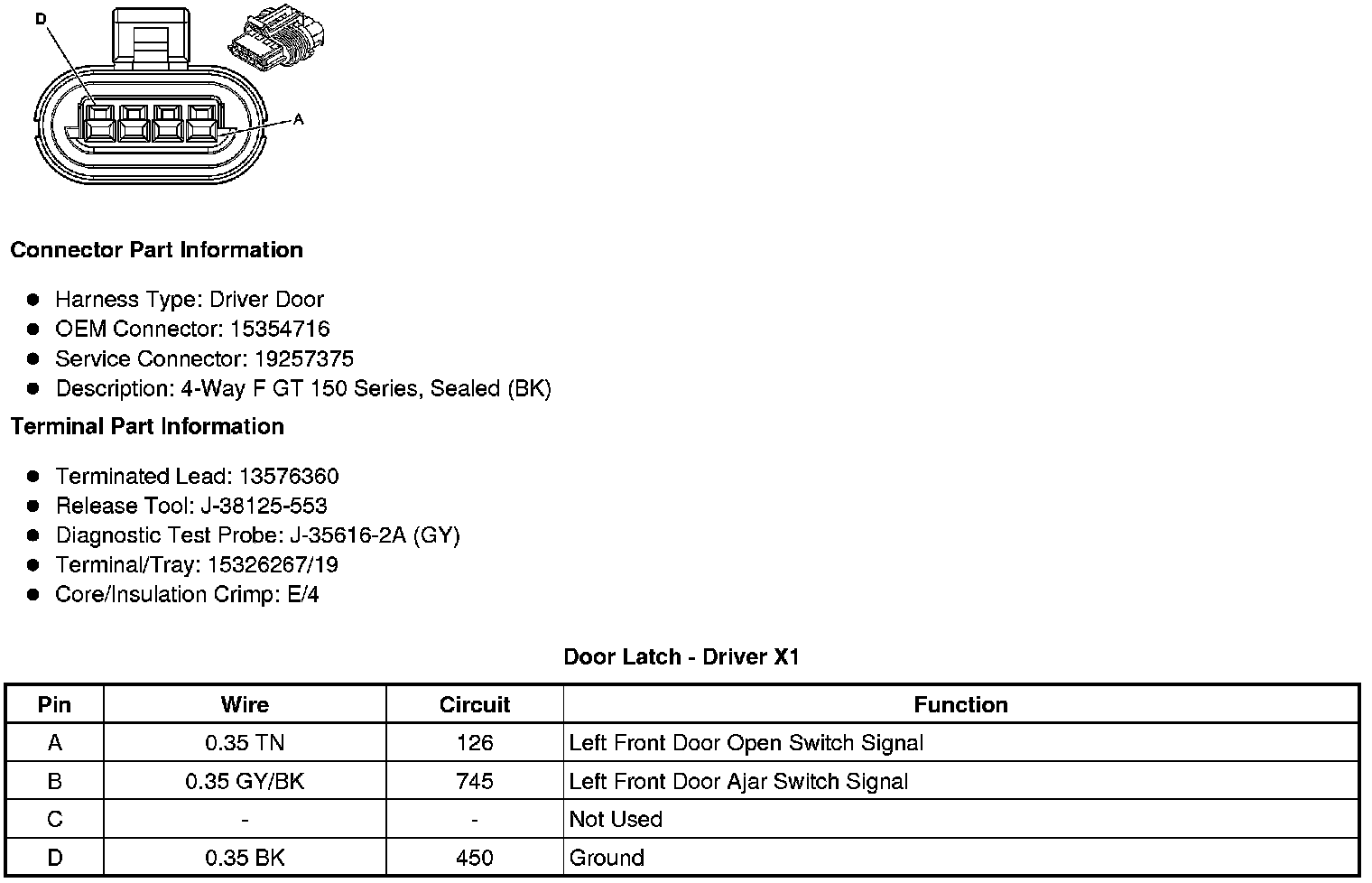

Door Latch - Driver X1





Door Latch - Driver X2

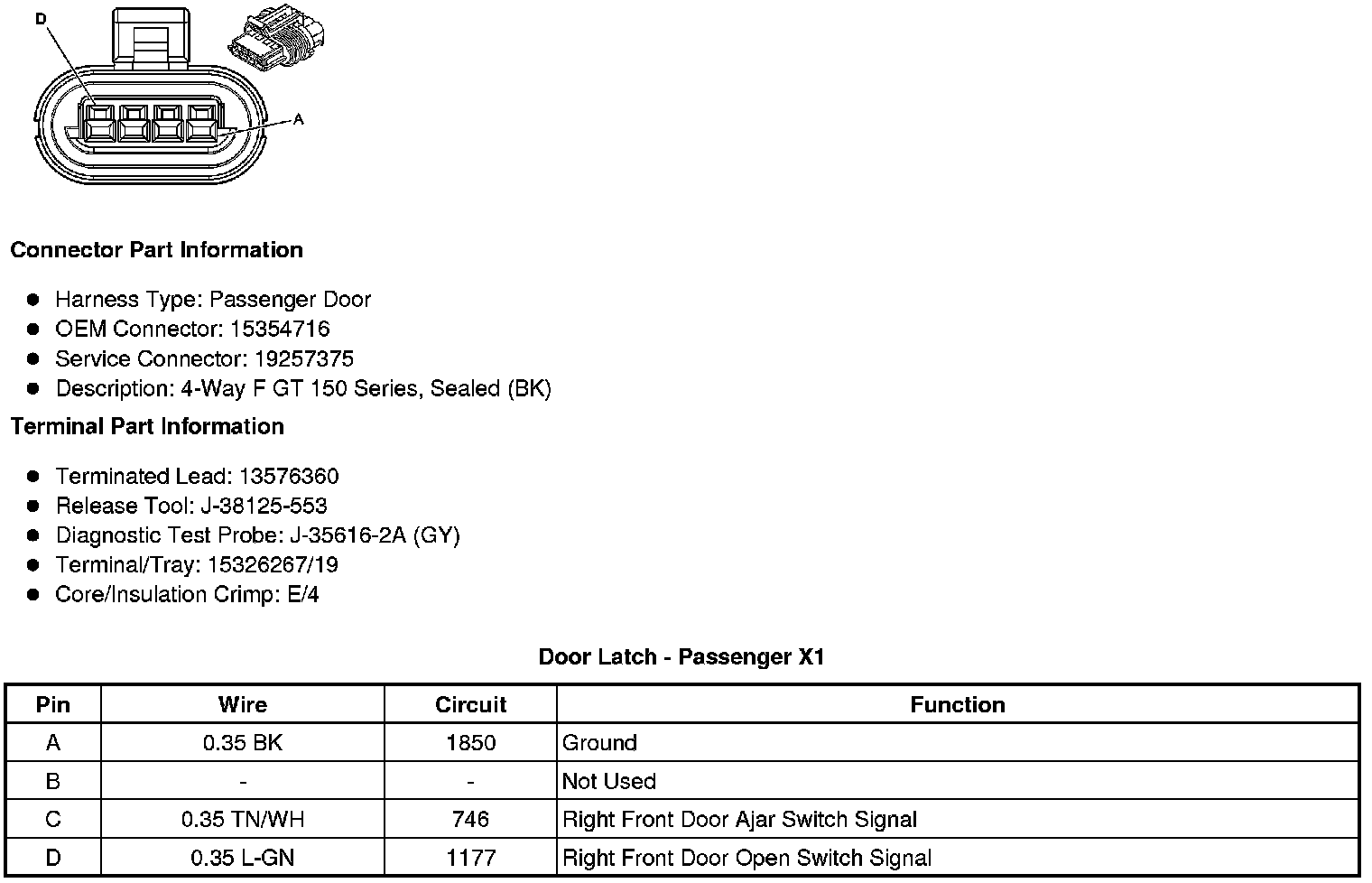

Door Latch - Passenger X1





Door Latch - Passenger X2
