System Diagram




Component Connector End Views

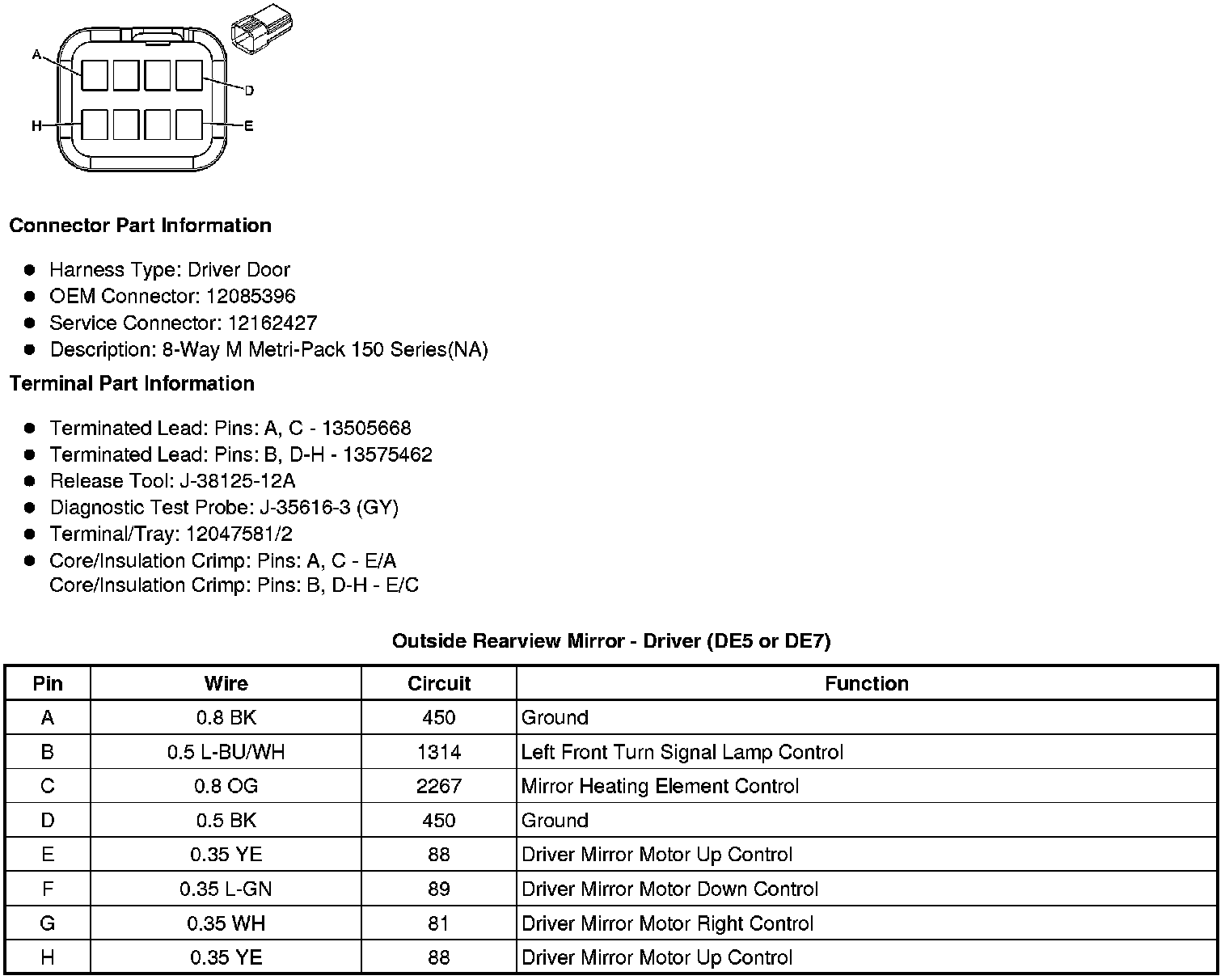

Outside Rearview Mirror - Driver (DE5 or DE7)

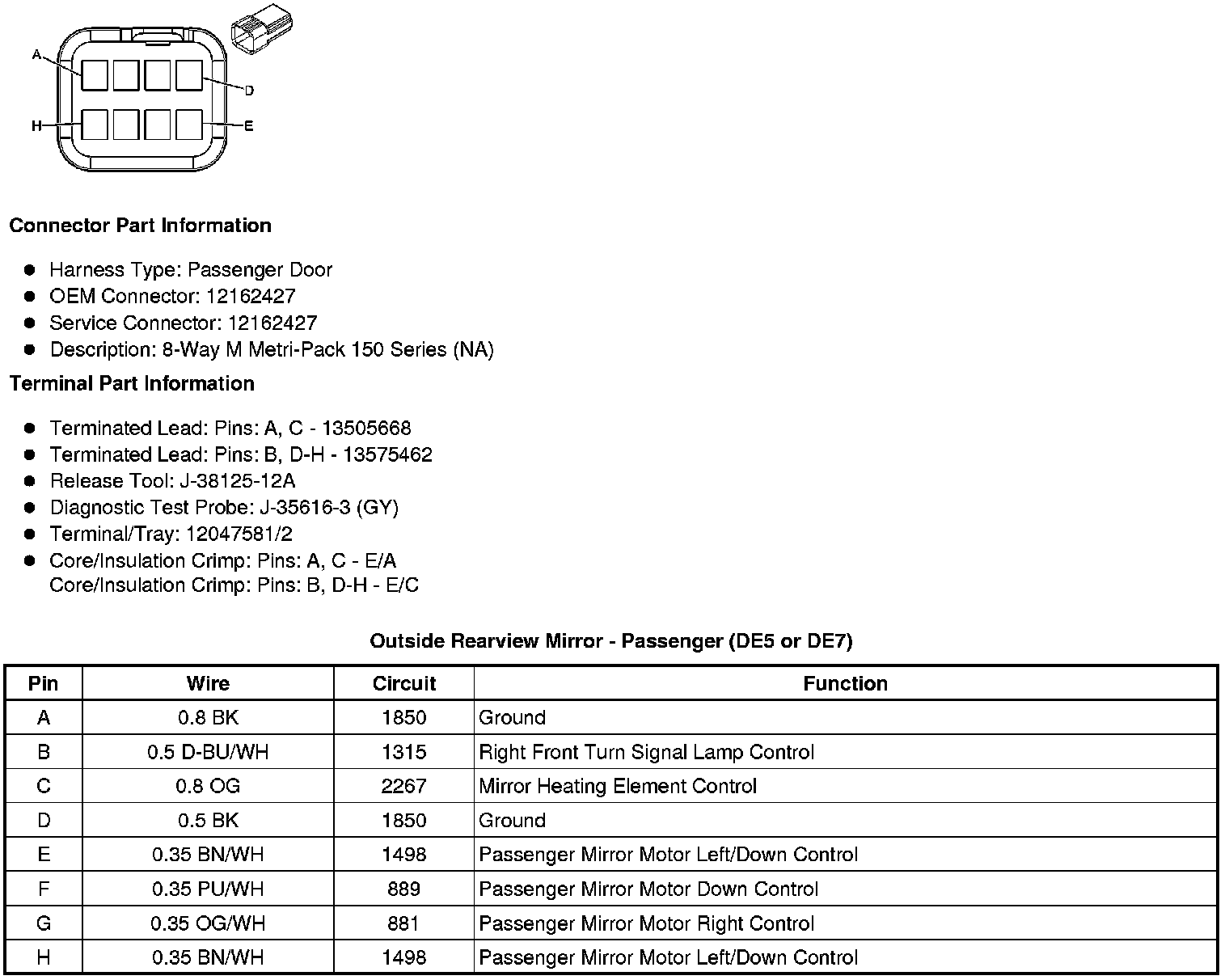

Outside Rearview Mirror - Passenger (DE5 or DE7)
