Power Window Motor

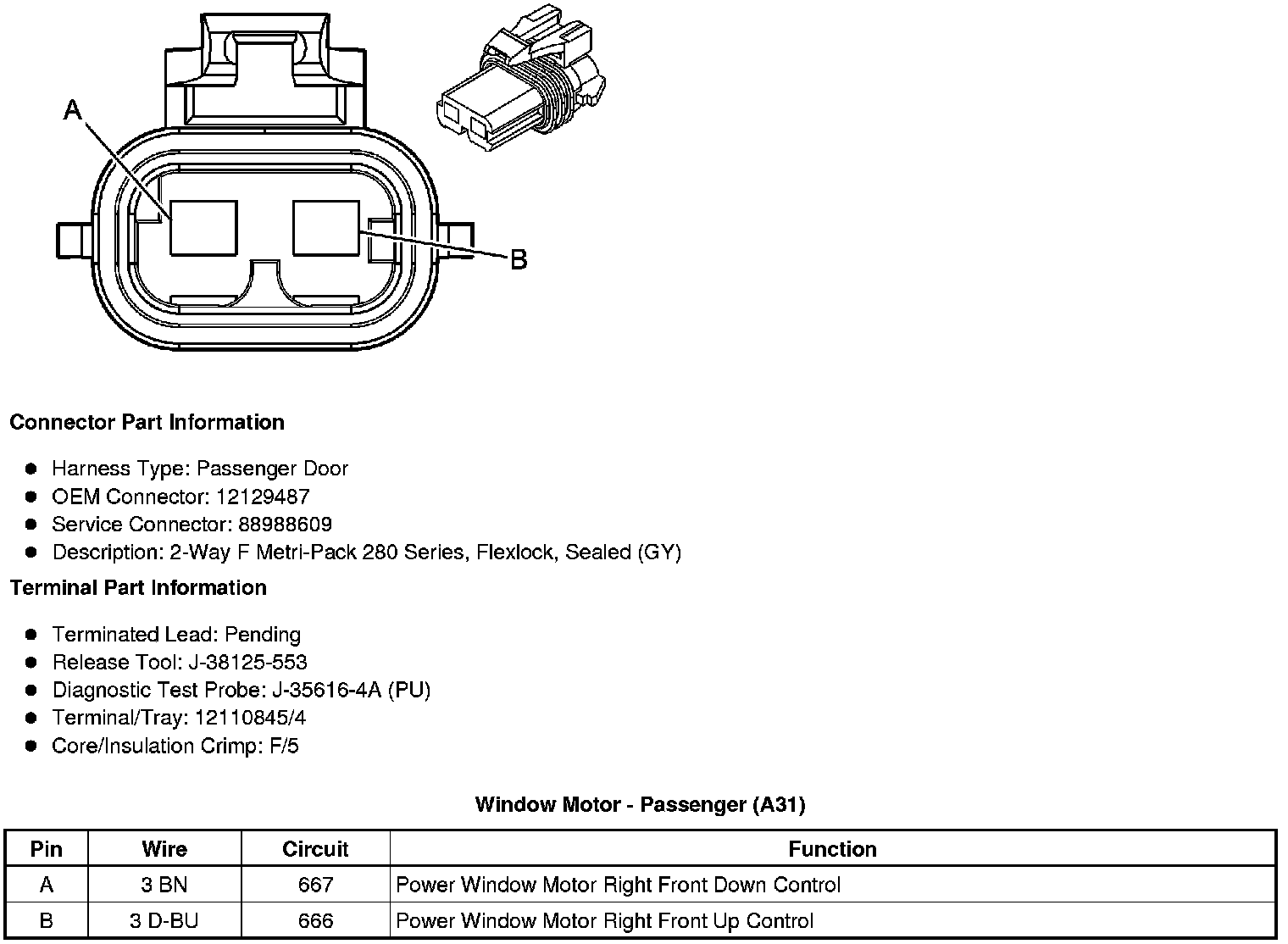

Component Connector End Views
Window Motor - Driver (A31)
Window Motor - Passenger (A31)
