Upper Steering Column

Instrument Panel/Center Console Component Views

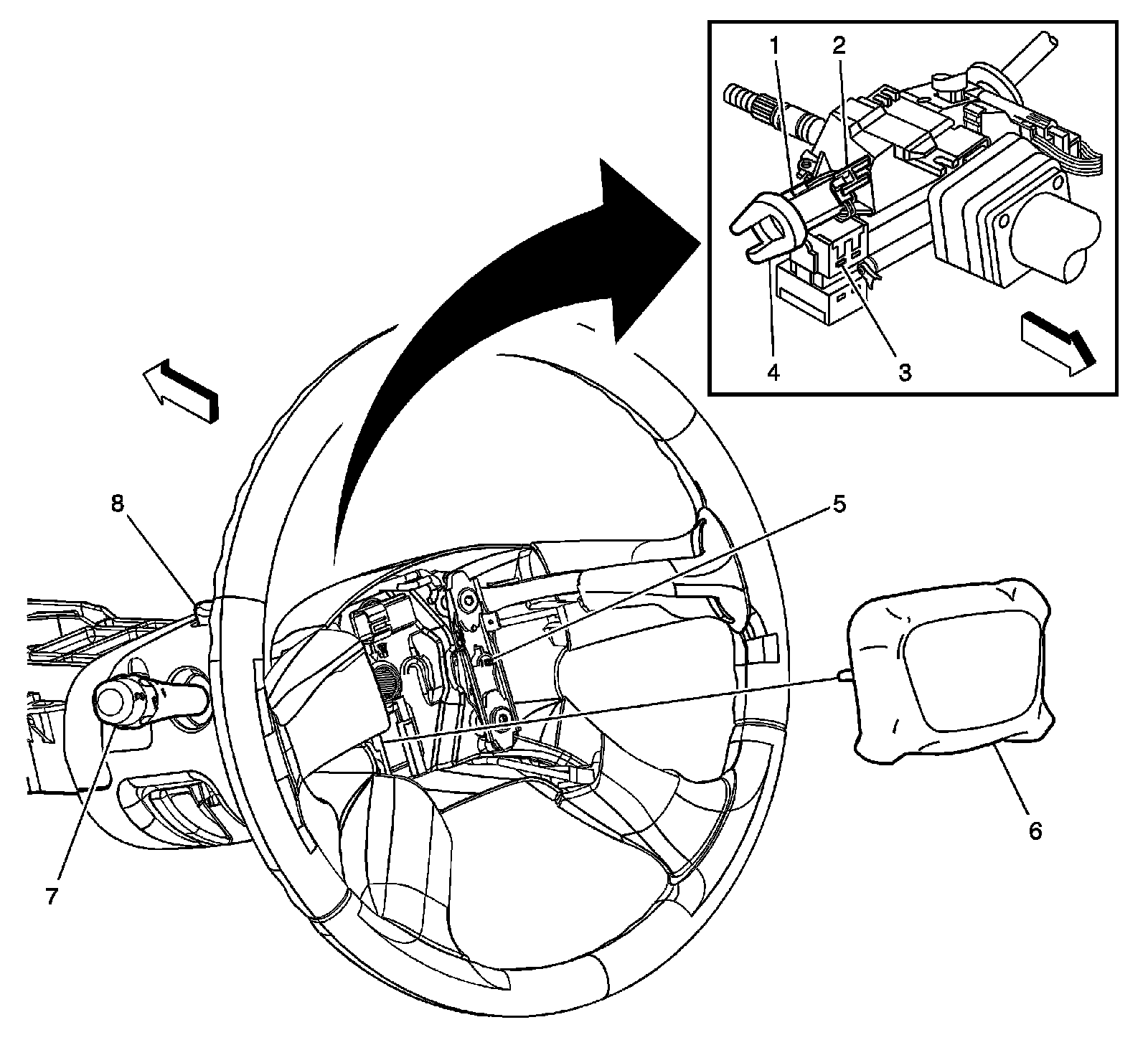

Upper Steering Column




1 - Theft Deterrent Module (TDM)
2 - Ignition Key Alarm Switch
3 - Ignition Switch
4 - Ignition Key Cylinder
5 - Horn Switch
6 - Inflatable Restraint Steering Wheel Module
7 - Turn Signal/Multifunction Switch
8 - Hazard Warning Switch
