Upper Right Side of the Engine

Powertrain Component Views

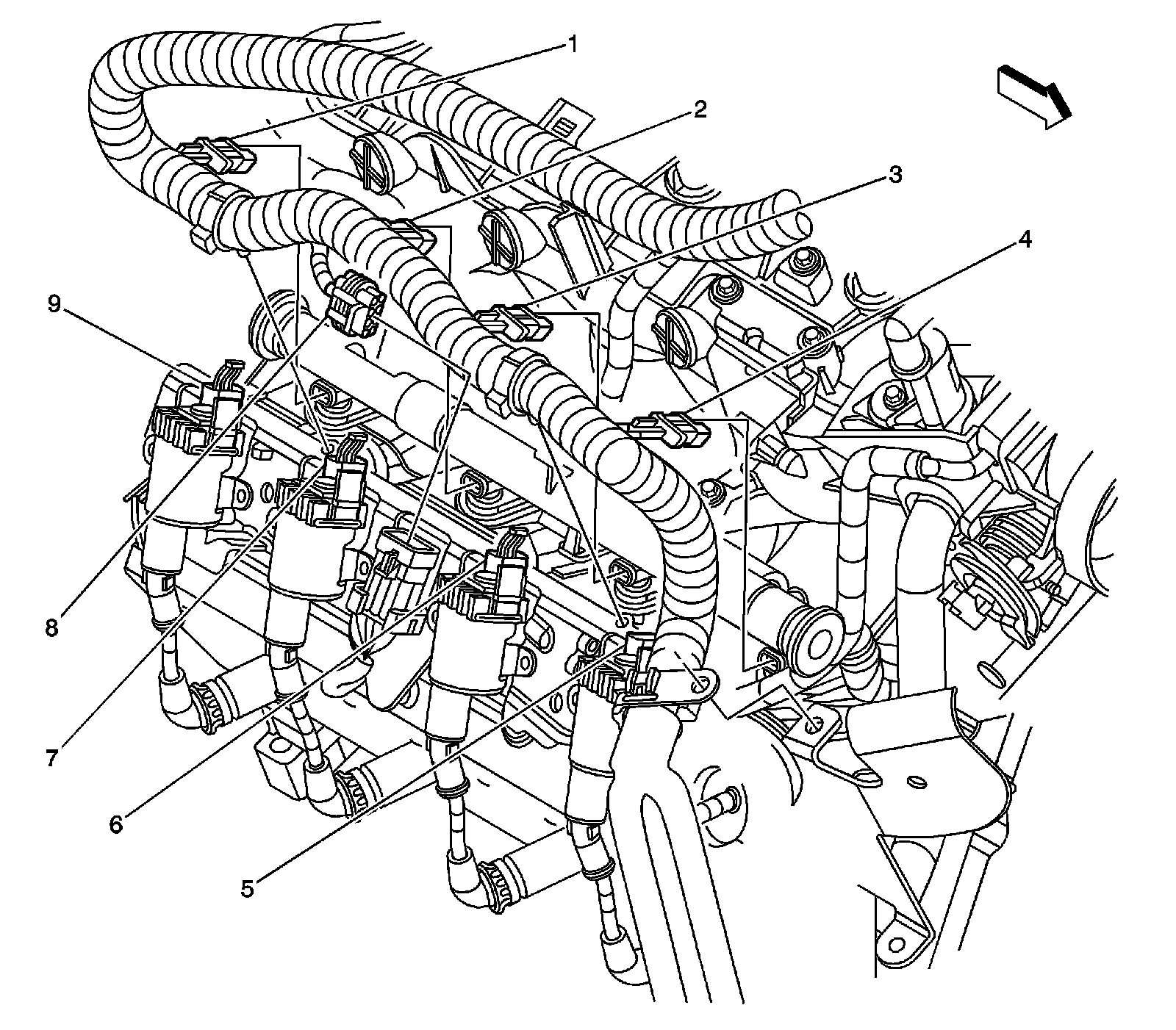

Upper Right Side of the Engine (LC8, LMF, L20, or L96)




1 - Fuel Injector 8 Connector
2 - Fuel Injector 6 Connector
3 - Fuel Injector 4 Connector
4 - Fuel Injector 2 Connector
5 - Ignition Coil 2 Connector
6 - Ignition Coil 4 Connector
7 - Ignition Coil 6 Connector
8 - X127
9 - Ignition Coil 8 Connector
