Air Flow Meter/Sensor: Diagrams




Component Connector End Views

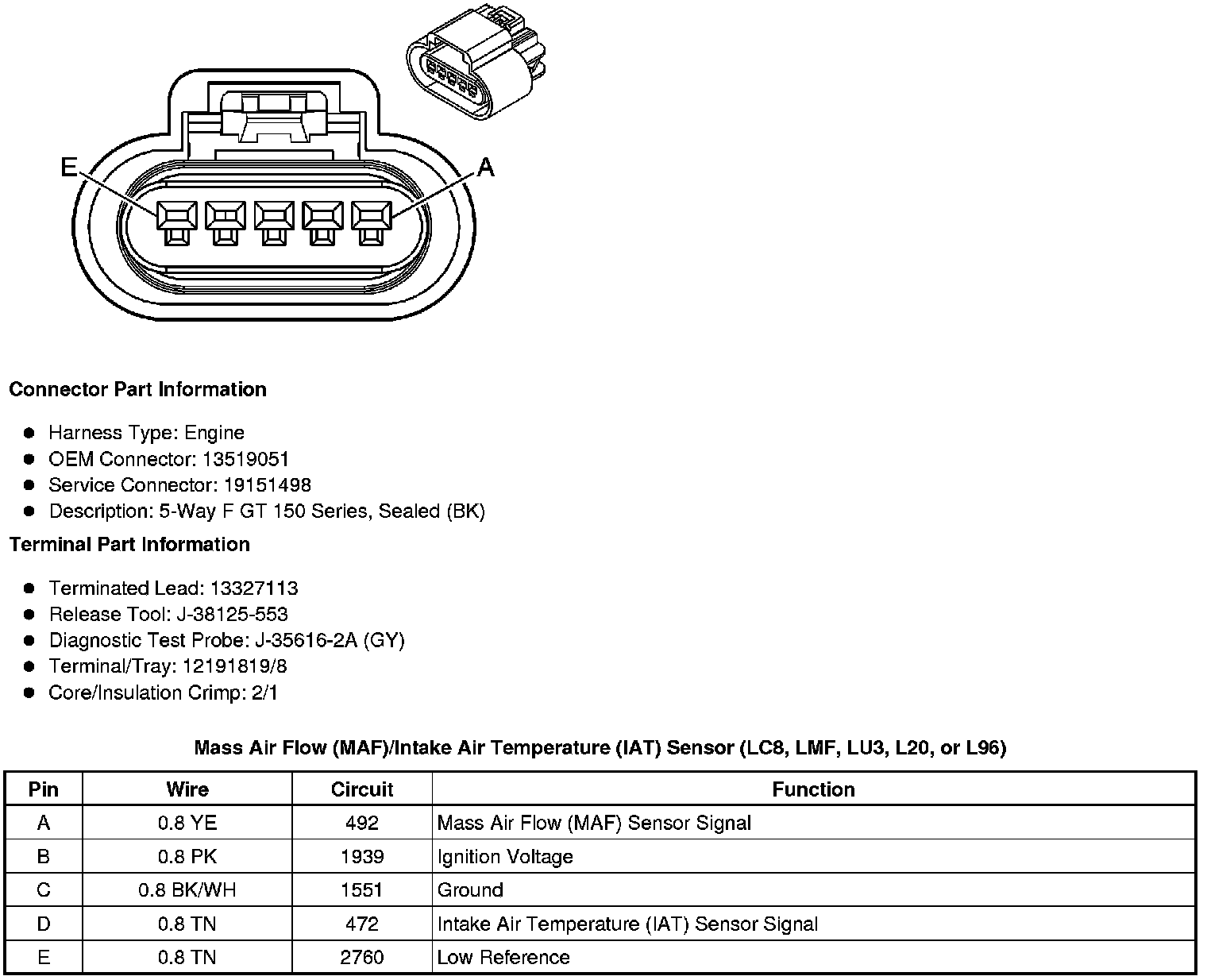

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LC8, LMF, LU3, L20, or L96)

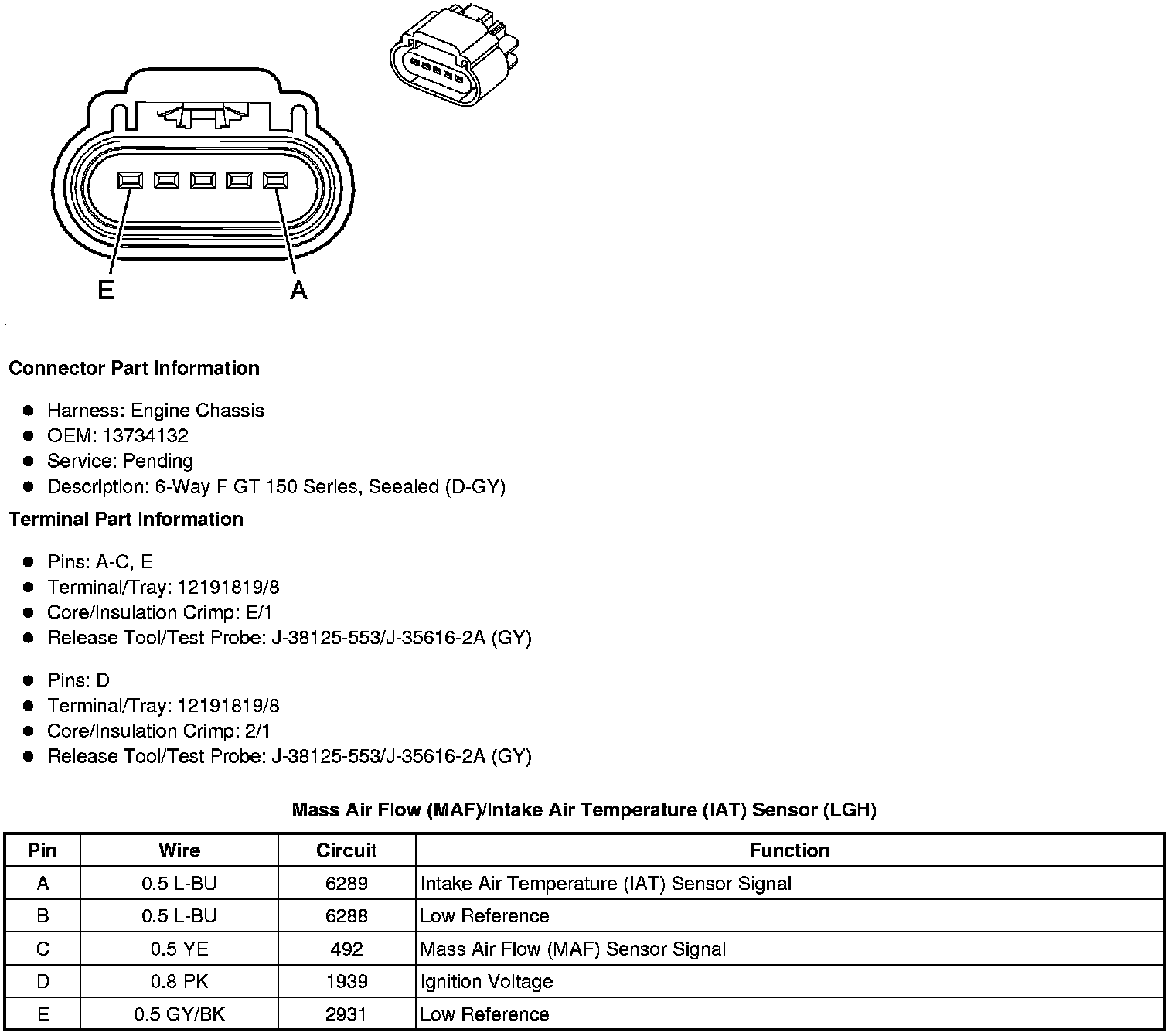

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LGH)
