Fuel Tank (Without NE7)

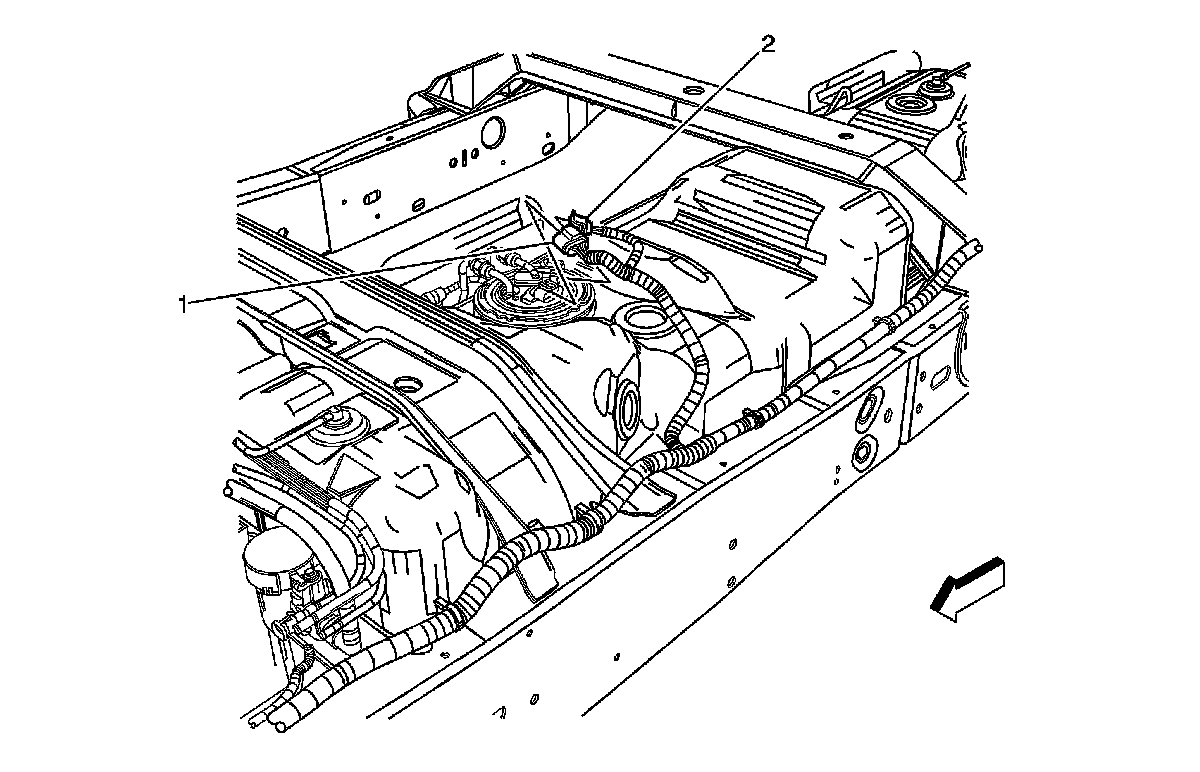

Wheels/Vehicle Underbody Component Views

Fuel Tank (without NE7)




1 - Fuel Pump and Sender Assembly Connector (Gas)/Fuel Level Sensor (Diesel)
2 - Fuel Tank Pressure (FTP) Sensor Connector (Gas)
