Knock Sensor: Locations

Powertrain Component Views

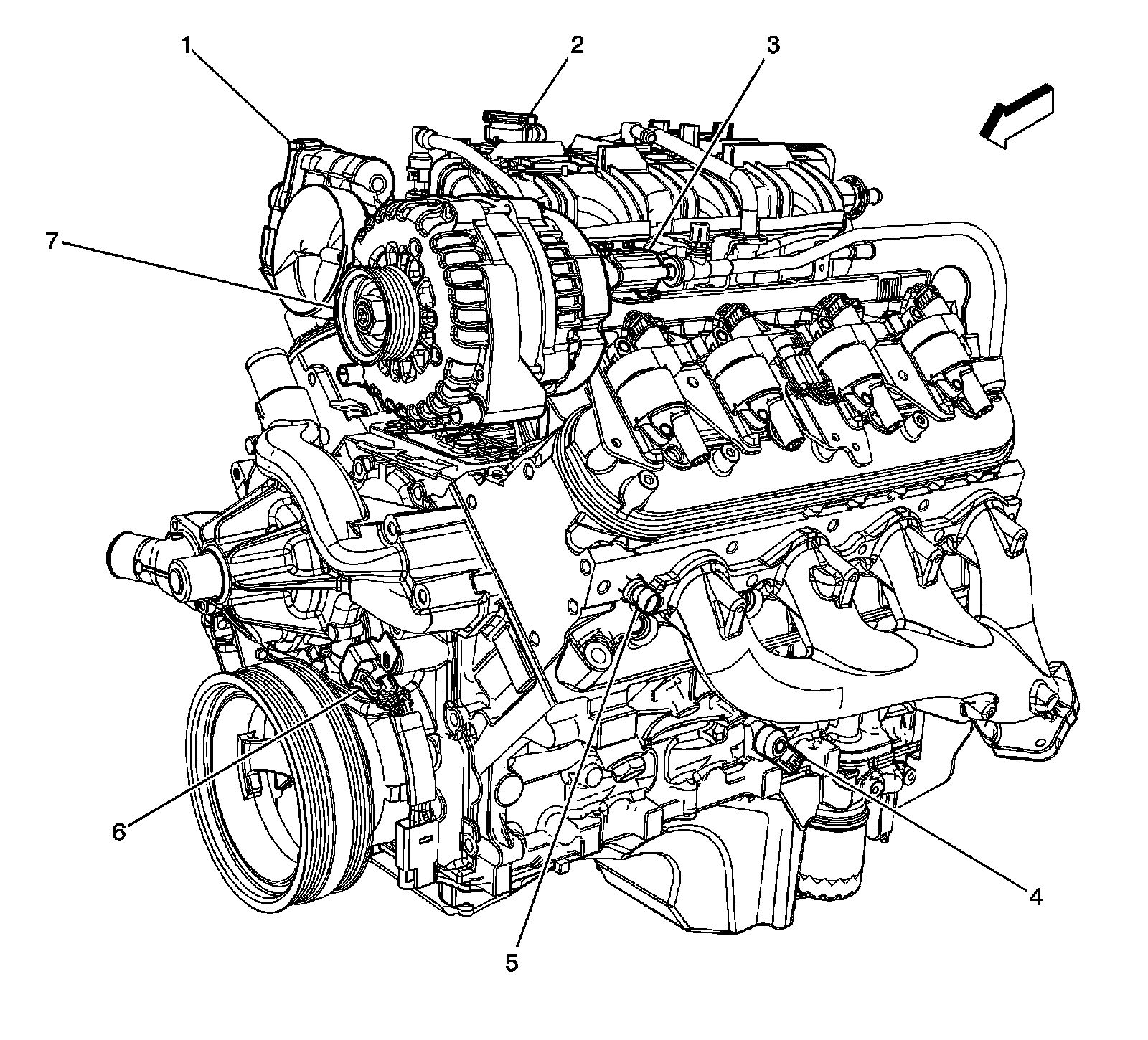

Front of the Engine Components ( LC8, LMF, L20, or L96)




1 - Throttle Body
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Knock Sensor (KS) 1
5 - Engine Coolant Temperature (ECT) Sensor
6 - Camshaft Position (CMP) Sensor
7 - Generator

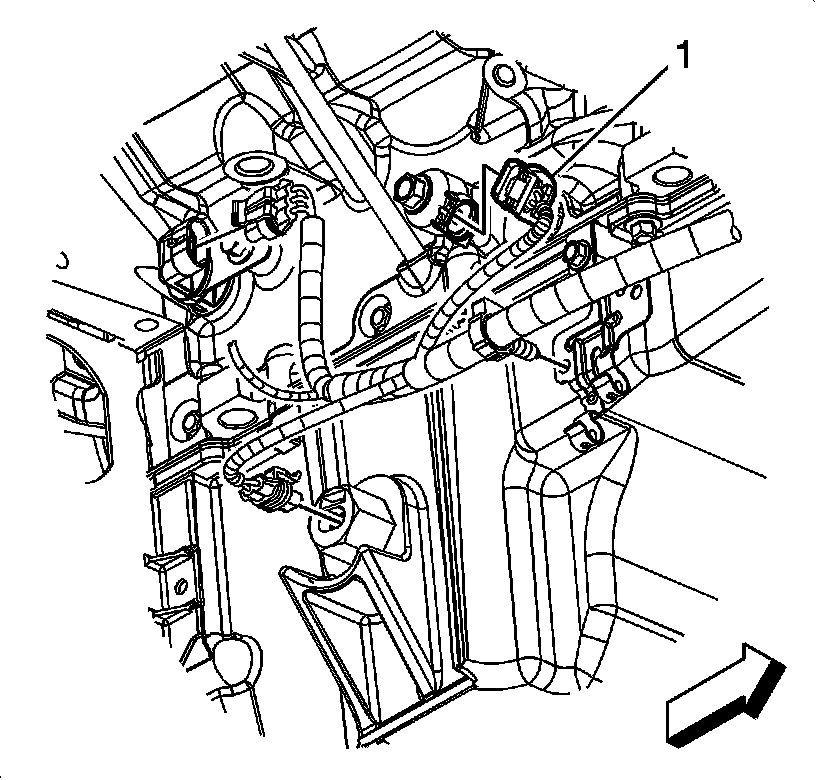

Lower Right of Engine (LC8, LMF, L20, or L96)




1 - Knock Sensor (KS) 2
