Main Relay (Computer/Fuel System)
>>
Locations
>>
Fuse Block - Body
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse Block - Body

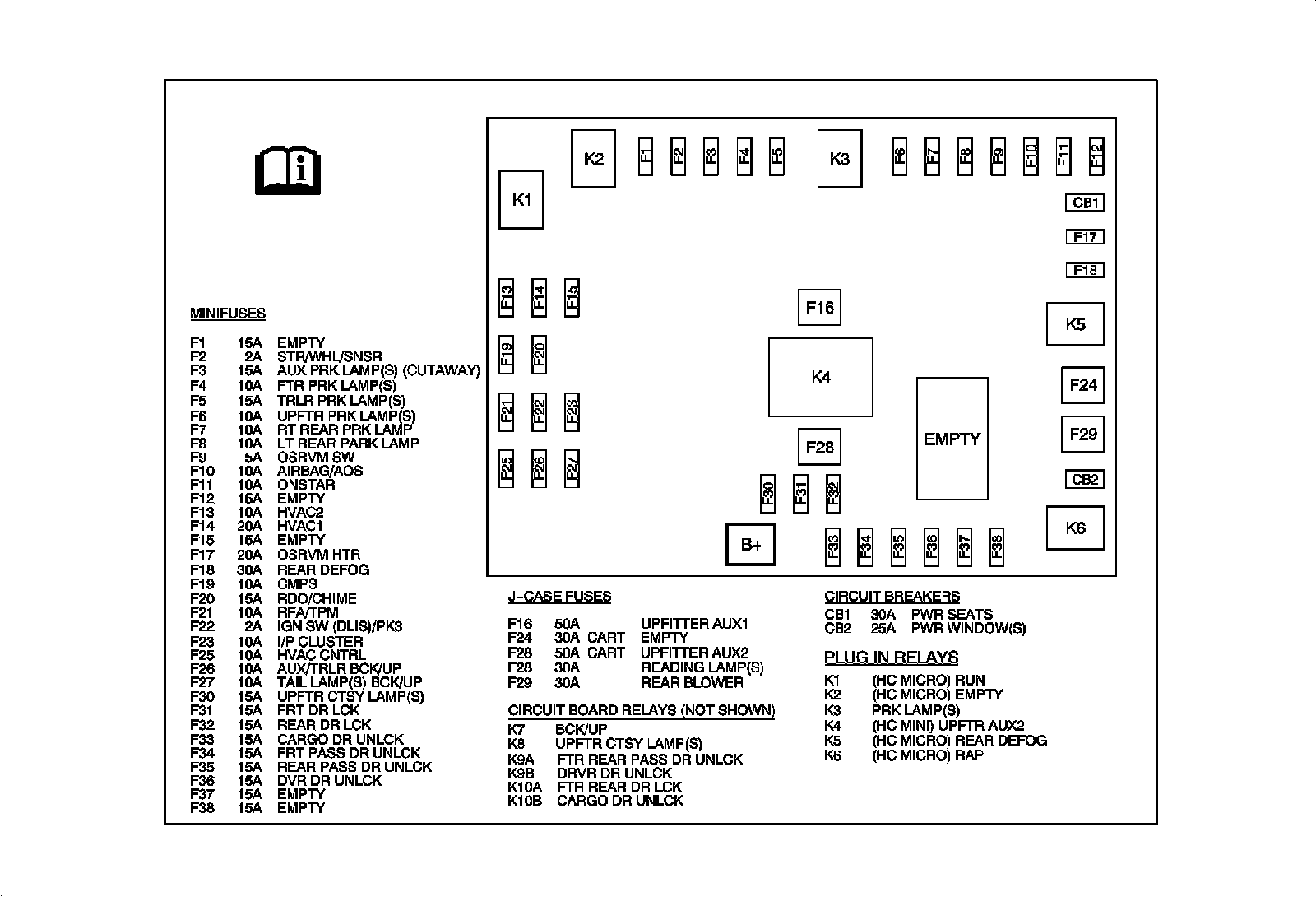

Electrical Center Identification Views

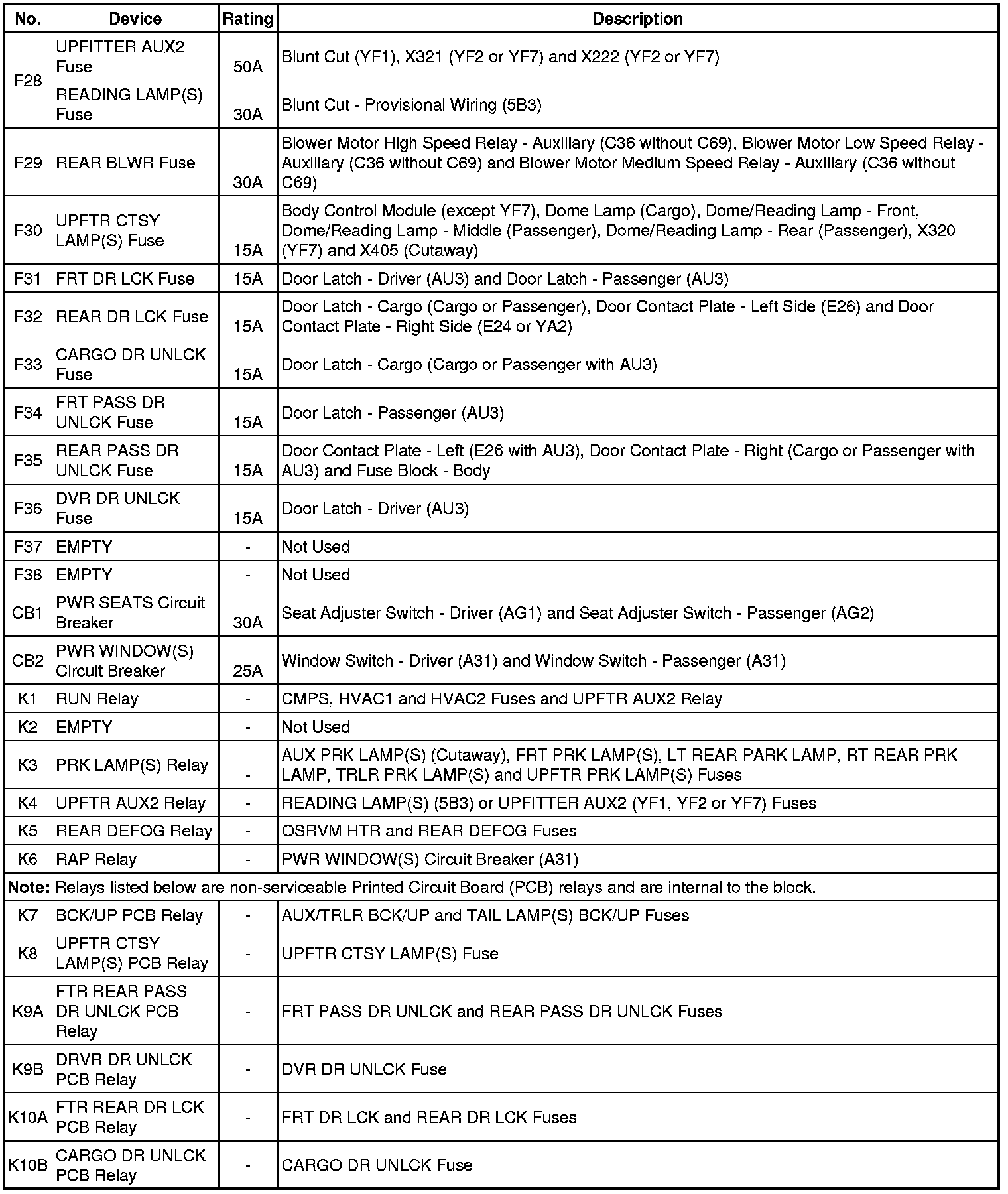

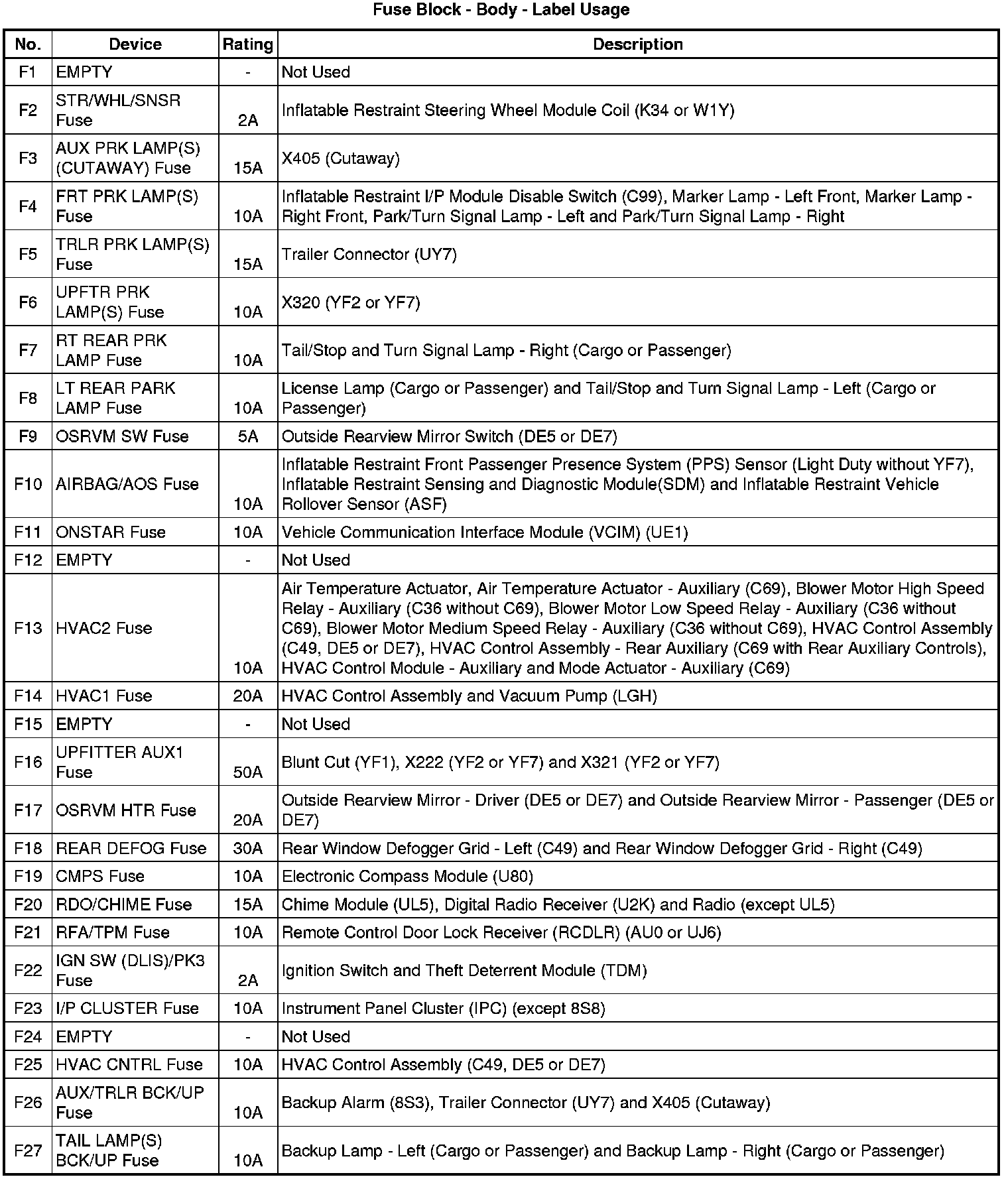

Fuse Block - Body Label
