Oil Pressure Sensor




Component Connector End Views

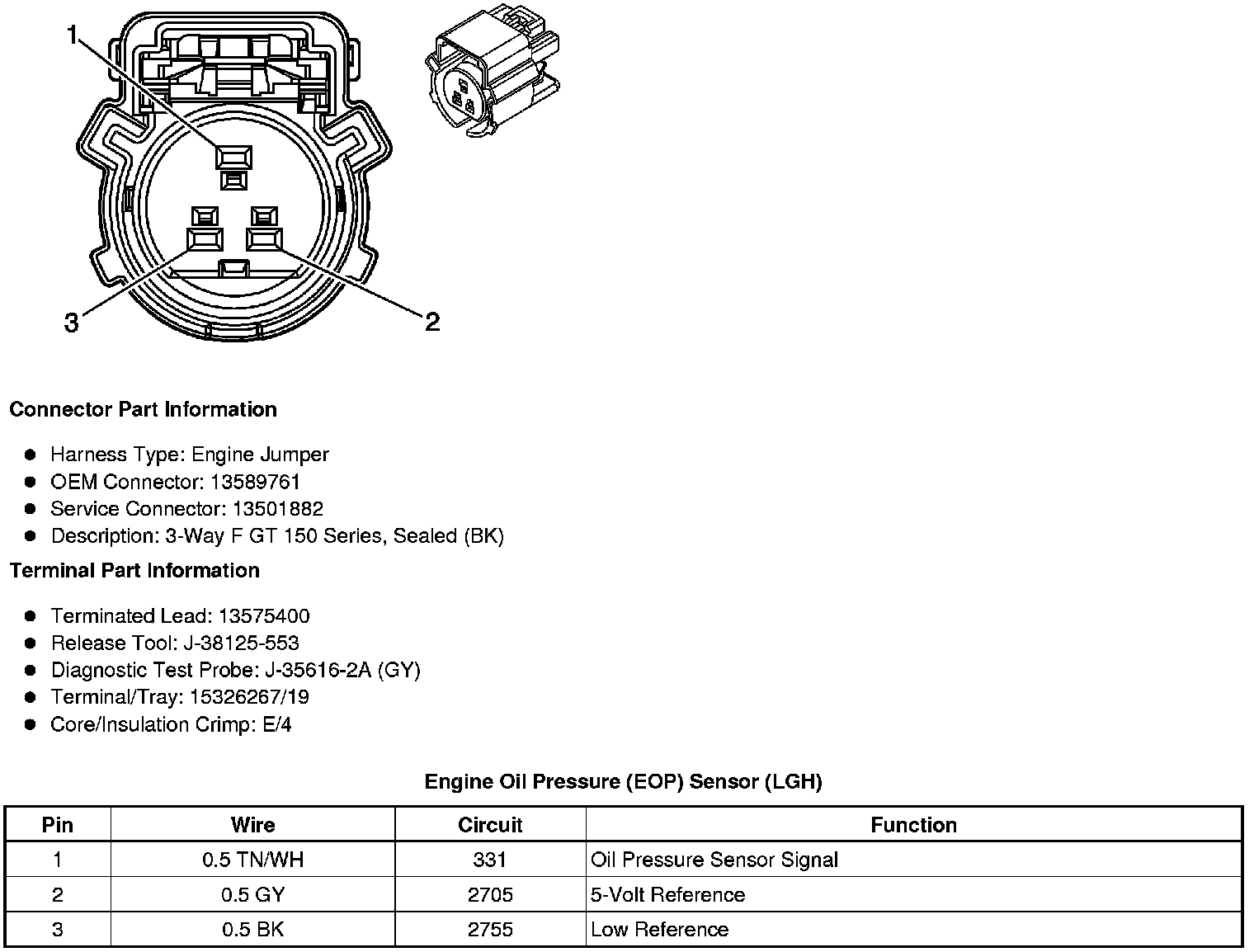

Engine Oil Pressure (EOP) Sensor (LGH)





Engine Oil Pressure (EOP) Sensor (LU3)

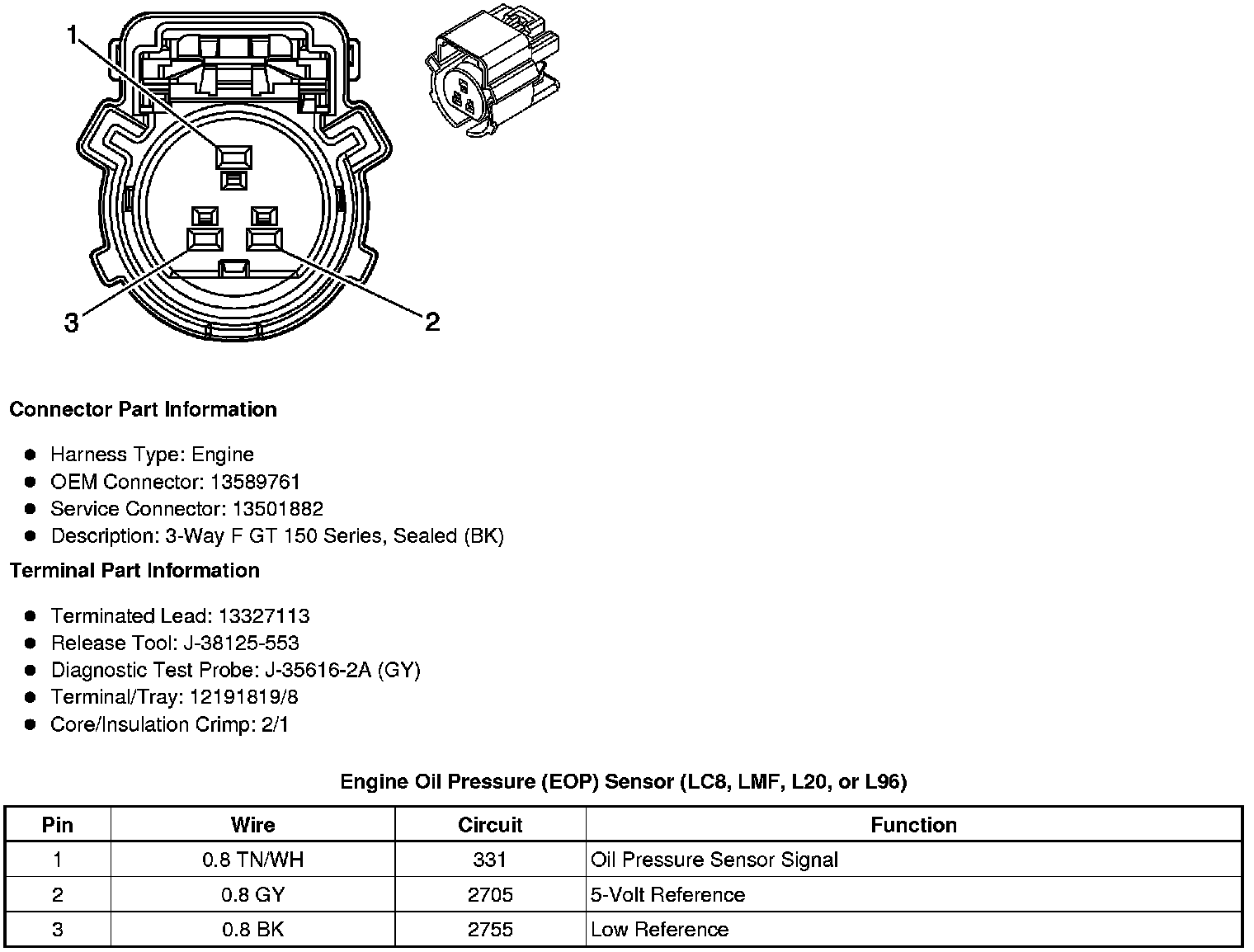

Engine Oil Pressure (EOP) Sensor (LC8, LMF, L20, or L96)
