Body Control Systems




Body Control System Schematics

BCM Power, Ground and Serial Data

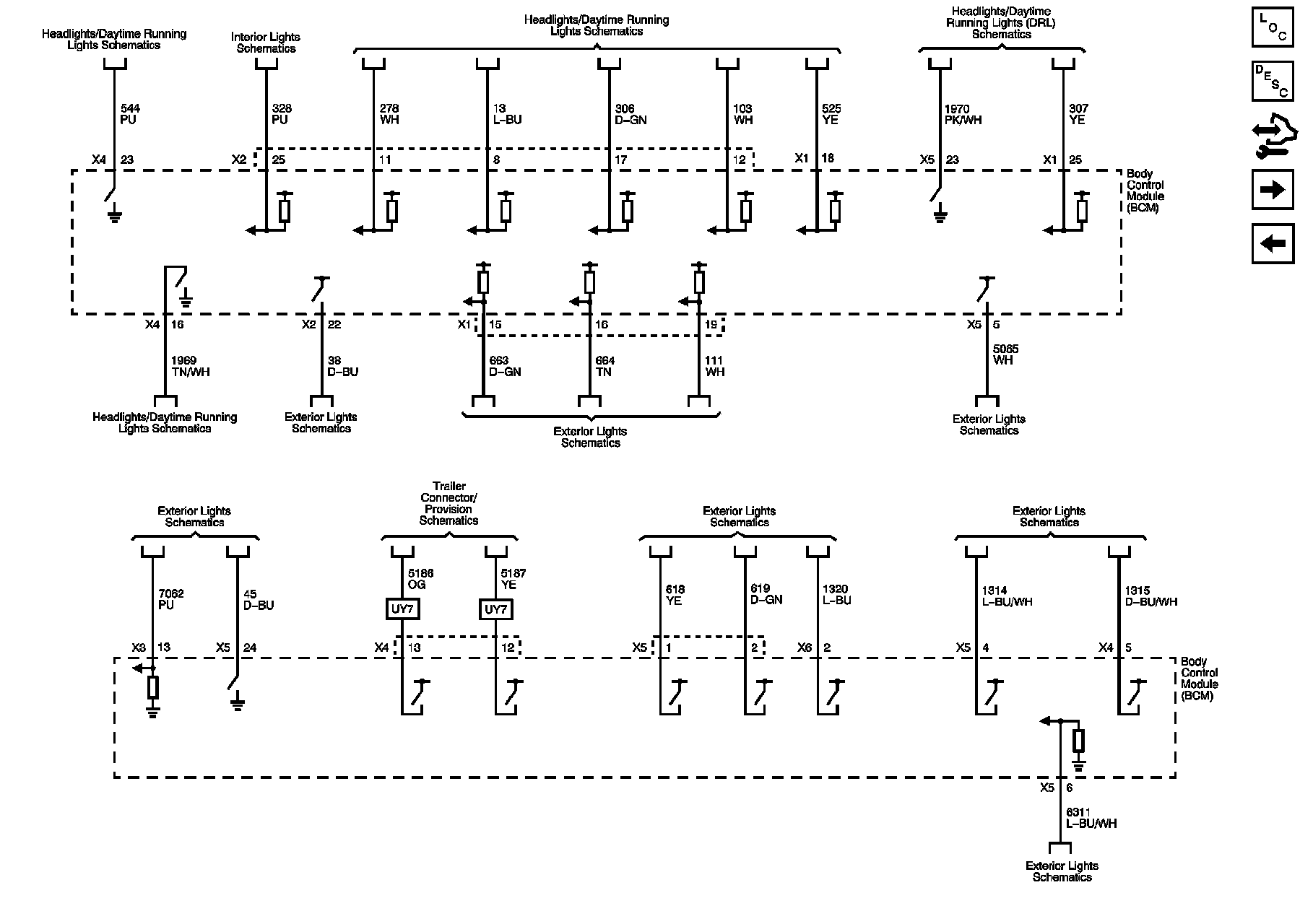

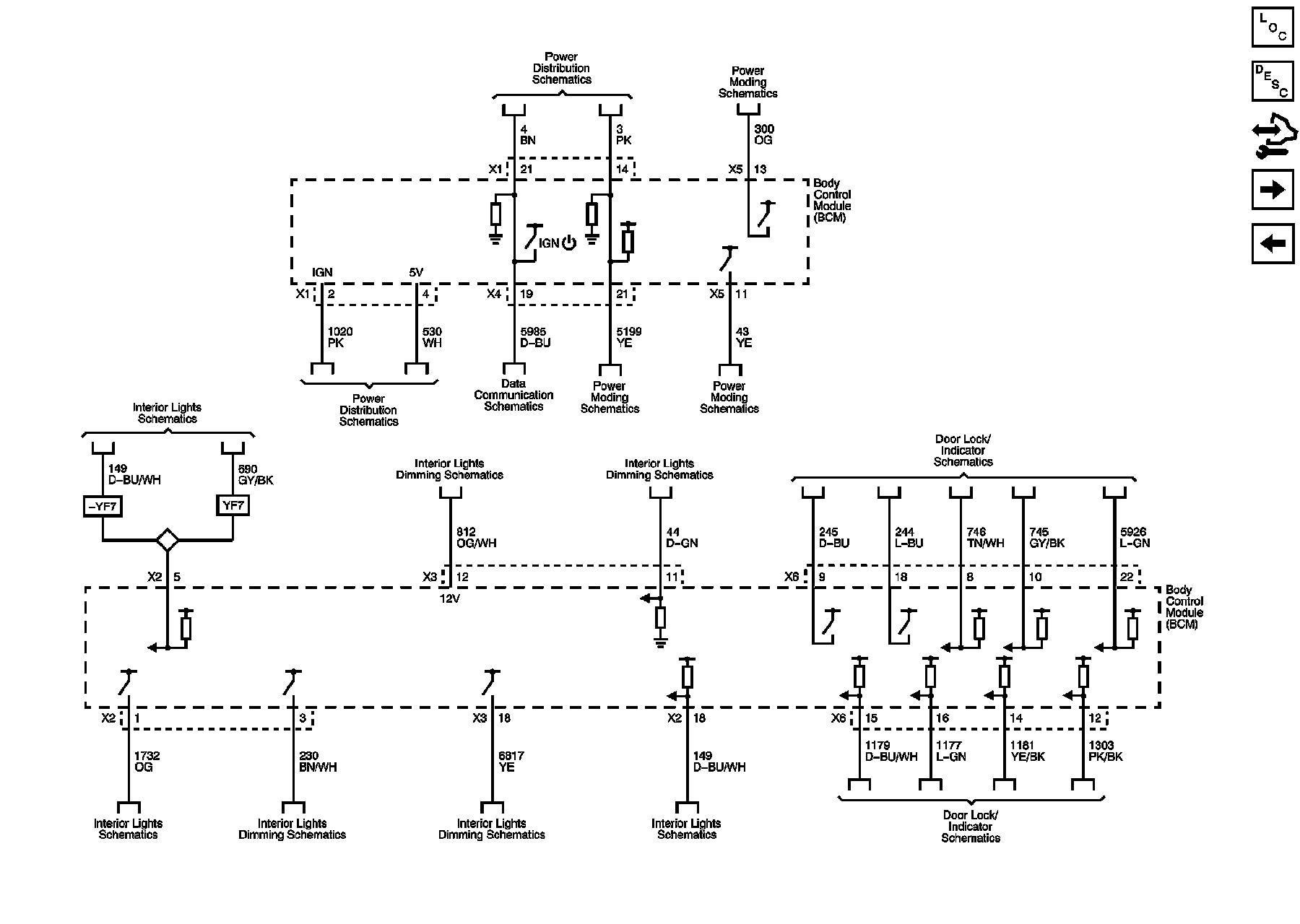

BCM Inputs and Outputs (1 of 4)





BCM Inputs and Outputs (2 of 4)





BCM Inputs and Outputs (3 of 4)





BCM Inputs and Outputs (4 of 4)
