Front of Engine Compartment

Front of Vehicle/Engine Compartment Component Views

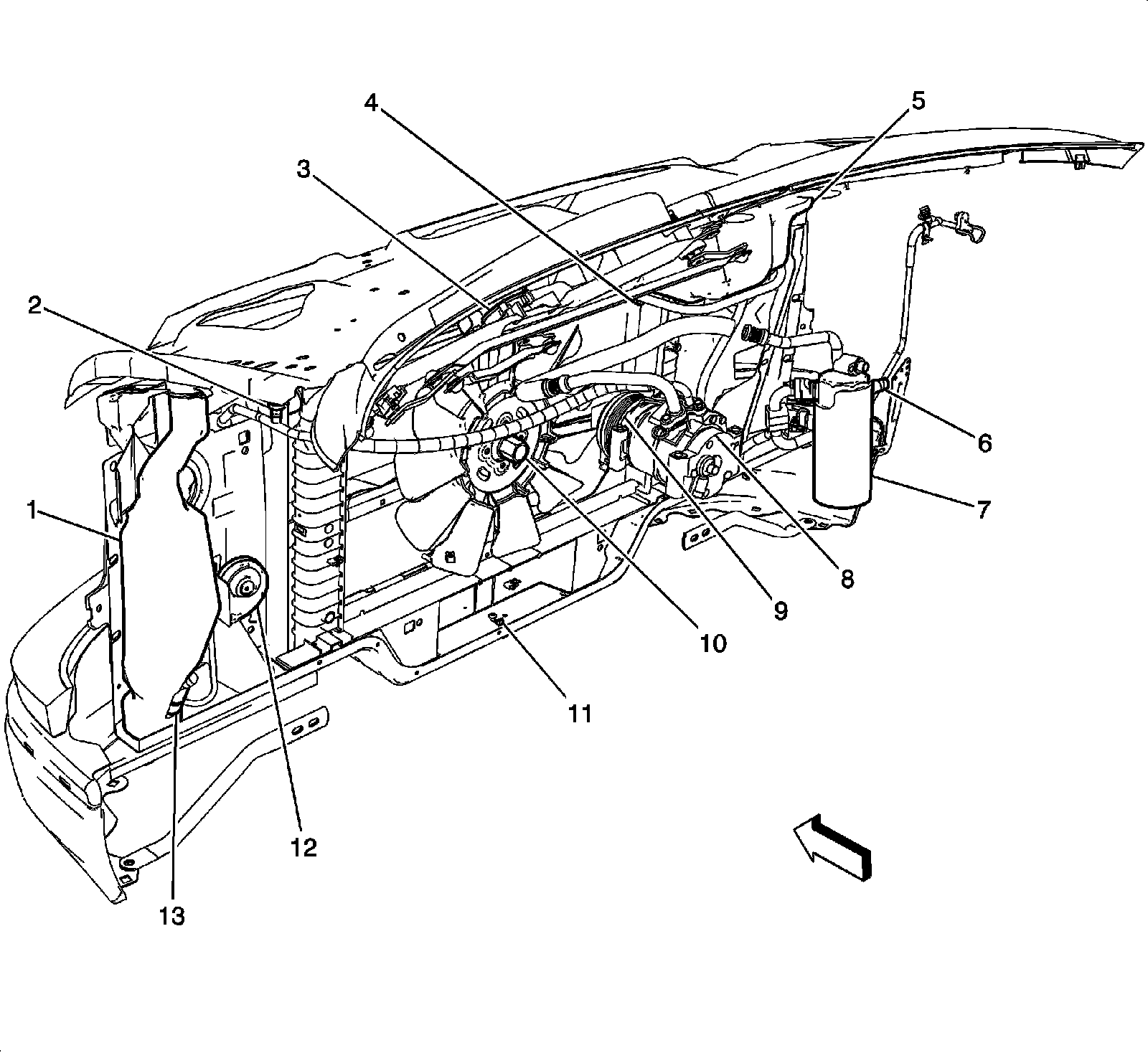

Front of Engine Compartment




1 - Windshield Washer Solvent Container
2 - A/C Refrigerant Pressure Sensor (C60)
3 - Windshield Wiper Motor
4 - Engine Coolant Level Switch (LMM)
5 - Coolant Surge Tank
6 - A/C Low Pressure Switch (C60)
7 - A/C Accumulator (C60)
8 - A/C Compressor (C60)
9 - A/C Compressor Clutch (C60)
10 - Engine Cooling Fan Clutch
11 - Inflatable Restraint Front End Sensor
12 - Horn Assembly
13 - Windshield Washer Fluid Pump
